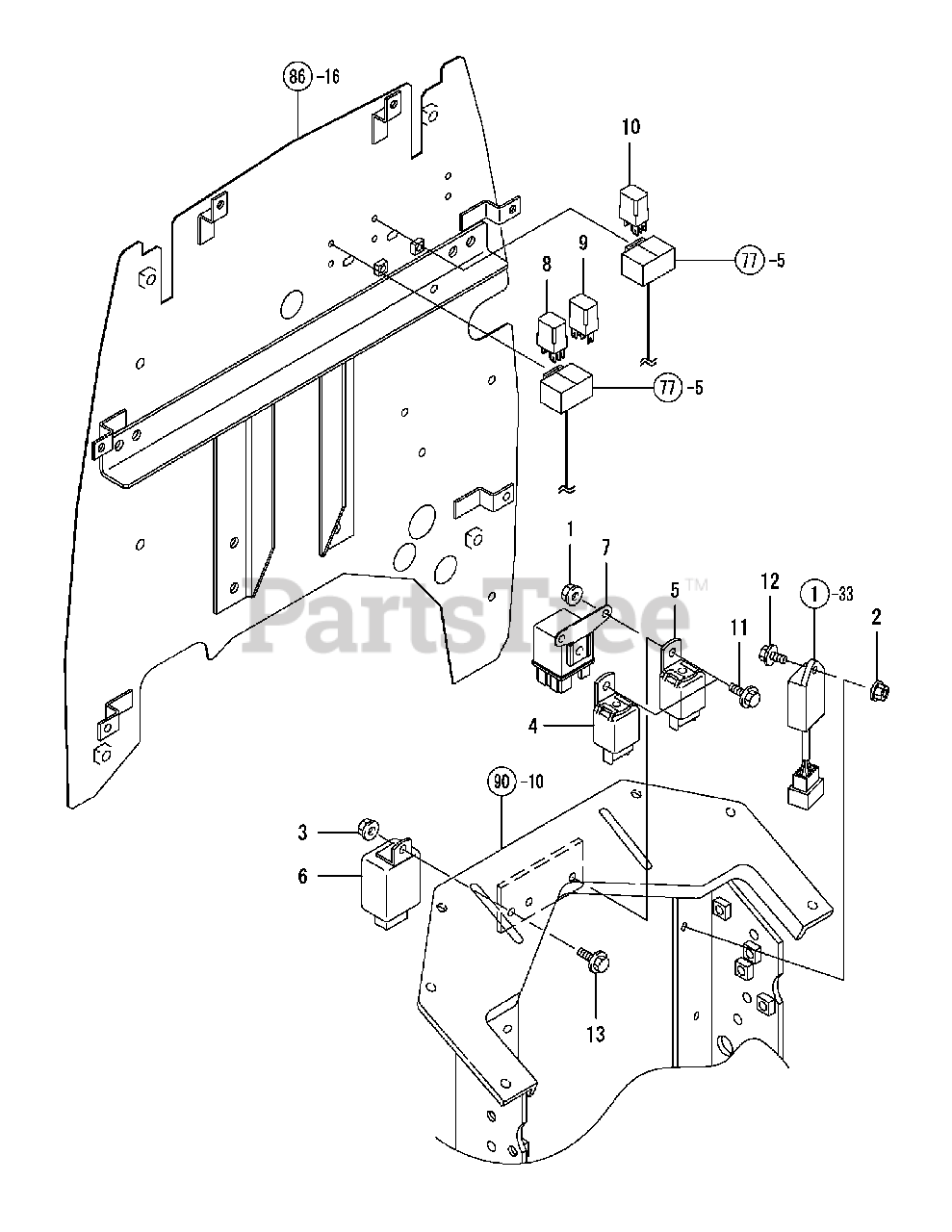

  • Title

1

Cub Cadet CY-194990-22130

NUT W/WASHER 6

$

$

Not available

2

Cub Cadet CY-194990-22130

NUT W/WASHER 6

$

$

Not available

3

Cub Cadet CY-194990-22130

NUT W/WASHER 6

$

$

Not available

4

Cub Cadet CY-198220-52180

RELAY, STARTER

$

$

Not available

5

Cub Cadet CY-198220-52180

RELAY, STARTER

$

$

Not available

6

Cub Cadet CY-1A6780-57200

FLUSHER UNIT

$

$

Not available

7

Cub Cadet CY-119650-77910

RELAY, GLOW PLUG
(Superseded to CY-119650-77911)

$

$

Not available

8

Cub Cadet CY-1K1140-82500

RELAY, STARTER

$

$

Not available

9

Cub Cadet CY-1K1140-82500

RELAY, STARTER

$

$

Not available

10

Cub Cadet CY-1K1140-82500

RELAY, STARTER

$

$

Not available

11

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

12

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

13

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

Note:1-33 Refers to ENGINE ACCESSORIES MOUNTING, Ref No. 33

$

$

Not available

Note:77-5 Refers to WIRE HARNESS, Ref No. 5

$

$

Not available

Note:86-16 Refers to FRAME,HOOD, Ref No. 16

$

$

Not available

Note:90-10 Refers to DASHBOARD, Ref No. 10

$

$

Not available
