Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Shaft Cover Parts Diagram

Ex Series Compact Tractor

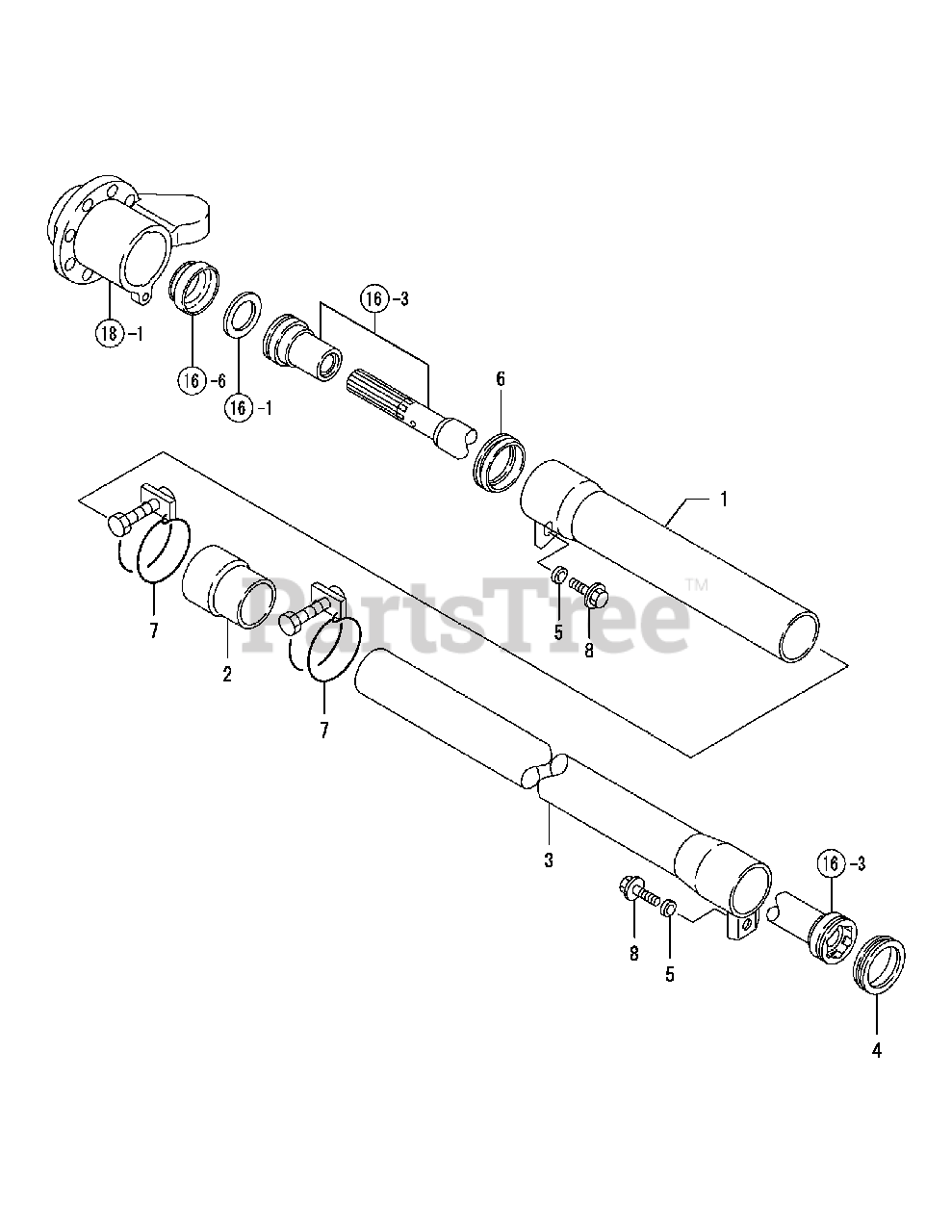

Shaft Cover Parts Diagram

  • Title

1

Cub Cadet CY-1A7780146001

COVER, FRONT SHAFT

$

$

Not available

2

Cub Cadet CY-198241-14650

BOOT, RUBBER

$

$

Not available

3

Cub Cadet CY-1A7780147001

COVER,SHAFT

$

$

Not available

4

Cub Cadet CY-198255-14740

SEAL 62 (SHAFT COVER)

$

$

Not available

5

Cub Cadet CY-1A7780-14740

COLLAR 8.1X10.5X4

$

$

Not available

6

Cub Cadet CY-198255-14760

SEAL 65 (SHAFT COVER)

$

$

Not available

7

Cub Cadet CY-23000-070000

CLAMP 70

$

$

Not available

8

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

Note:16-1 Refers to PROPELLER SHAFT, Ref No. 1

$

$

Not available

Note:16-3 Refers to PROPELLER SHAFT, Ref No. 3

$

$

Not available

Note:16-6 Refers to PROPELLER SHAFT, Ref No. 6

$

$

Not available

Note:18-1 Refers to FRONT AXLE HOUSING, Ref No. 1

$

$

Not available
