Ex450 (54AKF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Sub Control Valve Parts Diagram

Ex Series Compact Tractor

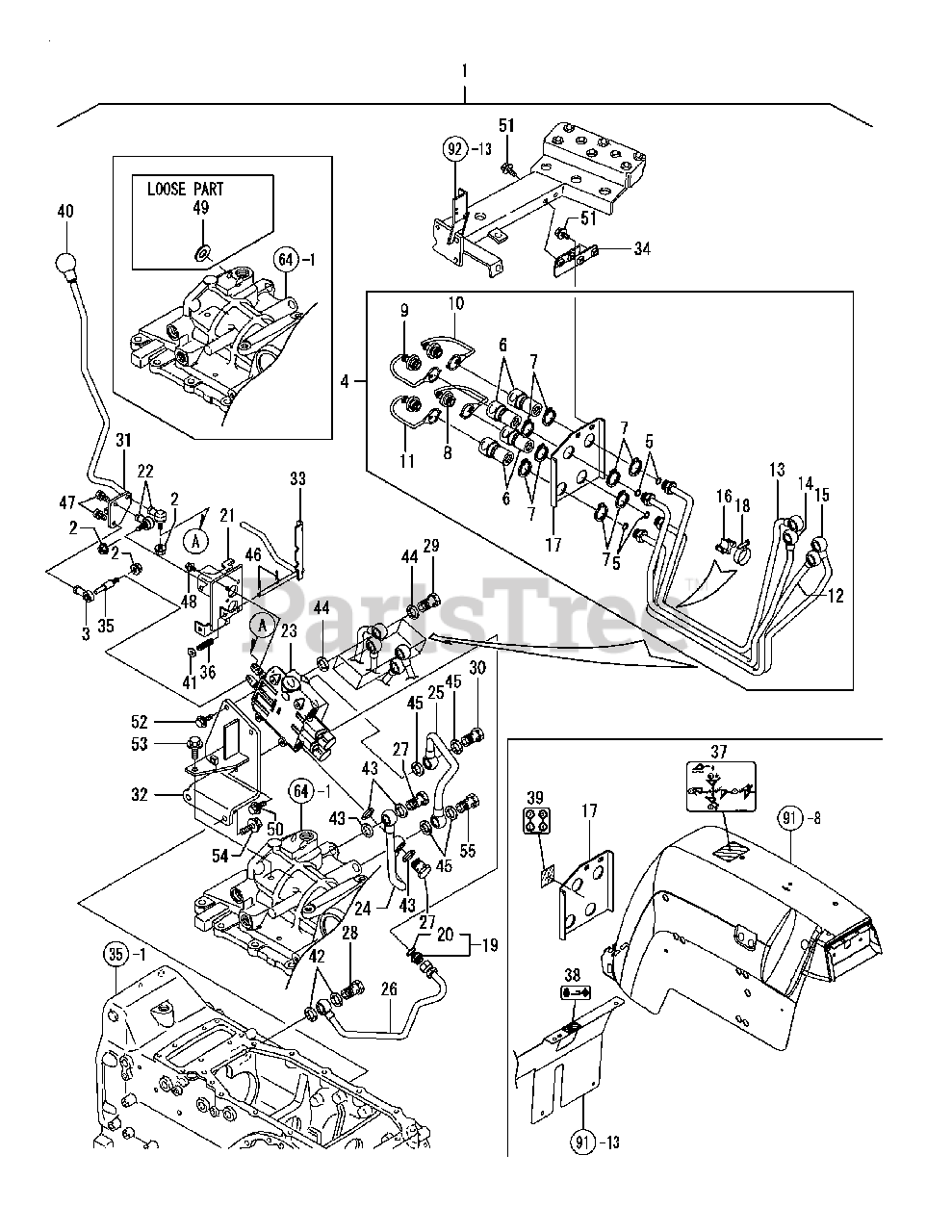

Sub Control Valve Parts Diagram

  • Title

1

Cub Cadet CY-1A8170-40400

SCV KIT

$

$

Not available

2

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

3

Cub Cadet CY-198164-27970

END, ROD 8R

$

$

Not available

4

Cub Cadet CY-1A8170-46410

SCV,LINE ASSY

$

$

Not available

5

Cub Cadet CY-194464-45930

O-RING 8-1

$

$

Not available

6

Cub Cadet CY-1A8160-46250

COUPLER,QUICK 3/8F

$

$

Not available

7

Cub Cadet CY-198240-46260

SNAP RING

$

$

Not available

8

Cub Cadet CY-1A8160-46280

PLUG, DUST RED

$

$

Not available

9

Cub Cadet CY-1A8160-46290

PLUG, DUST BLUE

$

$

Not available

10

Cub Cadet CY-1A8160-46300

PLUG, DUST YELLOW

$

$

Not available

11

Cub Cadet CY-1A8160-46310

PLUG, DUST GREEN

$

$

Not available

12

Cub Cadet CY-1A8170-46420

HP PIPE,SCV B

$

$

Not available

13

Cub Cadet CY-1A8170-46440

HP PIPE,SCV C

$

$

Not available

14

Cub Cadet CY-1A8170-46460

HP PIPE,SCV A

$

$

Not available

15

Cub Cadet CY-1A8170-46480

HP PIPE,SCV D

$

$

Not available

16

Cub Cadet CY-198220-46500

CLAMP

$

$

Not available

17

Cub Cadet CY-1A8160-46930

SUPPORT,SCV COUPLER

$

$

Not available

18

Cub Cadet CY-23000-035000

CLAMP 35

$

$

Not available

19

Cub Cadet CY-1A8170-46510

CONNECTOR,3/4UNF-3/8

$

$

Not available

20

Cub Cadet CY-194464-45930

O-RING 8-1

$

$

Not available

21

Cub Cadet CY-1A8170-46550

BKT CMP,SCV LEVER

$

$

Not available

22

Cub Cadet CY-172122-46590

ELBALL 8

$

$

Not available

23

Cub Cadet CY-1A8170-46600

SCV ASSY

$

$

Not available

24

Cub Cadet CY-1A8170-46610

HP PIPE,SCV PUMP

$

$

Not available

25

Cub Cadet CY-1A8170-46630

HP PIPE,SCV PBYD

$

$

Not available

26

Cub Cadet CY-1A8170-46650

LINE,SCV DRAINT

$

$

Not available

27

Cub Cadet CY-198245-46680

BOLT 3/4-16

$

$

Not available

28

Cub Cadet CY-198245-46680

BOLT 3/4-16

$

$

Not available

29

Cub Cadet CY-198245-46680

BOLT 3/4-16

$

$

Not available

30

Cub Cadet CY-198245-46680

BOLT 3/4-16

$

$

Not available

31

Cub Cadet CY-1A8170-46800

LEVER,SCV

$

$

Not available

32

Cub Cadet CY-1A8170-46850

BRACKET,SCV

$

$

Not available

33

Cub Cadet CY-1A8170-46900

PLATE CMP,LOCK

$

$

Not available

34

Cub Cadet CY-1A8170-46950

BKT,SCV SUPPORT

$

$

Not available

35

Cub Cadet CY-1A7880-47750

BOLT,SCV LEVER

$

$

Not available

36

Cub Cadet CY-198220-46200

SPRING

$

$

Not available

37

Cub Cadet CY-1A8170-65410

LABEL,SCV LEVER

$

$

Not available

38

Cub Cadet CY-1A8170-65420

LABEL,SCV LOCK

$

$

Currently unavailable

39

Cub Cadet CY-1A8160-65430

LABEL,SCV COUPLER

$

$

Not available

40

Cub Cadet CY-194990-85561

KNOB

$

$

Not available

41

Cub Cadet CY-22117-080000

WASHER 8

$

$

Not available

42

Cub Cadet CY-23414-190000

PACKING -19

$

$

Not available

43

Cub Cadet CY-23414-190000

PACKING -19

$

$

Not available

44

Cub Cadet CY-23414-190000

PACKING -19

$

$

Not available

45

Cub Cadet CY-23414-190000

PACKING -19

$

$

Not available

46

Cub Cadet CY-22417-250300

COTTER PIN 2.5X30

$

$

Not available

47

Cub Cadet CY-26013-080162

BOLT W/WASHER M8X16

$

$

Not available

48

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

49

Cub Cadet CY-23414-190000

PACKING -19

$

$

Not available

50

Cub Cadet CY-26014-080202

BOLT M 8X 16 PLATED

$

$

Not available

51

Cub Cadet CY-26106-080202

BOLT M 8X 20 PLATED

$

$

Not available

52

Cub Cadet CY-26106-080202

BOLT M 8X 20 PLATED

$

$

Not available

53

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

54

Cub Cadet CY-26106-100252

BOLT M10X 25 PLATED

$

$

Not available

55

Cub Cadet CY-198327-48750

BOLT S COMP

$

$

Not available

Note:35-1 Refers to TRANSMISSION CASE, Ref No. 1

$

$

Not available

Note:64-1 Refers to HYDRAULIC CYLINDER CASE, Ref No. 1

$

$

Not available

Note:91-8 Refers to FENDER, Ref No. 8

$

$

Not available

Note:91-13 Refers to FENDER, Ref No. 13

$

$

Not available

Note:92-13 Refers to STEP, Ref No. 13

$

$

Not available
