EX4500S K1 A/B (EB3) - Honda Generator, Made in Japan (SN: EB3-1120001 - EB3-9999999) BATTERY Parts Diagram

Generator, Made in Japan

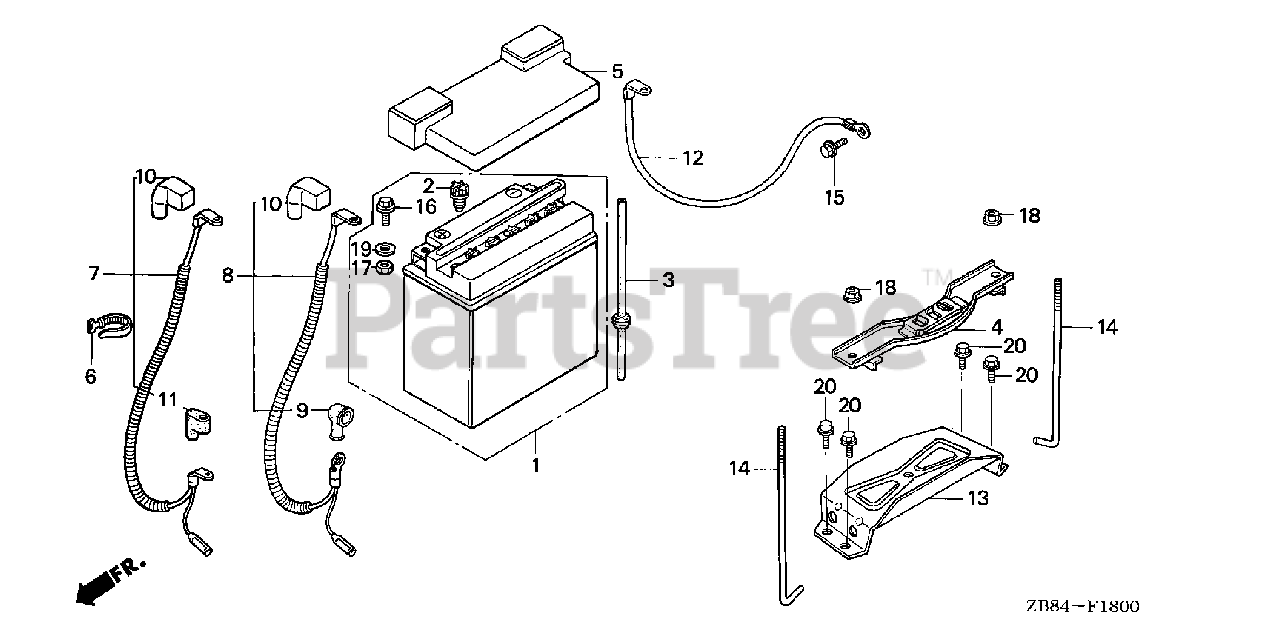

BATTERY Parts Diagram

  • Title

1

Honda 31500-ZB7-633

SEE PART DETAILS - PRI; BATTERY (YB18L-A) (YUASA)

Note: Use up to Frame SN 1124695.

$

$

Not available

1

Honda 31500-738-731

BATTERY (YB18L-A)

Note: Use from Frame SN 1124696.

$146.99

$

Usually ships in 3-6 days

0

2

Honda 31505-413-950

PLUG, FILLING

Note: Use up to Frame SN 1124695.

$

$

Not available

2

Honda 31505-437-710

PLUG, FILLING

Note: Use from Frame SN 1124696.

$

$

Not available

3

Honda 31507-ZB7-000

TUBE, BATTERY BREATHER

$11.99

$

Usually ships in 3-6 days

0

4

Honda 31512-ZB7-000

PLATE, BATTERY SETTING

$26.99

$

Usually ships in 3-6 days

0

5

Honda 31513-ZB7-000

COVER, BATTERY

$21.99

$

Usually ships in 3-6 days

0

6

Honda 32161-404-610

BAND B1, CABLE

$2.99

$

Usually ships in 3-6 days

0

7

Honda 32410-ZB7-A00

CABLE ASSY., STARTER

$29.99

$

Usually ships in 3-6 days

0

10

Honda 32412-471-000

COVER, BATTERY TERMINAL

$

$

Not available

11

Honda 32416-460-000

COVER B, MAGNETIC SWITCH

$

$

Not available

12

Honda 32430-ZB7-000

CABLE ASSY., GROUND

$19.99

$

Usually ships in 3-6 days

0

13

Honda 50319-ZB7-000

BASE, BATTERY

$60.99

$

Usually ships in 3-6 days

0

14

Honda 90001-728-760

BOLT, BATTERY SETTING

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

16

Honda 90122-463-740

BOLT, BATTERY TERMINAL

Note: Use up to Frame SN 1124695.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90122-MJ1-671

BOLT, BATTERY TERMINAL

Note: Use from Frame SN 1124696.

$

$

Not available

17

Honda 90306-413-950

NUT, BATTERY TERMINAL

Note: Use up to Frame SN 1124695.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90306-KB4-611

NUT, BATTERY TERMINAL

Note: Use from Frame SN 1124696.

$

$

Not available

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 90501-413-950

WASHER, BATTERY TERMINAL

Note: Use up to Frame SN 1124695.

$

$

Not available

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0
