EX4500S K1 A/B (EB3) - Honda Generator, Made in Japan (SN: EB3-1120001 - EB3-9999999) IGNITION COIL Parts Diagram

Generator, Made in Japan

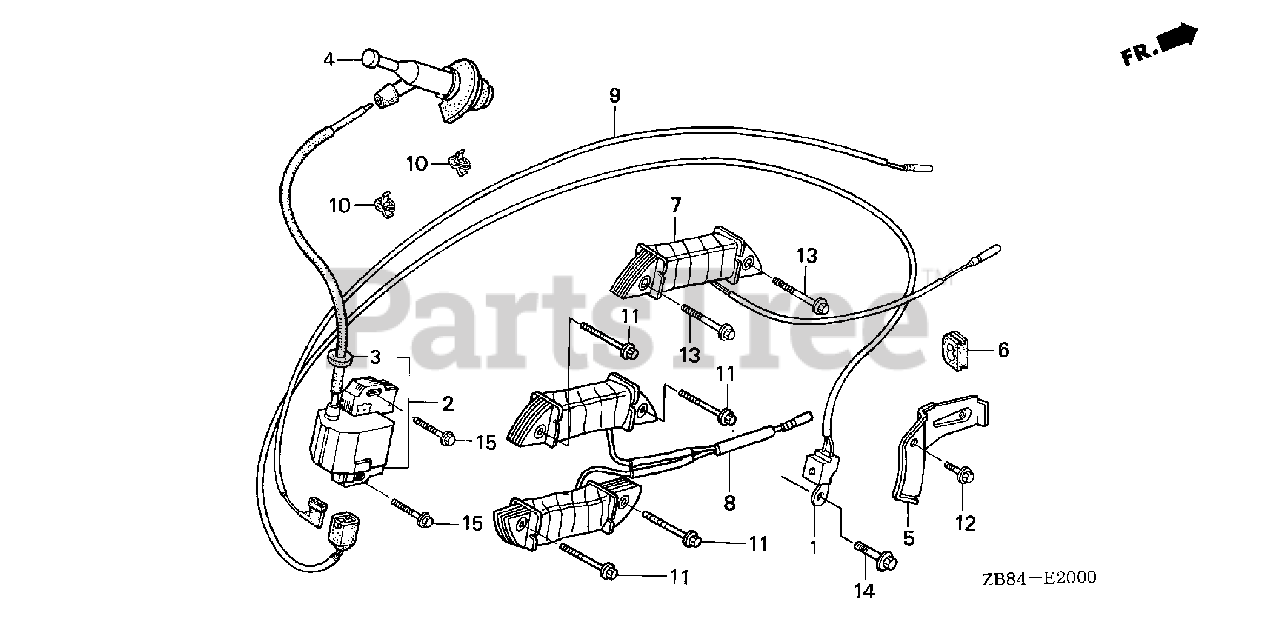

IGNITION COIL Parts Diagram

  • Title

2

Honda 30500-ZF6-W02

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$61.99

$

In Stock, Qty 5

0

4

Honda 30700-ZB7-013

CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 3966359.

$29.99

$

Usually ships in 3-6 days

0

4

Honda 30700-ZE2-811

CAP ASSY., NOISE SUPPRESSOR

Note: Use from Engine SN 3966360.

$

$

Not available

5

Honda 31511-ZE3-000

CLAMP, WIRE

$7.49

$

Usually ships in 3-6 days

0

8

Honda 31630-ZE2-E11

SEE PART DETAILS - SUP; COIL ASSY., CHARGE
(Superseded to 31630-ZE2-E12)

$

$

Not available

9

Honda 36101-ZE3-800

WIRE, STOP SWITCH (470MM)

$14.99

$

Usually ships in 3-6 days

0

11

Honda 90012-888-000

BOLT, FLANGE (6X40)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

15

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, only 4 left!

0
