EX4500S K1 A (EB3) - Honda Generator, Made in Japan (SN: EB3-1100001 - EB3-1104211) REAR HOUSING Parts Diagram

Generator, Made in Japan

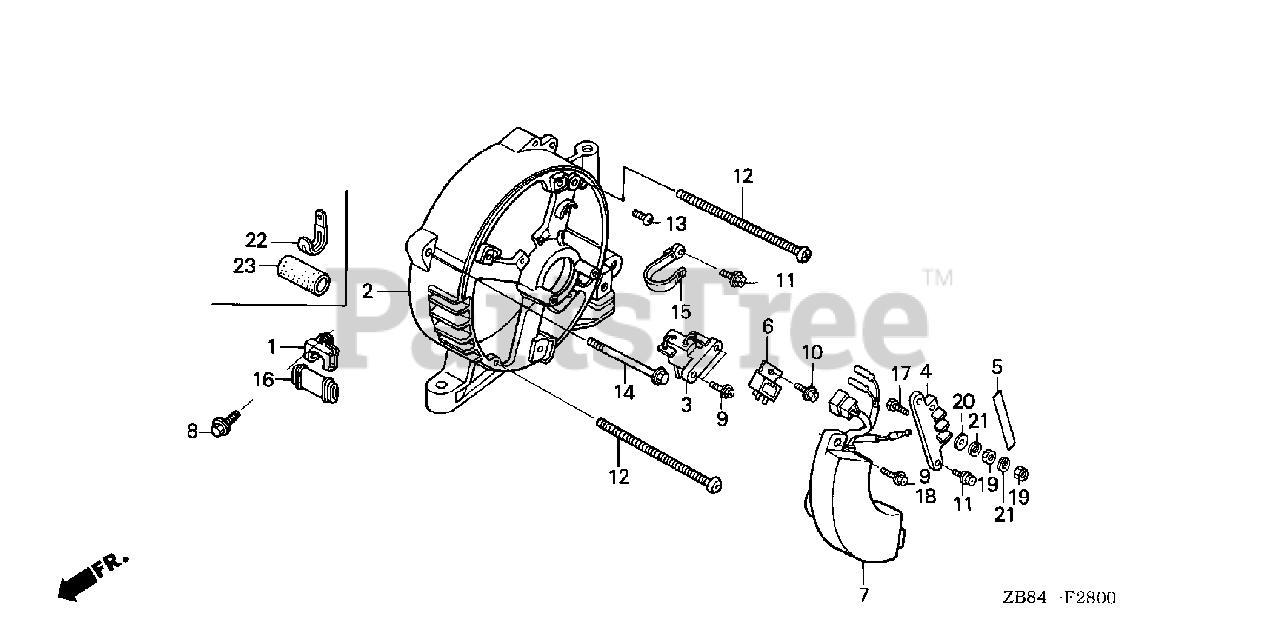

REAR HOUSING Parts Diagram

  • Title

1

Honda 30561-ZB4-000

CLIP, WIRE

Note: Use up to Frame SN 1103142.

$7.49

$

Usually ships in 3-6 days

0

2

Honda 311A0-ZB4-631

SEE PART DETAILS - PRI; HOUSING, RR.

$

$

Currently unavailable

3

Honda 31106-ZB4-003

BRUSH ASSY.

$81.99

$

In Stock, only 2 left!

0

4

Honda 31118-898-691

TERMINAL, VOLT CHANGE

$50.99

$

Usually ships in 3-6 days

0

5

Honda 31119-ZB4-631

MARK, VOLT

$4.49

$

Usually ships in 3-6 days

0

6

Honda 31720-ZB4-003

SEE PART DETAILS - SUP; DIODE, D.C.
(Superseded to 31720-ZA8-013)

$51.99

$

Usually ships in 3-6 days

0

7

Honda 32350-ZB4-A41

SEE PART DETAILS - SUP; REGULATOR ASSY., AUTOMATIC VOLTAGE
(Superseded to 32350-ZB4-A42)

$399.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

9

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90031-875-003

SCREW, TAPPING (5X12)

$3.49

$

In Stock, only 4 left!

0

11

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90091-ZC2-003

SCREW, PAN (5X195)

$13.99

$

Usually ships in 3-6 days

0

13

Honda 90102-899-003

SCREW, PAN (5X12)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90157-ZC2-003

BOLT, FLANGE (6X160)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90673-ZB4-003

TIE, CABLE

$6.49

$

Usually ships in 3-6 days

0

16

Honda 91406-ZB4-000

TUBE, CORD

Note: Use up to Frame SN 1103142.

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90031-ZD1-E31

BOLT, HEX. (5X20)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 93904-25320

SCREW, TAPPING (5X16)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

21

Honda 94111-05800

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 91406-671-000

CLIP, WIRE HARNESS

Note: Use from Frame SN 1103143.

$22.99

$

Usually ships in 3-6 days

0

23

Honda 91406-ZB3-740

TUBE, WIRE

Note: Use from Frame SN 1103143.

$5.99

$

Usually ships in 3-6 days

0
