EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) CARBURETOR (2) Parts Diagram

Generator, Made in Japan

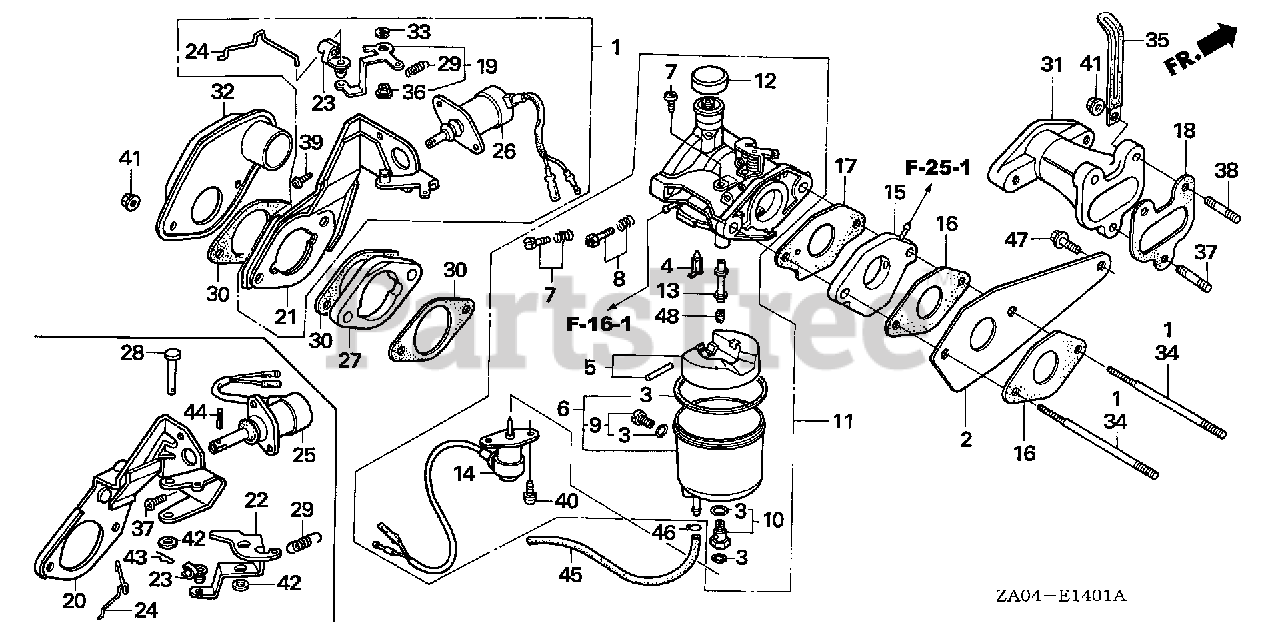

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 06162-ZA0-315

SEE PART DETAILS - PRI; STAY SET, SOLENOID (NOT AVAILABLE)

Note: Use from Engine SN 1010436.

$

$

Not available

2

Honda 11815-ZA0-000

STAY, TIMING BELT

$

$

Not available

3

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

$29.99

$

In Stock, only 2 left!

0

4

Honda 16011-KCK-910

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$51.99

$

Usually ships in 3-6 days

0

4

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$51.99

$

Usually ships in 3-6 days

0

5

Honda 16013-890-015

FLOAT SET

$

$

Not available

6

Honda 16015-ZA0-505

CHAMBER SET, FLOAT

$

$

Not available

7

Honda 16016-YA0-801

SCREW SET

$24.99

$

Usually ships in 3-6 days

0

7

Honda 16016-730-015

SCREW SET A
(Superseded to 16016-YA0-801)

$24.99

$

Usually ships in 3-6 days

0

8

Honda 16016-YA1-801

SEE PART DETAILS - PRI; SCREW SET A

$21.99

$

Usually ships in 3-6 days

0

8

Honda 16016-896-005

SEE PART DETAILS - SUP; SCREW SET A
(Superseded to 16016-YA1-801)

$21.99

$

Usually ships in 3-6 days

0

9

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$16.99

$

In Stock, only 2 left!

0

10

Honda 16028-ZA0-931

SCREW SET

$32.99

$

In Stock, only 2 left!

0

11

Honda 16100-ZA0-802

CARBURETOR ASSY. (BB50C A/B) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16148-141-881

CAP, CHOKE DUST

$7.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZA0-801

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Not available

14

Honda 16200-890-005

VALVE ASSY., SOLENOID

$

$

Not available

15

Honda 16210-ZA0-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

16

Honda 16212-ZA0-306

GASKET, INSULATOR

$2.99

$

In Stock, only 1 left!

0

17

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$3.49

$

In Stock, Qty 18

0

17

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 18

0

18

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$3.49

$

In Stock, Qty 8

0

19

Honda 16250-ZA0-010

LEVER, SOLENOID CHOKE (NOT AVAILABLE)

Note: Use from Engine SN 1010436.

$8.99

$

Usually ships in 3-6 days

0

20

Honda 16261-ZA0-010

STAY, SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN 1010435.

$

$

Currently unavailable

21

Honda 16261-ZA0-020

STAY, SOLENOID

Note: Use from Engine SN 1010436.

$

$

Not available

22

Honda 16262-ZA0-000

LEVER, CHOKE SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN 1010435.

$

$

Not available

23

Honda 16263-ZA0-000

JOINT, ROD

$5.99

$

In Stock, only 2 left!

0

24

Honda 16264-ZA0-000

ROD, CHOKE (NOT AVAILABLE)

$

$

Not available

25

Honda 16265-880-023

SEE PART DETAILS - SUP; SOLENOID, CHOKE (N/A: USE ALTERNATE P/N 06162-ZA0-315)

Note: Use up to Engine SN 1010435.

$

$

Not available

26

Honda 16265-880-033

SEE PART DETAILS - PRI; SOLENOID, CHOKE (NA USE ALT:06162-ZA0-315)

Note: Use from Engine SN 1010436.

$

$

Not available

27

Honda 16266-ZA0-000

SPACER (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 16267-ZA0-010

PIN, CHOKE SOLENOID

Note: Use up to Engine SN 1010435.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 16268-893-000

SPRING, CHOKE RETURN

$4.99

$

In Stock, Qty 8

0

30

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, Qty 7

0

30

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, Qty 7

0

31

Honda 17100-ZA0-000

MANIFOLD, IN. (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 17214-ZA0-810

PIPE, AIR IN. (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 38689-680-960

E-RING (4MM)

Note: Use from Engine SN 1010436.

$4.49

$

Usually ships in 3-6 days

0

34

Honda 90045-ZA0-010

BOLT, STUD (8X113)

$

$

Not available

35

Honda 91406-166-000

CLIP, WIRE

$5.99

$

Usually ships in 3-6 days

0

36

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

Note: Use from Engine SN 1010436.

$3.99

$

Usually ships in 3-6 days

0

37

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 92700-06035

BOLT, STUD (6X35)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, only 3 left!

0

40

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 16

0

41

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

42

Honda 94101-05000

WASHER, PLAIN (5MM)

Note: Use up to Engine SN 1010435.

$1.49

$

In Stock, only 2 left!

0

43

Honda 94251-05000

PIN, LOCK (5MM)

Note: Use up to Engine SN 1010435.

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94305-20082

PIN, SPRING (2X8)

Note: Use up to Engine SN 1010435.

$1.99

$

Usually ships in 3-6 days

0

45

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X320)

$34.99

$

In Stock, only 2 left!

0

46

Honda 95002-02070

CLIP, TUBE (B7)

$2.99

$

In Stock, only 2 left!

0

47

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-08)

$2.49

$

In Stock, Qty 20+

0

47

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

48

Honda 99101-124-0900

JET, MAIN (#90)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

48

Honda 99101-124-0920

JET, MAIN (#92)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

48

Honda 99101-124-0950

JET, MAIN (#95)

$15.99

$

Usually ships in 3-6 days

0
