EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) FRAME PIPE (2) Parts Diagram

Generator, Made in Japan

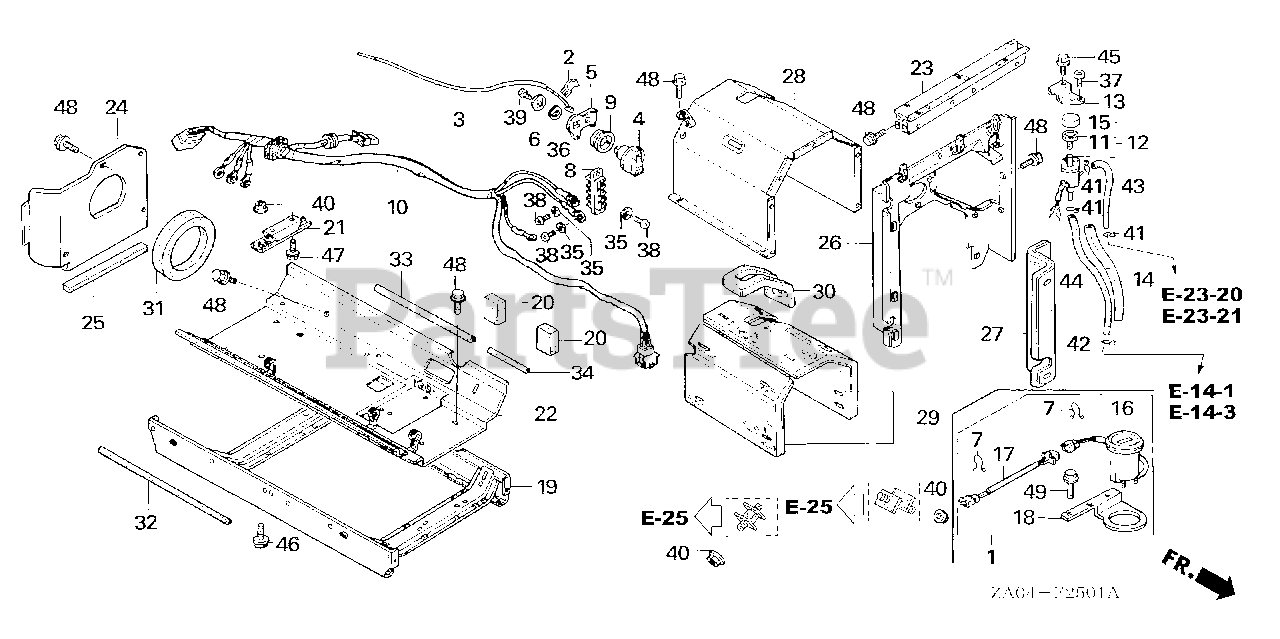

FRAME PIPE (2) Parts Diagram

  • Title

1

Honda 06390-ZA0-800

METER KIT, HOUR

Note: (Optional). Use from Frame SN 1001461.

$81.99

$

Usually ships in 3-6 days

0

2

Honda 16582-883-300

HOLDER, CONTROL CABLE

$4.99

$

In Stock, only 2 left!

0

3

Honda 17950-ZA0-800

CABLE, CHOKE

$

$

Not available

4

Honda 17951-ZA0-800

KNOB, CHOKE CONTROL

$

$

Not available

5

Honda 17952-ZA0-800

ARM, CHOKE

$

$

Not available

6

Honda 17953-ZA0-800

WASHER, SPECIAL

$

$

Not available

7

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Optional). Use from Frame SN 1001461.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 31118-880-000

TERMINAL, A.C. OUT

$75.99

$

Usually ships in 3-6 days

0

9

Honda 31413-ZA0-800

BUSH, PETCOCK SHAFT

$5.99

$

Usually ships in 3-6 days

0

10

Honda 32110-ZA0-831

WIRE HARNESS ASSY., A.C. (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 36138-PM1-G01

FILTER ASSY., SOLENOID VALVE

$

$

Not available

12

Honda 36160-ZA0-003

VALVE ASSY., CONTROL

$162.99

$

Usually ships in 3-6 days

0

13

Honda 36161-ZA0-000

STAY, IDLE CONTROL

$13.99

$

Usually ships in 3-6 days

0

14

Honda 36162-898-000

PROTECTOR, TUBE (9X210)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 38776-671-000

CAP, AIR FILTER

$

$

Not available

16

Honda 39700-ZA0-801

METER ASSY., HOUR

Note: (Optional). Use from Frame SN 1001461.

$

$

Currently unavailable

17

Honda 39703-ZA0-800

CORD, HOUR METER CONNECTING

Note: (Optional). Use from Frame SN 1001461.

$14.99

$

Usually ships in 3-6 days

0

18

Honda 39705-ZA0-800

BRACKET, HOUR METER

Note: (Optional). Use from Frame SN 1001461.

$26.99

$

Usually ships in 3-6 days

0

19

Honda 50310-ZA0-801

FRAME (LOWER)

$734.99

$

Usually ships in 3-6 days

0

20

Honda 50316-ZA0-800

SEAL, FRAME (LOWER)

$17.99

$

Usually ships in 3-6 days

0

21

Honda 50820-ZA0-000

RUBBER, GENERATOR MOUNTING

$126.99

$

Usually ships in 3-6 days

0

22

Honda 63145-ZA0-801

COVER (LOWER)

$712.99

$

Usually ships in 3-6 days

0

23

Honda 63177-ZA0-802

BEAM, CENTER

$191.99

$

Usually ships in 3-6 days

0

24

Honda 63251-ZA0-801

COVER, RR. GENERATOR

$280.99

$

Usually ships in 3-6 days

0

25

Honda 63252-ZA0-800

SEAL, RR. GENERATOR COVER

$12.99

$

Usually ships in 3-6 days

0

26

Honda 63310-ZA0-801

SEPARATOR

$

$

Not available

27

Honda 63314-ZA0-800

INSULATOR, SEPARATOR

$47.99

$

Usually ships in 3-6 days

0

28

Honda 63320-ZA0-801

COVER, GENERATOR

$

$

Not available

29

Honda 63321-ZA0-800

INSULATOR, GENERATOR COVER

$93.99

$

Usually ships in 3-6 days

0

30

Honda 63322-ZA0-800

SEAL A, GENERATOR COVER

$39.99

$

Usually ships in 3-6 days

0

31

Honda 63323-ZA0-802

SEAL, GENERATOR END COVER

$30.99

$

Usually ships in 3-6 days

0

32

Honda 67248-ZA0-800

RUBBER A, COVER SEAL (LOWER)

$35.99

$

Usually ships in 3-6 days

0

33

Honda 67249-ZA0-800

RUBBER B, COVER SEAL (LOWER)

$26.99

$

Usually ships in 3-6 days

0

34

Honda 67250-ZA0-800

RUBBER C, COVER SEAL (LOWER)

$8.99

$

Usually ships in 3-6 days

0

35

Honda 90052-ZA0-800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90404-723-000

WASHER, WAVE (10MM)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 93500-05008-0G

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93500-06010-3J

SCREW, PAN (6X10)

$3.49

$

Usually ships in 3-6 days

0

39

Honda 93903-34210

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94050-10000

NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 19

0

41

Honda 95002-02070

CLIP, TUBE (B7)

$2.99

$

In Stock, only 2 left!

0

42

Honda 95002-40800-08

CLAMP, TUBE (D8)

$3.49

$

In Stock, Qty 20+

0

43

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X170)

$16.99

$

Usually ships in 3-6 days

0

44

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X280)

$16.99

$

Usually ships in 3-6 days

0

45

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

$2.49

$

In Stock, Qty 20+

0

45

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

46

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$3.49

$

Usually ships in 3-6 days

0

47

Honda 95701-10025-00

BOLT, FLANGE (10X25)

$3.49

$

In Stock, Qty 7

0

48

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

49

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

Note: (Optional). Use from Frame SN 1001461.

$2.49

$

In Stock, Qty 20+

0

49

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Optional). Use from Frame SN 1001461.

$2.49

$

In Stock, Qty 20+

0
