EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) SWITCH BOX Parts Diagram

Generator, Made in Japan

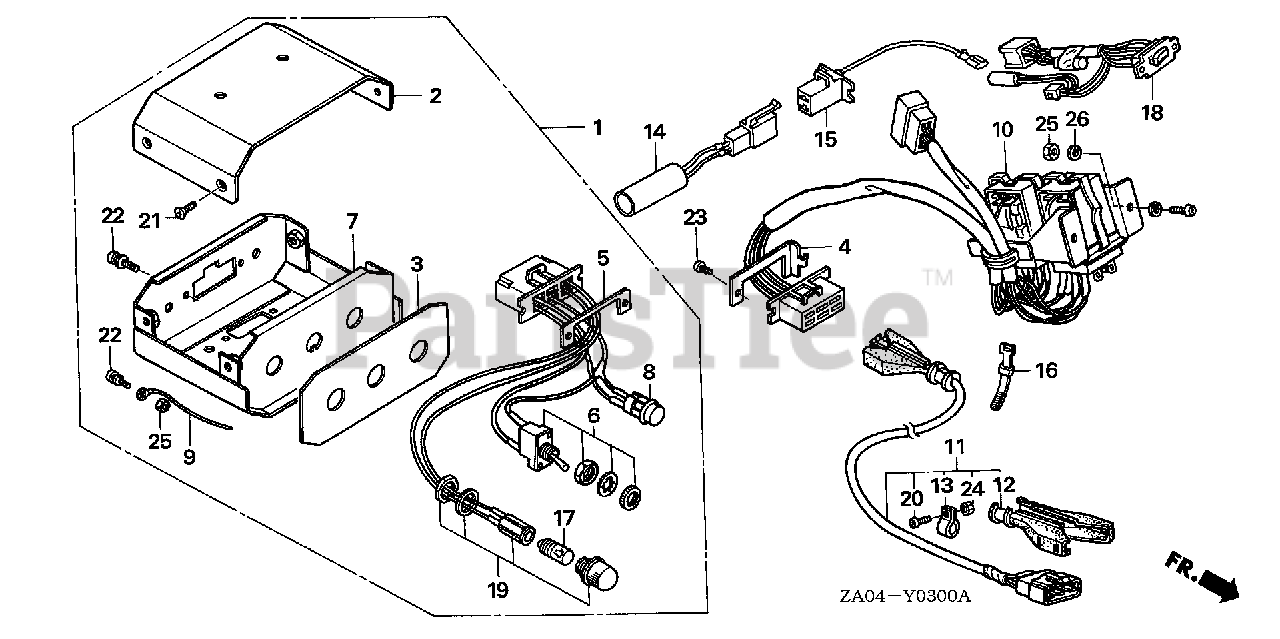

SWITCH BOX Parts Diagram

  • Title

1

Honda 31610-893-720ZA

SEE PART DETAILS - SUP; BOX ASSY., SWITCH *R8* (BRIGHT RED)

Note: (Optional).

$

$

Not available

2

Honda 31611-880-810

COVER (UPPER)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31612-880-810

PANEL, FR.

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

4

Honda 31613-ZA0-800

HOLDER, CONNECTOR (6P)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

5

Honda 31613-880-810

PLATE, CONNECTOR SETTING

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

6

Honda 31614-880-810

SWITCH, TOGGLE

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

7

Honda 31615-893-720

CASE, SWITCH

Note: (Optional).

$

$

Not available

8

Honda 31619-880-810

SWITCH, PUSH

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

9

Honda 31621-893-720

WIRE, GROUND

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 31650-ZA0-800

RELAY ASSY.

Note: (Optional).

$135.99

$

Usually ships in 3-6 days

0

11

Honda 31690-893-720

CABLE, REMOTE CONTROL (10M)

Note: (Optional).

$91.99

$

Usually ships in 3-6 days

0

12

Honda 31691-893-720

COVER, CONNECTOR

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 31692-893-720

BAND

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

16

Honda 32161-404-000

BAND B1, WIRE

Note: (Optional).

$2.99

$

In Stock, only 4 left!

0

17

Honda 34909-880-000

BULB, DASH (24V-2W)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

19

Honda 37560-880-810

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP

Note: (Optional).

$

$

Currently unavailable

19

Honda 37561-ZA0-003

SEE PART DETAILS - PRI; HOLDER, LAMP

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-3C

SCREW, PAN (3X12)

Note: (Optional).

$

$

Currently unavailable

21

Honda 93600-04008-0H

SCREW, FLAT (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93892-04012-08

SCREW-WASHER (4X12)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

23

Honda 93901-24210

SCREW, TAPPING (4X10)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-03330-0S

NUT, HEX. (3MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94001-04080-0S

NUT, HEX. (4MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
