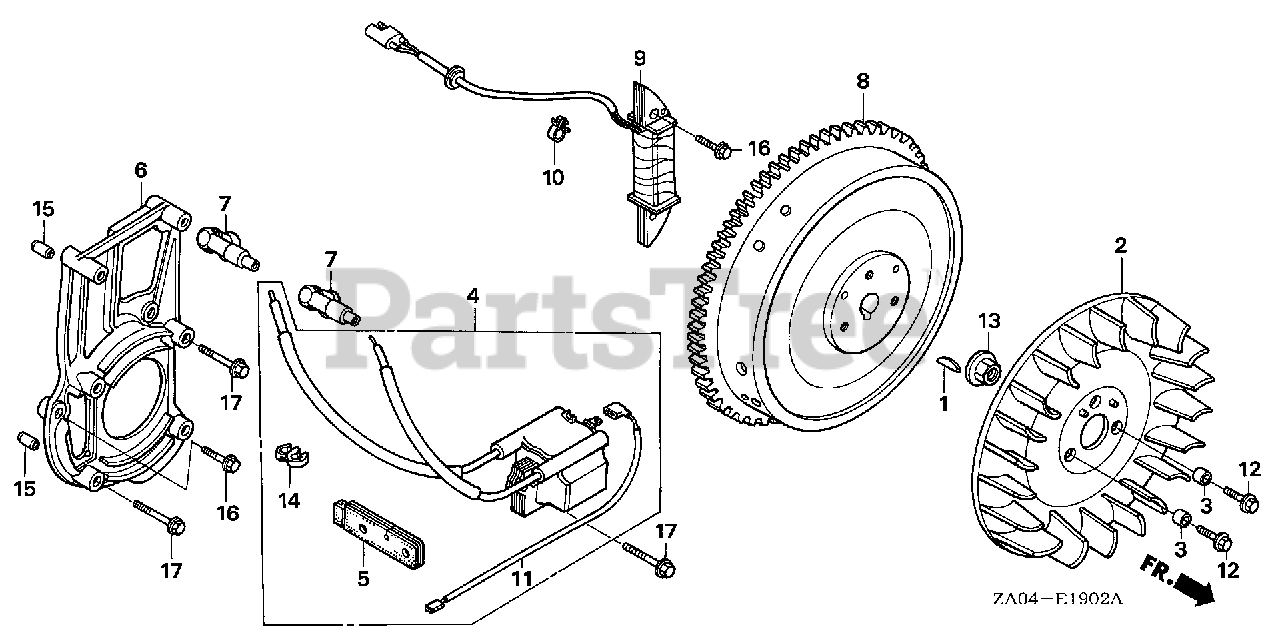

EX5500 K2 A/B (EA1) - Honda Generator, Made in Japan (SN: EA1-1100101 - EA1-1159999) FLYWHEEL@IGNITION COIL (3) Parts Diagram

Generator, Made in Japan

FLYWHEEL@IGNITION COIL (3) Parts Diagram

  • Title

1

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$4.49

$

In Stock, Qty 20+

0

2

Honda 19511-ZA0-930

FAN, COOLING (Honda Code 1972272).

$49.99

$

Usually ships in 3-6 days

0

3

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.99

$

In Stock, only 3 left!

0

4

Honda 30500-ZA0-931

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 2146223).

$150.99

$

In Stock, only 1 left!

0

5

Honda 30505-ZA0-700

GROMMET, IGNITION WIRE (Honda Code 1972298).

$13.99

$

Usually ships in 3-6 days

0

6

Honda 30525-ZA0-700

STAY, IGNITION SYSTEM (Honda Code 1978642).

$234.99

$

Usually ships in 3-6 days

0

7

Honda 30700-ZA0-802

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3825726).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 31100-ZA0-933

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5338173).

$291.99

$

Usually ships in 3-6 days

0

9

Honda 31630-ZA0-931

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (Honda Code 1978790).

$97.99

$

Usually ships in 3-6 days

0

10

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$4.49

$

In Stock, only 1 left!

0

11

Honda 36101-ZA0-700

SEE PART DETAILS - PRI; WIRE, ENGINE STOP

$10.99

$

Usually ships in 3-6 days

0

12

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$2.49

$

In Stock, only 1 left!

0

13

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1) (Honda Code 5032727).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90658-ZA0-930

CLIP, IGNITION WIRE (Honda Code 1979129).

$3.99

$

Usually ships in 3-6 days

0

15

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.99

$

Usually ships in 3-6 days

0

17

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).

$3.49

$

Usually ships in 3-6 days

0
