EX5500 K2 A/C (EA1) - Honda Generator, Made in Japan (SN: EA1-1160001 - EA1-9999999) SIDE COVER Parts Diagram

Generator, Made in Japan

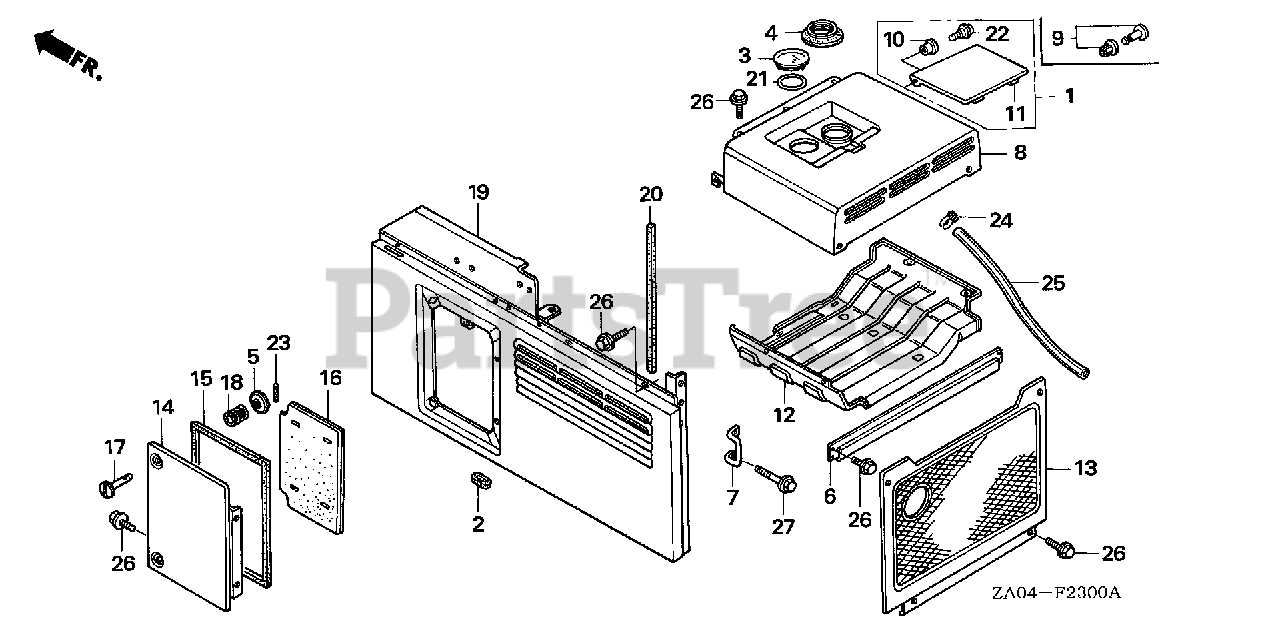

SIDE COVER Parts Diagram

  • Title

2

Honda 17247-240-000

GROMMET A, AIR CLEANER HOUSING

$3.99

$

Usually ships in 3-6 days

0

3

Honda 17507-ZA0-800

CAP, FUEL METER

$18.99

$

Usually ships in 3-6 days

0

4

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$21.99

$

Usually ships in 3-6 days

0

5

Honda 50129-862-000

RETAINER, LOCK SPRING

$5.49

$

Usually ships in 3-6 days

0

6

Honda 53125-ZA0-800ZB

HANDLE, RR. *NH105* (MAT BLACK)

$76.99

$

Usually ships in 3-6 days

0

7

Honda 53126-ZA0-800

HOOK, RR. (UPPER)

$18.99

$

Usually ships in 3-6 days

0

8

Honda 63120-ZA0-801ZB

COVER, FUEL TANK (UPPER) *NH35M* (CLOUD SILVER METALLIC)

$588.99

$

Usually ships in 3-6 days

0

10

Honda 63121-ZB6-010

BUSH, FUEL CAP COVER

$6.99

$

Usually ships in 3-6 days

0

11

Honda 63122-ZB7-010ZC

COVER, FUEL CAP *NH35M* (CLOUD SILVER METALLIC)

$85.99

$

Usually ships in 3-6 days

0

12

Honda 63125-ZA0-802

COVER, FUEL TANK (LOWER)

$260.99

$

Usually ships in 3-6 days

0

13

Honda 63140-ZA0-801ZA

COVER, RR. *B9* (ATLANTIS BLUE)

$294.99

$

Usually ships in 3-6 days

0

14

Honda 63150-ZA0-800ZA

COVER, CARBURETOR *B9* (ATLANTIS BLUE)

$147.99

$

Usually ships in 3-6 days

0

15

Honda 63153-ZA0-800

RUBBER, CARBURETOR COVER SEAL

$56.99

$

Usually ships in 3-6 days

0

16

Honda 63154-ZA0-800

INSULATOR, CARBURETOR COVER

$37.99

$

Usually ships in 3-6 days

0

17

Honda 63172-862-010

SEE PART DETAILS - PRI; PIN, COVER LOCK

$10.99

$

Usually ships in 3-6 days

0

18

Honda 63173-862-000

SPRING, COVER LOCK

$5.99

$

Usually ships in 3-6 days

0

19

Honda 63175-ZA0-803ZA

COVER, L. SIDE *B9* (ATLANTIS BLUE)

$804.99

$

Usually ships in 3-6 days

0

20

Honda 63178-ZA0-800

RUBBER, SIDE COVER SEAL

$14.99

$

Usually ships in 3-6 days

0

21

Honda 91356-706-000

O-RING (56X2.4)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90102-GB4-680

SCREW, HEADLIGHT SETTING

$4.99

$

Usually ships in 3-6 days

0

23

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95002-01160

CLIP, TUBE (A16)

$5.99

$

Usually ships in 3-6 days

0

25

Honda 95003-40003-60M

BULK HOSE, VINYL (12X16X3000) (12X16X350)

$

$

Not available

26

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.49

$

In Stock, Qty 20+

0

27

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0
