EX650 A (GE100) - Honda Generator, Made in Japan (SN: GE100-1000001 - GE100-9999999) EX650 FUEL TANK Parts Diagram

Generator, Made in Japan

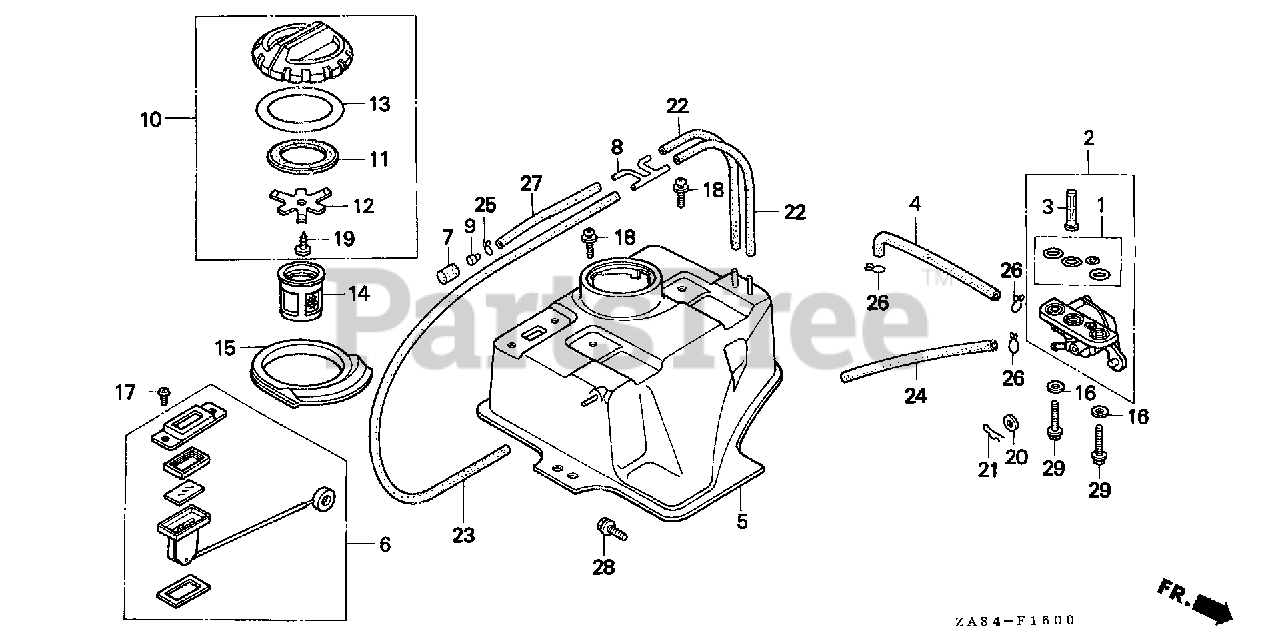

EX650 FUEL TANK Parts Diagram

  • Title

1

Honda 16080-892-003

GASKET SET, VALVE

$

$

Not available

2

Honda 16950-ZA8-005

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZA8-015)

Note: Use up to Frame SN 1204237.

$

$

Not available

2

Honda 16950-ZA8-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

3

Honda 16952-892-003

SCREEN, FUEL STRAINER

$

$

Not available

4

Honda 16953-ZA8-000

TUBE, FUEL (4.5)

$

$

Not available

5

Honda 17500-ZA8-010

SEE PART DETAILS - PRI; TANK, FUEL

$

$

Not available

6

Honda 17505-ZA8-003

METER ASSY., FUEL

$26.99

$

In Stock, only 1 left!

0

7

Honda 17523-ZA8-801

ELEMENT, HANDLE BREATHER

$1.99

$

In Stock, only 2 left!

0

8

Honda 17602-ZA8-010

JOINT, BREATHER TUBE

$12.99

$

Usually ships in 3-6 days

0

9

Honda 17604-ZC0-003

FILTER, GASOLINE

$7.99

$

In Stock, only 1 left!

0

10

Honda 17620-ZA8-003

SEE PART DETAILS - SUP; CAP ASSY., FUEL FILLER
(Superseded to 17620-ZA8-013)

Note: Use up to Frame SN 1151314.

$

$

Not available

10

Honda 17620-ZA8-013

SEE PART DETAILS - PRI; CAP ASSY., FUEL FILLER

$

$

Not available

11

Honda 17623-ZA8-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP

Note: Use up to Frame SN 1151314.

$

$

Currently unavailable

11

Honda 17623-ZA8-013

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP

Note: Use from Frame SN 1151315.

$

$

Not available

12

Honda 17625-ZA8-003

SPRING, PLATE

$

$

Not available

13

Honda 17626-ZA8-003

WASHER (58MM)

$3.99

$

In Stock, only 1 left!

0

14

Honda 17670-ZA8-000

FILTER, FUEL

$

$

Not available

15

Honda 63332-ZA8-000

GUIDE, TANK CAP

$

$

Not available

16

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

17

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

18

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

19

Honda 93903-46210

SCREW, TAPPING (6X16)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X120)

$29.99

$

In Stock, only 1 left!

0

23

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X445)

$29.99

$

In Stock, only 1 left!

0

24

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X210)

$51.99

$

In Stock, Qty 7

0

25

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 6

0

26

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

27

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X55)

$13.99

$

Usually ships in 3-6 days

0

28

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

28

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

29

Honda 96001-06020-00

BOLT, FLANGE (6X20)

$1.49

$

Usually ships in 3-6 days

0
