EX650 A (GE100) - Honda Generator, Made in Japan (SN: GE100-1000001 - GE100-9999999) EX650 MUFFLER Parts Diagram

Generator, Made in Japan

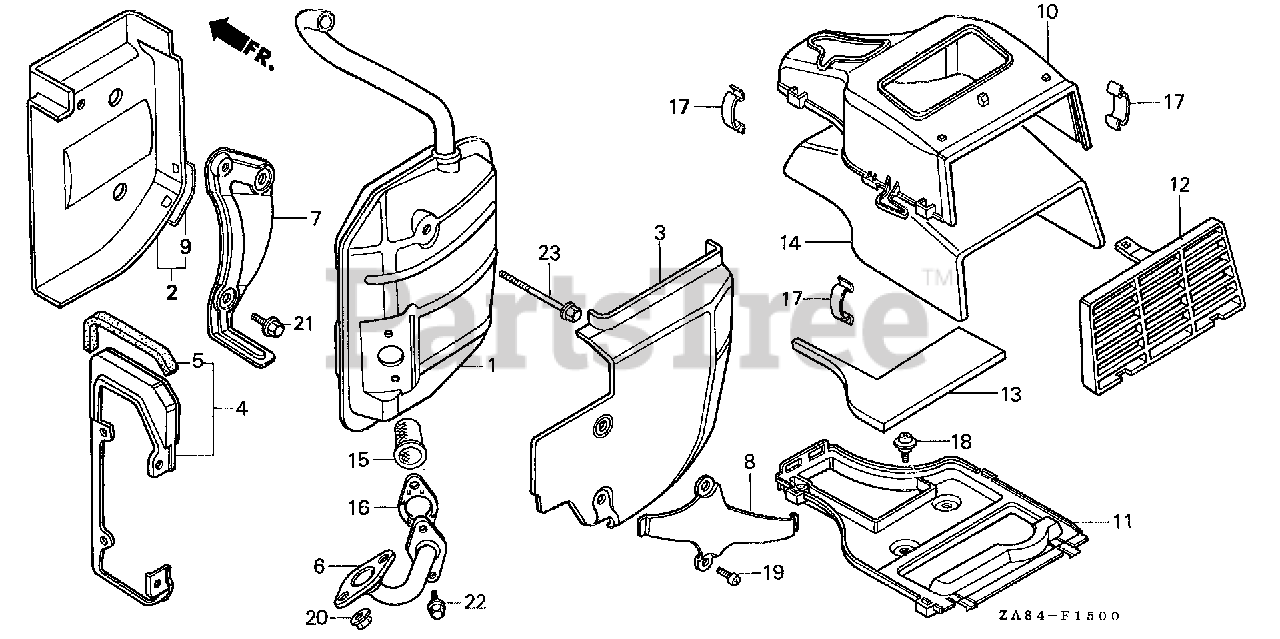

EX650 MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZA8-631

MUFFLER

$

$

Not available

2

Honda 18323-ZA8-000

SEPARATOR ASSY. (INNER)

$

$

Not available

3

Honda 18325-ZA8-000

SEPARATOR, GLASS WOOL (OUTER)

$

$

Not available

4

Honda 18328-ZA8-000

BRACKET ASSY., GLASS WOOL

$

$

Not available

5

Honda 18329-ZA8-000

SEAL, GLASS WOOL BRACKET

$

$

Not available

6

Honda 18330-ZA8-000

PIPE, EX.

Note: Use up to Frame SN 1079011.

$36.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZA8-800

PIPE, EX.

Note: Use from Frame SN 1079012.

$39.99

$

Usually ships in 3-6 days

0

7

Honda 18332-ZA8-000

BRACKET, MUFFLER

$18.99

$

Usually ships in 3-6 days

0

8

Honda 18341-ZA8-000

PLATE, SEPARATOR PUSHING (OUTER)

$

$

Not available

9

Honda 18344-ZA8-000

PLATE, SEPARATOR (OUTER)

$

$

Not available

10

Honda 18350-ZA8-000

CHAMBER, EXPAND (UPPER)

$

$

Not available

11

Honda 18351-ZA8-000

CHAMBER, EXPAND (LOWER)

$46.99

$

Usually ships in 3-6 days

0

12

Honda 18352-ZA8-000

GRID, EXPAND CHAMBER

$

$

Not available

13

Honda 18353-ZA8-000

WOOL, EXPAND CHAMBER GLASS (LOWER)

$

$

Not available

14

Honda 18354-ZA8-000

WOOL, EXPAND CHAMBER GLASS (UPPER)

$

$

Not available

15

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

16

Honda 18381-ZA8-800

GASKET, MUFFLER

Note: Use from Frame SN 1079012.

$4.99

$

Usually ships in 3-6 days

0

16

Honda 18381-892-000

GASKET, MUFFLER (NOT AVAILABLE)

Note: Use up to Frame SN 1079011.

$

$

Currently unavailable

17

Honda 90659-692-000

SEE PART DETAILS - PRI; CLAMP, CASE

$12.99

$

In Stock, only 4 left!

0

18

Honda 91508-187-000

SCREW, PAN (5X5)

$

$

Not available

19

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 6

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

Note: Use from Frame SN 1034616.

$2.49

$

In Stock, Qty 20+

0

21

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-08)

Note: Use up to Frame SN 1034615.

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1034616.

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1034615.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 2 left!

0

23

Honda 95701-06060-08

BOLT, FLANGE (6X60)

$3.49

$

Usually ships in 3-6 days

0
