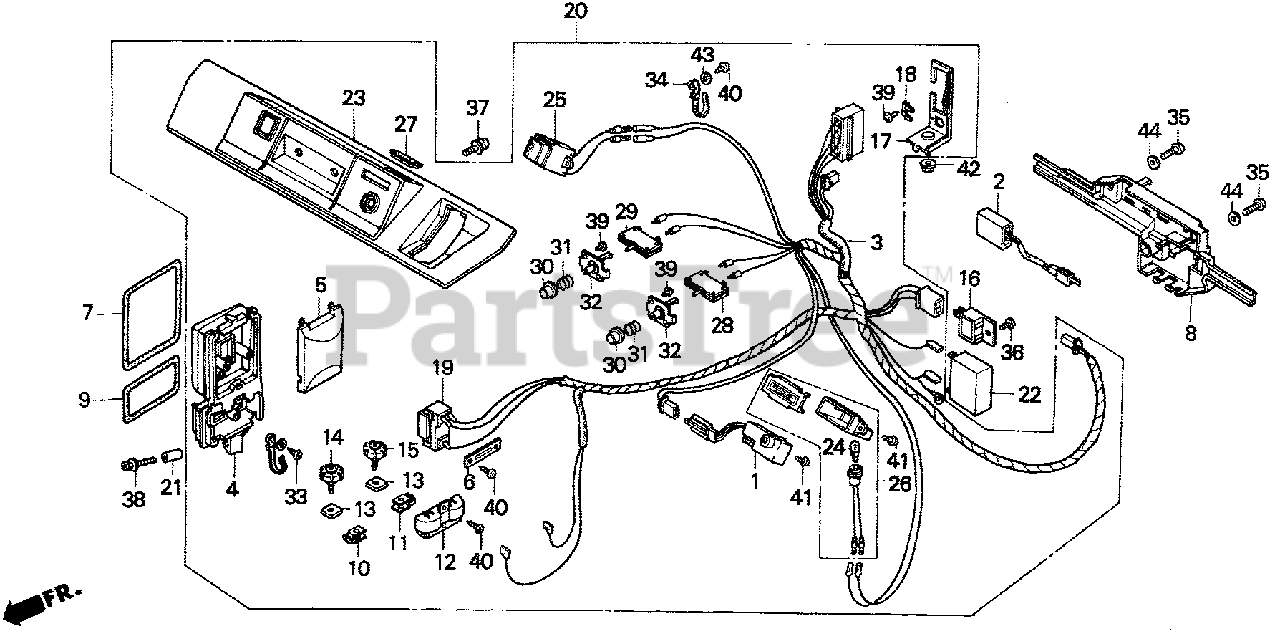

EX650 PANEL Parts Diagram

  • Title

1

Honda 15520-ZA8-003

ALERT UNIT, OIL

Note: Use up to Frame SN 1293816.

$

$

Not available

2

Honda 30585-ZA8-013

SEE PART DETAILS - PRI; UNIT, IGNITION

$

$

Not available

3

Honda 31418-ZA8-631

SEE PART DETAILS - SUP; WIRE HARNESS ASSY.

$

$

Currently unavailable

3

Honda 31418-ZA8-632

SEE PART DETAILS - PRI; WIRE HARNESS ASSY.

Note: Use up to Frame SN 1293816.

$

$

Currently unavailable

3

Honda 31418-ZA8-633

WIRE HARNESS ASSY.

Note: Use from Frame SN 1293817 to 1335686.

$

$

Not available

3

Honda 31418-ZA8-634

WIRE HARNESS ASSY.

Note: Use from Frame SN 1335687.

$

$

Not available

4

Honda 31423-ZA8-632

PANEL, RECEPTACLE

$

$

Not available

5

Honda 31425-ZA8-632

COVER, RECEPTACLE

$

$

Not available

6

Honda 31426-ZA8-000

HOLDER, RECEPTACLE

$

$

Not available

7

Honda 31428-ZA8-000

SEAL A, RECEPTACLE PANEL

$

$

Not available

8

Honda 31434-ZA8-010

COVER, WIRE HARNESS SETTING

Note: Use from Frame SN 1139905 to 1291566.

$

$

Not available

8

Honda 31434-ZA8-020

COVER, WIRE HARNESS SETTING

Note: Use up to Frame SN 1139904.

$

$

Not available

8

Honda 31434-ZA8-020

COVER, WIRE HARNESS SETTING

Note: Use from Frame SN 1291567.

$

$

Not available

9

Honda 31462-ZA8-000

SEAL B, RECEPTACLE PANEL

$

$

Not available

10

Honda 31463-ZA8-000

CONTACT, D.C. TERMINAL (+)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 31464-ZA8-000

CONTACT, D.C. TERMINAL (-)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 31465-ZA8-000

HOLDER, D.C. TERMINAL

$

$

Not available

13

Honda 31466-ZA8-631

NUT (6MM)

$

$

Not available

14

Honda 31468-ZA8-631

KNOB, D.C. TERMINAL (+)

$

$

Not available

15

Honda 31469-ZA8-631

KNOB, D.C. TERMINAL (-)

$

$

Not available

16

Honda 31720-ZA8-003

SEE PART DETAILS - SUP; DIODE, D.C.
(Superseded to 31720-ZA8-013)

$56.99

$

Usually ships in 3-6 days

0

17

Honda 32301-ZA8-000

PLATE, CONNECTOR SETTING

$

$

Not available

18

Honda 32302-ZA8-000

HOLDER, CONNECTOR

$

$

Not available

19

Honda 32333-ZA8-000

RECEPTACLE (15A/125V)

$

$

Not available

20

Honda 32340-ZA8-631

PANEL ASSY.

Note: Use up to Frame SN 1291566.

$

$

Not available

20

Honda 32340-ZA8-632

PANEL ASSY.

Note: Use from Frame SN 1291567 to 1336086.

$

$

Currently unavailable

20

Honda 32340-ZA8-633

PANEL ASSY.

Note: Use from Frame SN 1336087.

$

$

Currently unavailable

21

Honda 32344-ZA8-000

COLLAR, PANEL

$

$

Not available

22

Honda 32380-ZA8-003

CONDENSER

Note: Use from Frame SN 1291567.

$

$

Not available

22

Honda 32380-ZA8-306

CONDENSER

Note: Use from Frame SN 1139905 to 1291566.

$

$

Not available

23

Honda 32410-ZA8-631

PLATE, BASE

Note: Use up to Frame SN 1293816.

$

$

Not available

23

Honda 32410-ZA8-632

PLATE, BASE

Note: Use from Frame SN 1293817 to 1335686.

$

$

Not available

23

Honda 32410-ZA8-633

PLATE, BASE

Note: Use from Frame SN 1335687.

$

$

Not available

24

Honda 34902-ZA8-003

BULB, WEDGE BASE (6V1.7W) (STANLEY)

Note: Use up to Frame SN 1335686.

$

$

Not available

25

Honda 37500-ZA7-003

METER, FREQUENCY

$

$

Not available

26

Honda 37560-ZA8-003

SOCKET ASSY., LAMP

Note: Use up to Frame SN 1335686.

$

$

Not available

27

Honda 37566-ZA8-631

SEE PART DETAILS - PRI; CAP, PILOT LAMP

Note: Use up to Frame SN 1335686.

$

$

Not available

28

Honda 38240-ZA7-000

PROTECTOR, D.C. CIRCUIT (12A)

$

$

Not available

29

Honda 38240-ZA8-630

PROTECTOR, A.C. CIRCUIT (5A)

$

$

Not available

30

Honda 38251-892-003

CAP, BREAKER

$

$

Not available

31

Honda 38253-ZA8-631

SPRING, RETURN

$

$

Not available

32

Honda 38254-ZA7-003

HOLDER, BREAKER

$

$

Not available

33

Honda 90105-ZA8-631

SCREW, TAPPING (3X14)

Note: Use from Frame SN 1293817.

$

$

Not available

34

Honda 90652-ZA8-631

CLIP, HARNESS

Note: Use from Frame SN 1293817.

$

$

Not available

35

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

36

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93891-06010-08

SCREW-WASHER (6X10)

$1.49

$

In Stock, only 4 left!

0

38

Honda 93894-05025-08

SCREW-WASHER (5X25)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 93901-32120

SCREW, TAPPING (3X8)

$0.99

$

Usually ships in 3-6 days

0

40

Honda 93901-34220

SCREW, TAPPING (4X10)

Note: Use from Frame SN 1335687.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93901-34220

SCREW, TAPPING (4X10)

Note: Use up to Frame SN 1335686.

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93901-34420

SCREW, TAPPING (4X16)

Note: Use up to Frame SN 1293816.

$0.99

$

Usually ships in 3-6 days

0

42

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

43

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0
