EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) FUEL TANK + FUEL VALVE Parts Diagram

Generator, Made in Japan

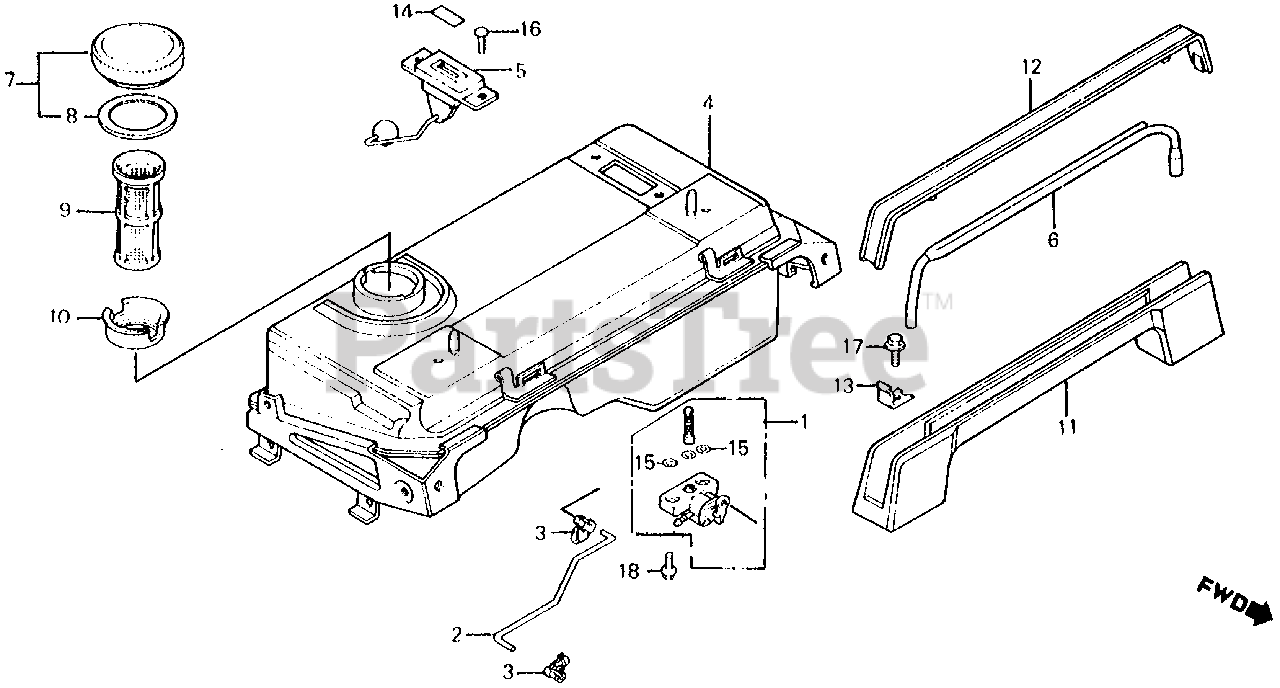

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-ZA7-000

PETCOCK ASSY.

$

$

Currently unavailable

2

Honda 16955-ZA7-000

ROD, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16956-ZA7-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

4

Honda 17500-ZA7-000H

TANK, FUEL *R8* (BRIGHT RED)

$

$

Currently unavailable

4

Honda 17500-ZA7-000ZA

TANK, FUEL *NH44MS* (SPECIAL SILVER METALLIC)

$

$

Currently unavailable

4

Honda 17500-ZA7-000ZB

TANK, FUEL

$

$

Currently unavailable

5

Honda 17505-ZA7-003

METER ASSY., FUEL

$

$

Currently unavailable

6

Honda 17601-ZA7-000

TUBE, HANDLE BREATHER

$

$

Currently unavailable

7

Honda 17620-ZA7-003

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

8

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$2.99

$

In Stock, only 1 left!

0

9

Honda 17672-883-300

FILTER, FUEL

$

$

Not available

10

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

$9.49

$

In Stock, Qty 5

0

11

Honda 68110-ZC0-000

HANDLE, CARRYING

$

$

Not available

12

Honda 68121-ZA7-000

SEE PART DETAILS - PRI; COVER, HANDLE

$

$

Not available

13

Honda 68125-892-000

HOOK, HANDLE COVER

$

$

Not available

14

Honda 87565-ZA7-000

MARK, FUEL METER

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

16

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$0.99

$

In Stock, only 4 left!

0

17

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

17

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

18

Honda 96001-06020-00

BOLT, FLANGE (6X20)

$1.49

$

Usually ships in 3-6 days

0
