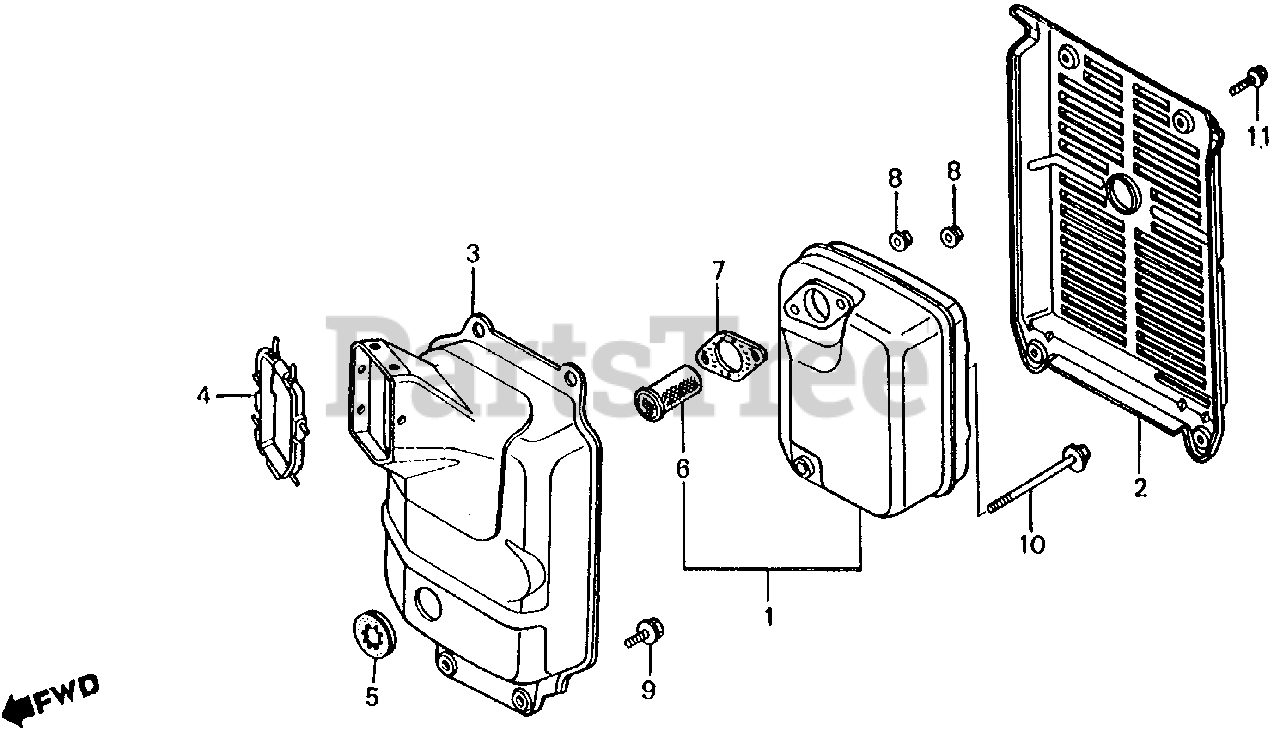

EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

MUFFLER Parts Diagram

  • Title

1

Honda 183A1-ZA7-631

ARRESTER SET, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18320-ZC0-701ZA

PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK)

$

$

Not available

3

Honda 18325-ZA7-000

PROTECTOR, MUFFLER (INNER)

$

$

Not available

4

Honda 18327-ZA7-000

RUBBER, PROTECTOR (INNER)

$

$

Currently unavailable

5

Honda 18329-ZA7-000

SEAL B, MUFFLER PROTECTOR

$4.99

$

Usually ships in 3-6 days

0

6

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

7

Honda 18381-892-000

GASKET, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

9

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

9

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

10

Honda 95700-06070-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X70)

$

$

Currently unavailable

10

Honda 95701-06070-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X70)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 96000-06010-07

SEE PART DETAILS - SUP; BOLT, FLANGE (6X10)
(Superseded to 96001-06010-07)

$1.99

$

In Stock, Qty 7

0

11

Honda 96001-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0
