EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 070000 - 079999) (1992) Breather & Vent Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

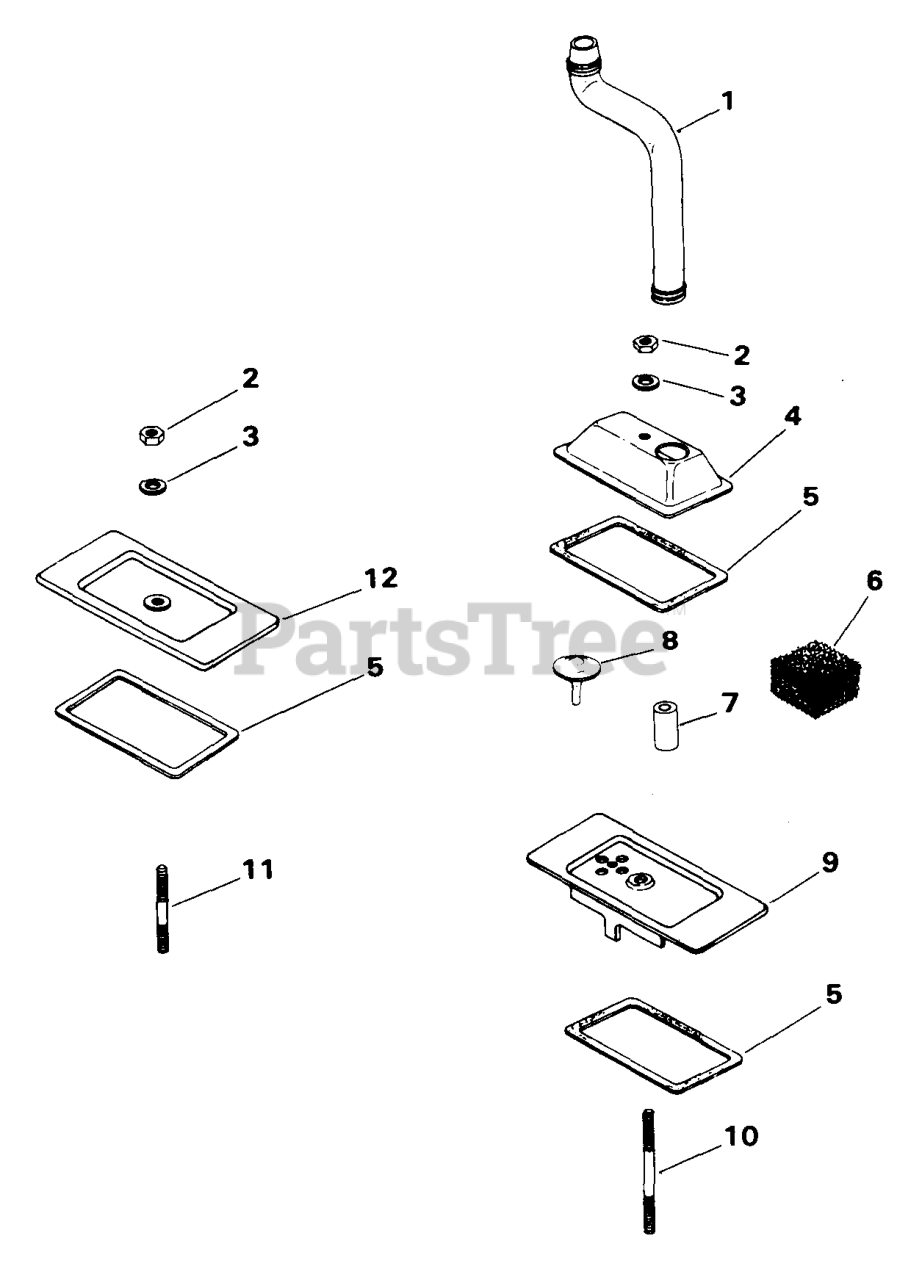

Breather & Vent Parts Diagram

  • Title

1

Exmark 5232606-S

Hose, Breather 3-5/8"

$

$

Currently unavailable

2

Exmark X-81-1-S

Nut, Hex. 1/4-20

$

$

Currently unavailable

3

Exmark X-25-12-S

Washer, Plain 1/4"

$

$

Currently unavailable

4

Exmark 5209608-S

Cover, #1 Upper Cylinder Valve

$

$

Currently unavailable

5

Exmark 5205501-S

Gasket, Valve Cover

$

$

Currently unavailable

6

Exmark 231419-S

Filter, Breather

$

$

Currently unavailable

7

Exmark 5203204-S

Seal, Breather

$

$

Currently unavailable

8

Exmark 5246201

Valve, Umbrella

$

$

Currently unavailable

9

Exmark 5209622

Cover, #1 Lower Cylinder Valve

$

$

Currently unavailable

10

Exmark 275220-S

Stud, #1 Cylinder Valve Cover - 1/4-20x3-1/4"

$

$

Currently unavailable

11

Exmark X-352-39-S

Stud, #2 Cylinder Valve Cover - 1/4-20x2-1/4"

$

$

Currently unavailable

12

Exmark 5209618

Cover, #2 Cylinder Valve

$

$

Currently unavailable
