EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 090000 - 101999) (1994) Right Angle Drive Model No. 1000-026, Service No. 794476 Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

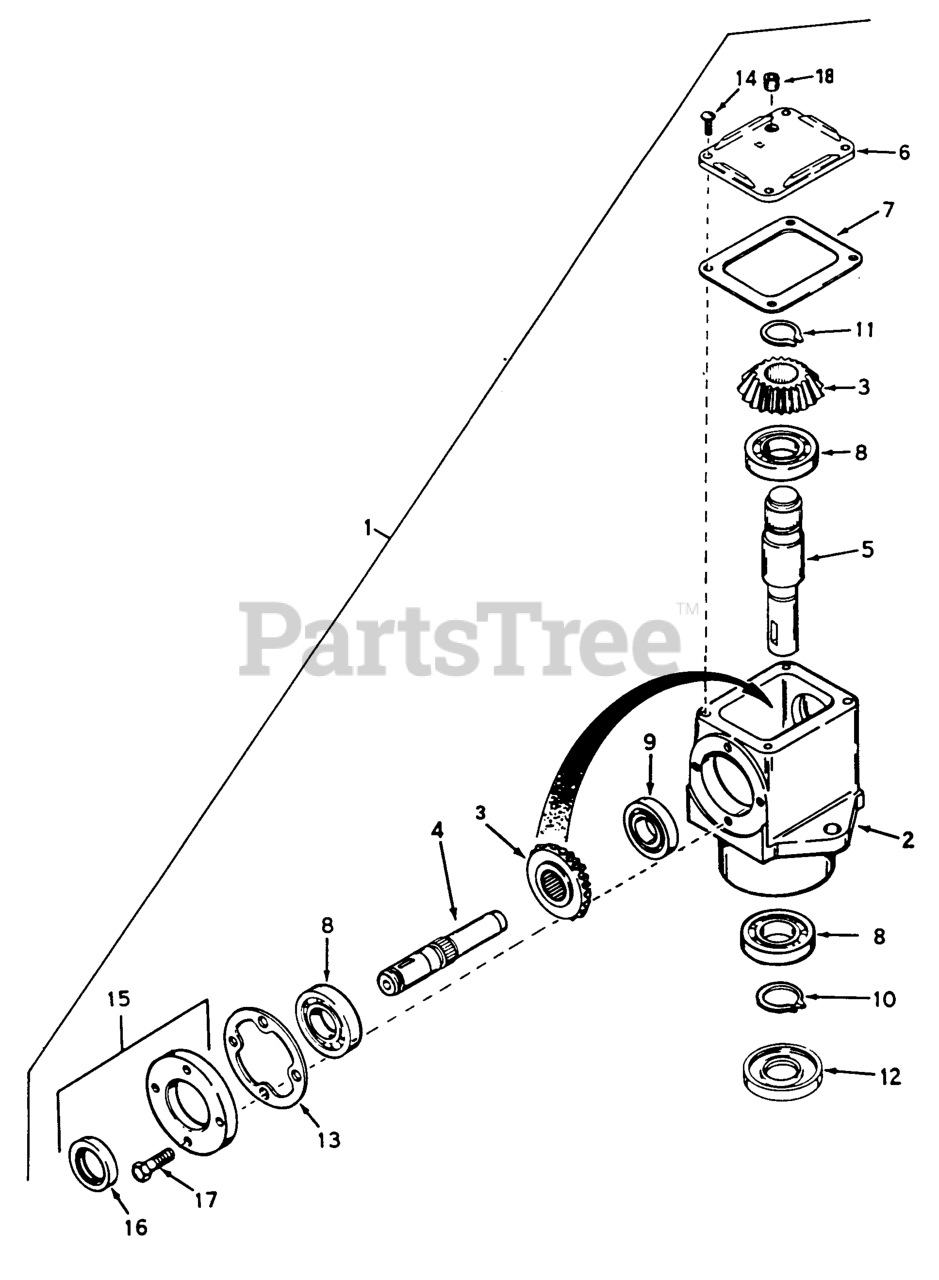

Right Angle Drive Model No. 1000-026, Service No. 794476 Parts Diagram

  • Title
1

Exmark 1-794476

Head Assy., Right Hand

Note: (Incl. Nos. 2 thru 15 & 18)

$

$

Currently unavailable

2

Exmark 770026A

Housing, Right Angle Drive

$

$

Currently unavailable

3

Exmark 1-778101

Gear, Miter

$

$

Currently unavailable

4

Exmark 776039A

Shaft, Input Pinion

$

$

Currently unavailable

5

Exmark 1-776066

Shaft, Output

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Exmark 1-788028

Gasket, Cover

$

$

Currently unavailable

8

Exmark 1-780034

Bearing, Ball

$

$

Currently unavailable

9

Exmark 1-780024

Bearing, Ball

$

$

Currently unavailable

10

Exmark 1-788019

Ring, Retainer

$

$

Currently unavailable

11

Exmark 1-788018

Ring, Retainer

$

$

Currently unavailable

12

Exmark 1-788029

Seal, Oil

$

$

Currently unavailable

13

Exmark 788030A

Gasket, Cap

$

$

Currently unavailable

14

Exmark 1-792025

Screw Pan Hd. Self-Tap, 10-24 X 1/2

$

$

Currently unavailable

15

Exmark 1-786029

Cap & Seal Assy., Retainer

Note: (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

Exmark 1-788031

Seal, Oil

$

$

Currently unavailable

17

Exmark 1-792026

Screw, Hex Hd., 1/4-20 X 7/8

$

$

Currently unavailable

18

Exmark 28534

Plug, Pipe Hex Countersunk Headless, 1/8-27

$

$

Not available
