EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 115000 - 129999) (1996) 52" and 60" Side Discharge Mower Decks Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

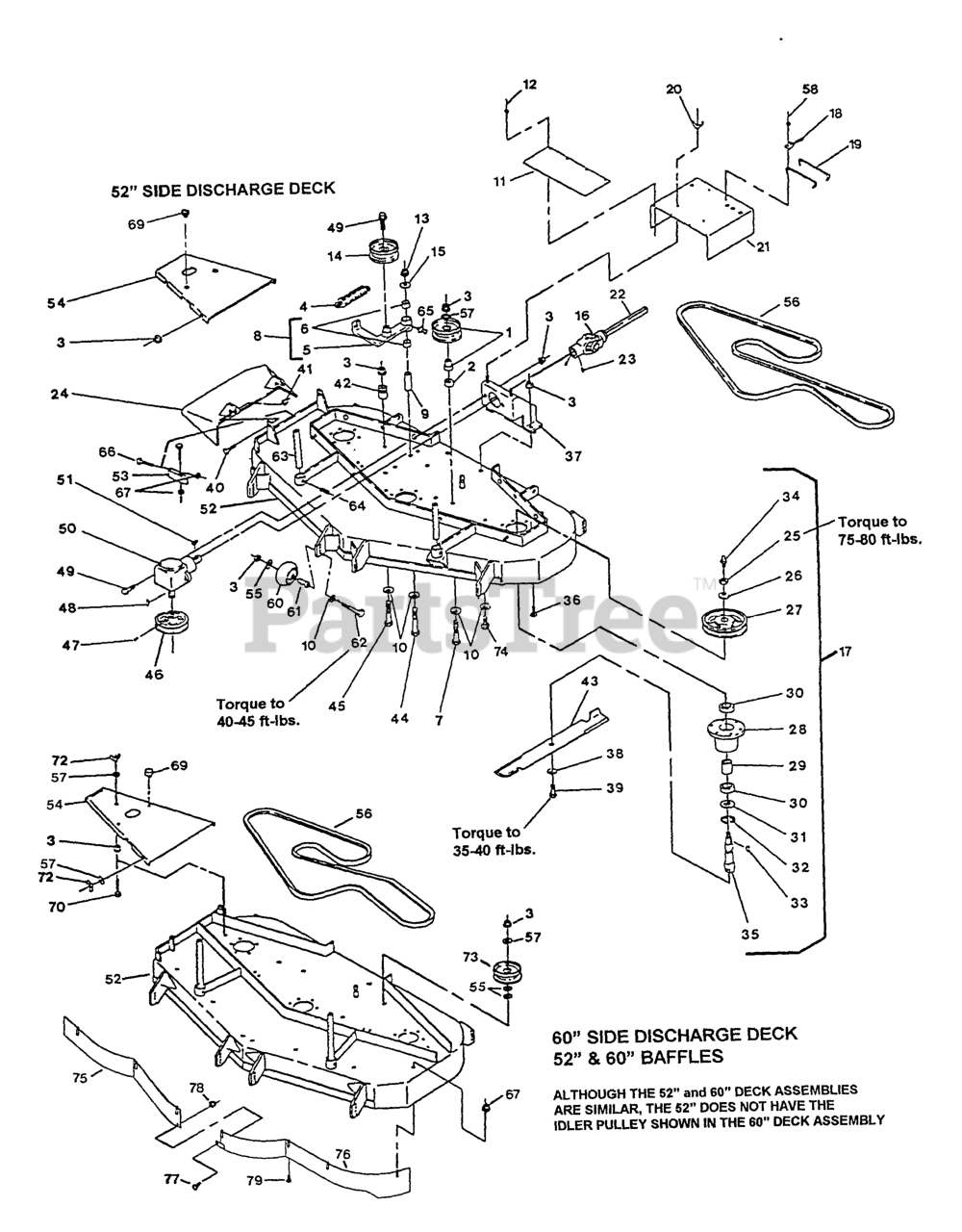

52" and 60" Side Discharge Mower Decks Parts Diagram

  • Title

1

Exmark 1-602501

KIT,48 RH IDLER/BUS

$

$

Not available

Exmark 1-603497

IDLER,PULLEY

$64.99

$

In Stock, only 1 left!

0

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

2

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 4 left!

0

3

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513170

SPRING,EXTENSION

$30.99

$

In Stock, Qty 5

0

5

Exmark 1-512909

1-512935
(Superseded to 1-512935)

$

$

Not available

6

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

7

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

(60" Deck)

$

$

Not available

8

Exmark 1-512935

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

10

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

(52" Deck)

$

$

Not available

(60" Deck)

$

$

Not available

11

Exmark 1-523403

SHIELD,PTO GUARD

$37.99

$

Usually ships in 3-6 days

0

12

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-603497

IDLER,PULLEY

$64.99

$

In Stock, only 1 left!

0

15

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-523158

54-9180
(Superseded to 54-9180)

$69.99

$

In Stock, only 2 left!

0

17

Exmark 1-604262

CH-52&60 OUTER CUTTR

$

$

Not available

18

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 1-513879

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-523434

ROD,DECK HOLDUP 60"PNTD

$

$

Not available

20

Exmark 1-513959

WINGNUT-NYLOCK

$6.99

$

In Stock, Qty 5

0

21

Exmark 1-523402-01

DISCONTINUED

$

$

Not available

22

Exmark 1-513196-03

PTO SHAFT,SHAFT HALF PNT

$

$

Not available

23

Exmark 1-803049

DISCONTINUED (EXMARK)

Note: Use Pro-Lock nut type (Part No. 840022, .5 ml tube) on set screws.

$

$

Not available

24

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$213.99

$

Usually ships in 3-6 days

0

Exmark 1-542606-01

109-2758-01
(Superseded to 109-2758-01)

$218.99

$

Usually ships in 3-6 days

0

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 19

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-513186

1-414315
(Superseded to 1-414315)

$238.99

$

Usually ships in 3-6 days

0

29

Exmark 1-513188

SPACER,BEARING

$24.99

$

In Stock, Qty 9

0

30

Exmark 1-303543

BEARING,HD SPINDLE

$45.99

$

In Stock, Qty 20+

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

$7.49

$

In Stock, Qty 20+

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, only 3 left!

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 20+

0

34

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-603031

SPINDLE-OUTER BLADE

$180.99

$

In Stock, only 2 left!

0

36

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

$1.49

$

In Stock, Qty 15

0

37

Exmark 1-512904-01

WLD,GEARBOX SUPPORT

$

$

Not available

Exmark 1-522161-01

WLD,GEARBOX SUPPORT

$

$

Not available

38

Exmark 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

39

Exmark 1-800531

3213-1
(Superseded to 3213-1)

$2.49

$

In Stock, Qty 8

0

40

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

42

Exmark 1-603422

ANCHOR-SPRING PLTD

$16.99

$

Usually ships in 3-6 days

0

43

Exmark 1-603637

103-3229
(Superseded to 103-3229)

$31.99

$

In Stock, only 3 left!

0

Exmark 1-603844

DISCONTINUED

$

$

Not available

Exmark 1-603873

103-3227
(Superseded to 103-3227)

Note: Requires Installation of Micro-Mulch Kit, Part No. MK52-2 (52" deck) and MK60-2 (60" deck).

$

$

Not available

Exmark 1-603283

103-3233-S
(Superseded to 103-3233-S)

$39.99

$

In Stock, Qty 13

0

Exmark 1-603661

103-3230
(Superseded to 103-3230)

$

$

Not available

Exmark 1-603874

103-3231
(Superseded to 103-3231)

Note: Requires Installation of Micro-Mulch Kit, Part No. MK52-2 (52" deck) and MK60-2 (60" deck).

$37.99

$

In Stock, only 4 left!

0

44

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

45

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

46

Exmark 1-523159

DISCONTINUED

$

$

Not available

Exmark 1-523398

DISCONTINUED (EXMARK)

$

$

Not available

47

Exmark 1-803310

SCREW-SET

Note: Use Pro-Lock nut type (Part No. 840022, .5 ml tube) on set screws.

$2.99

$

In Stock, only 2 left!

0

48

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

49

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

50

Exmark 1-513635

GEARBOX, PEERLESS

$

$

Not available

51

Exmark 1-807005

3257-3
(Superseded to 3257-3)

$1.49

$

In Stock, Qty 10

0

52

Exmark 1-522344

1-522518
(Superseded to 1-522518)

$

$

Not available

Exmark 1-522345

DISCONTINUED (EXMARK)

$

$

Not available

53

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

0

54

Exmark 1-513906-01

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-523166-01

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

56

Exmark 1-513910

DISCONTINUED

$

$

Not available

Exmark 1-523175

DISCONTINUED

$

$

Not available

57

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

Washer, 3/8 Flat (60" Deck)

$

$

Not available

58

Exmark 1-803010

Rivet, 3/16
(Superseded to 3269-3)

$0.99

$

In Stock, only 4 left!

0

59

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

60

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

61

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

62

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

63

Exmark 1-603001

ROD,DECK SUPPORT

$52.99

$

In Stock, Qty 6

0

64

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

65

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 19

0

66

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

67

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

(60" Deck)

$

$

Not available

69

Exmark 1-513291

DISCONTINUED

$

$

Not available

70

Exmark 1-800031

DISCONTINUED

$

$

Not available

72

Exmark 1-543678

NUT-WING

$13.99

$

In Stock, Qty 5

0

73

Exmark 1-303516

IDLER,PULLEY

$62.99

$

In Stock, only 3 left!

0

74

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

75

Exmark 1-632377-01

DISCONTINUED

$

$

Not available

Exmark 1-632235-01

WLD,RH BAFFLE

$

$

Not available

76

Exmark 1-632375-01

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-632237-01

DISCONTINUED

$

$

Not available

77

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

78

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

79

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0
