EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 115000 - 129999) (1996) Utility Box Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

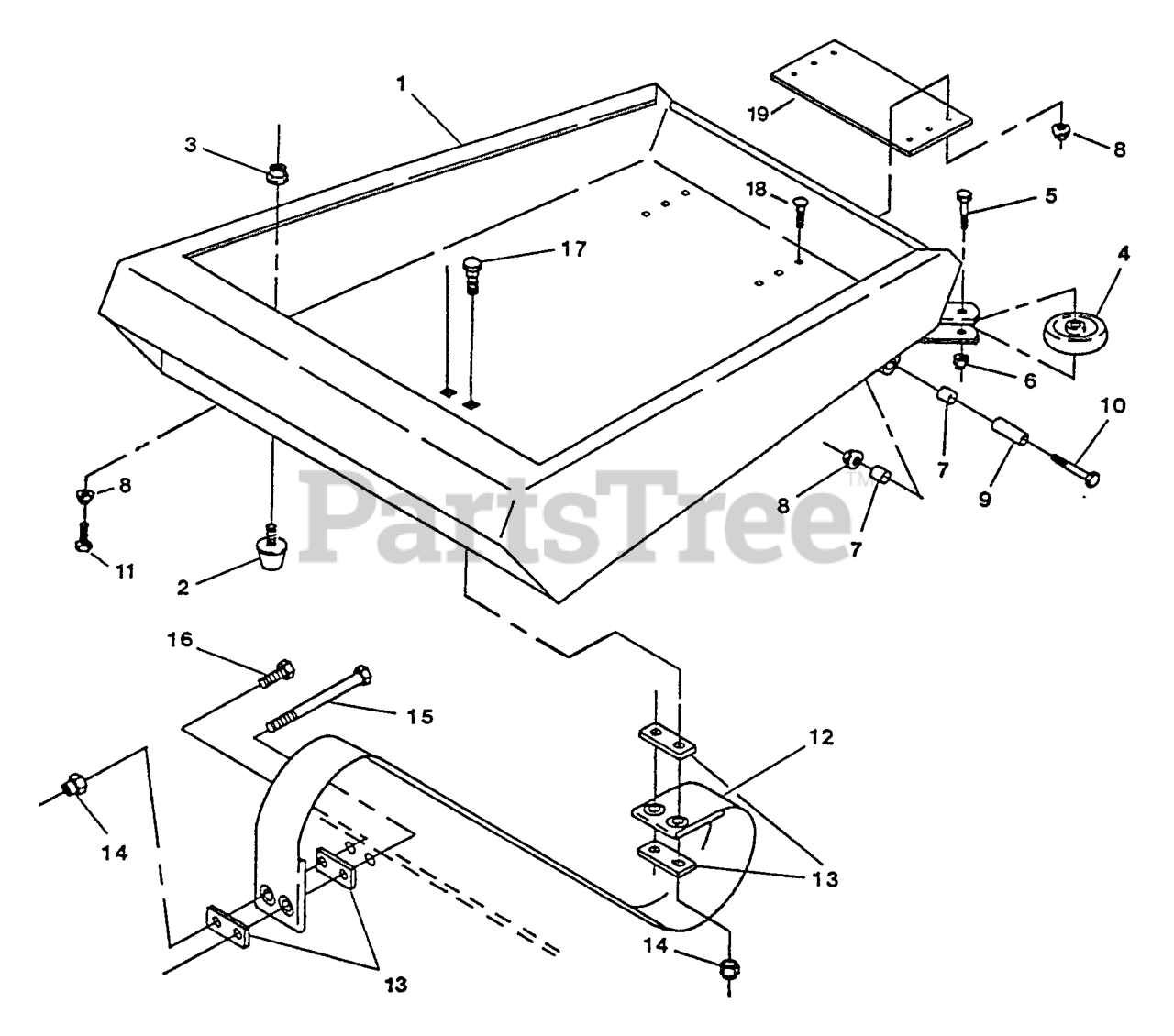

Utility Box Parts Diagram

  • Title

1

Exmark 1-522125-03

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-543963

BUMPER-RUBBER

$22.99

$

In Stock, only 2 left!

0

3

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-513407

WHEEL,RUBBER

$

$

Not available

5

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

8

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-513385

BUSHING,BOX PIVOT

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 1-800300

323-14
(Superseded to 323-14)

$3.99

$

In Stock, Qty 18

0

11

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 1-513503

STRAP,BOX RESTRAINT

$

$

Not available

13

Exmark 1-513502

CLAMP,STRAP

$7.49

$

Usually ships in 3-6 days

0

14

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-800267

DISCONTINUED (EXMARK)

$

$

Not available

16

Exmark 1-800255

321-8
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

17

Exmark 1-807514

Bolt, Carriage 1/4-20 X 1

$

$

Currently unavailable

18

Exmark 1-807508

3231-4
(Superseded to 3231-4)

$3.99

$

Usually ships in 3-6 days

0

19

Exmark 1-523430-03

WEIGHT,DUMP BOX PNTD

$336.99

$

Usually ships in 3-6 days

0
