EXS-20KO - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 070000 - 079999) (1992) Baffles & Shroud Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

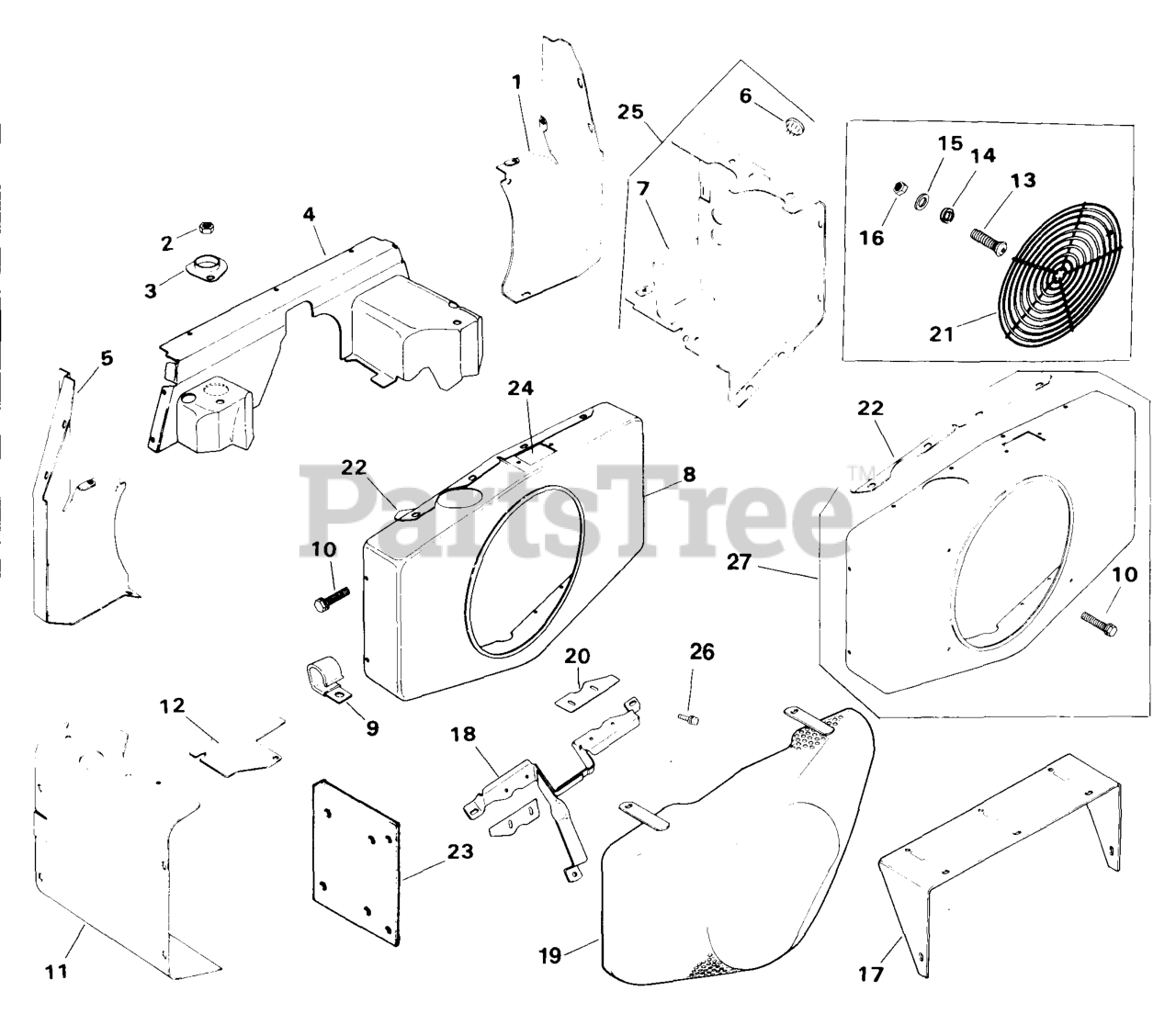

Baffles & Shroud Parts Diagram

  • Title
7

Exmark 5212405-S

Baffle, #1 Cylinder Head (6-1/8" Wide With 5-1/8" Wide Rear Cylinder Baffle)

$

$

Currently unavailable

10

Exmark X-67-83-S

Screw, Hex. Wash. Hd. 1/4-20x7/16"

$

$

Currently unavailable

11

Exmark 5206330-S

Baffle, #2 Cylinder Head

Note: (8-3/4" wide with 5-7/32" wide rear cylinder baffle)

$

$

Currently unavailable

12

Exmark 5206301-S

Baffle, Fuel Pump

$

$

Currently unavailable

13

Exmark 5208611-S

Screw, Hex. Wash. Hd. 1/4-20x5/8"

$

$

Currently unavailable

14

Exmark 5246816-S

Washer, Flat

$

$

Currently unavailable

22

Exmark 5221701-S

Bracket, Upper Housing

$

$

Currently unavailable

27

Exmark 5275570-S

Kit, Blower Housing

Note: Includes 10 [qty. 3],13 [qty. 2],14 [qty. 2],22

$

$

Currently unavailable
