EXW171S A (EB5) - Honda Generator, Made in Japan (SN: EB5-1000001 - EB5-9999999) CONTROL PANEL Parts Diagram

Generator, Made in Japan

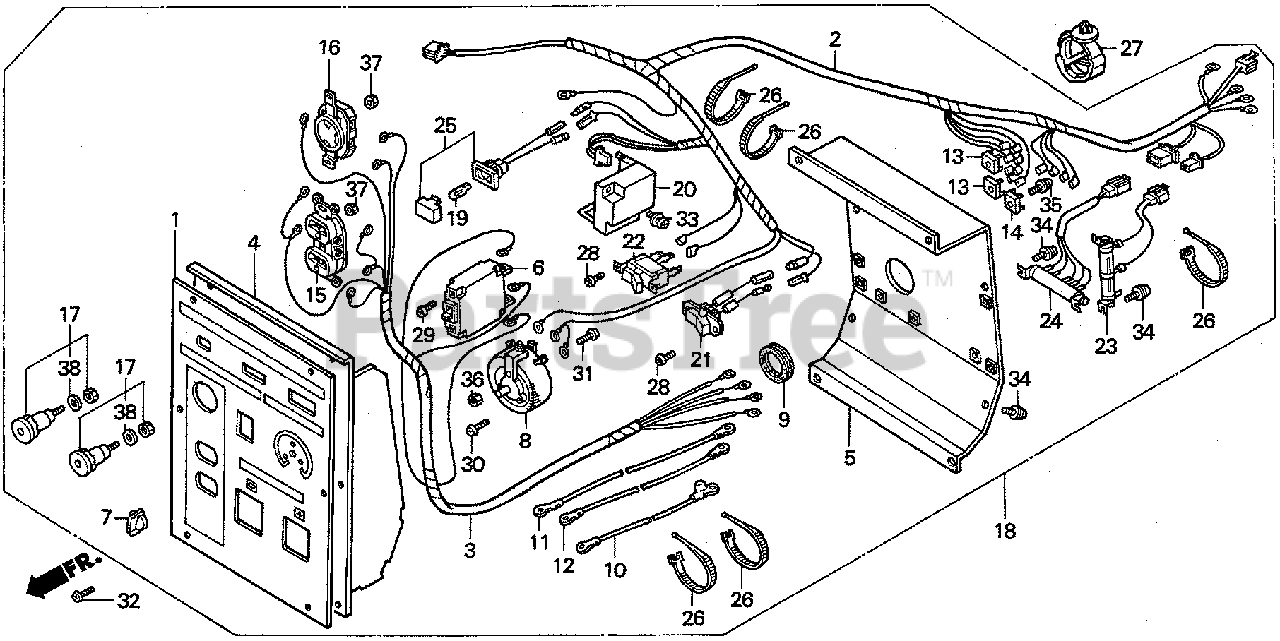

CONTROL PANEL Parts Diagram

  • Title

1

Honda 31406-ZB8-830

PLATE, CONTROL INDICATION (EXW-A)

Note: Use up to Frame SN 1000485.

$

$

Not available

1

Honda 31406-ZB8-831

PLATE, CONTROL INDICATION (EXW-A)

Note: Use from Frame SN 1000486.

$

$

Currently unavailable

2

Honda 31418-ZB7-831

HARNESS ASSY., CONTROL (EXW-A)

$

$

Not available

3

Honda 31419-ZB8-831

HARNESS ASSY., A.C. OUTPUT (EXW-A)

$

$

Not available

4

Honda 31420-ZB7-831

PANEL, CONTROL (EXW-A)

$

$

Not available

5

Honda 31425-ZB7-813

COVER, CONTROL

$

$

Not available

6

Honda 31430-ZB4-610

BREAKER, CIRCUIT (33.5A)

$244.99

$

Usually ships in 3-6 days

0

7

Honda 31461-ZA1-811

KNOB, ADJUSTING

$21.99

$

Usually ships in 3-6 days

0

8

Honda 31466-ZB4-811

RESISTOR, VARIABLE

$248.99

$

Usually ships in 3-6 days

0

9

Honda 31482-ZA1-811

GROMMET, MAIN WIRE

$

$

Not available

10

Honda 31596-ZB8-831

WIRE ASSY. (+)

$

$

Not available

11

Honda 31597-ZB8-831

WIRE ASSY. (-)

$

$

Not available

12

Honda 31598-ZB8-811

WIRE ASSY. (REACTOR)

$

$

Not available

13

Honda 31710-ZA0-003

STACK, DIODE

$65.99

$

Usually ships in 3-6 days

0

14

Honda 31710-ZA1-811

DIODE

$82.99

$

Usually ships in 3-6 days

0

15

Honda 32330-ZA1-631

RECEPTACLE (20A-125V)
(Superseded to 32330-Z03-C31)

$47.99

$

In Stock, only 1 left!

0

16

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$32.99

$

Usually ships in 3-6 days

0

17

Honda 32335-ZA1-830

RECEPTACLE, PANEL

$63.99

$

In Stock, only 3 left!

0

18

Honda 32340-ZB8-831

PANEL ASSY., CONTROL (EXW-A)

$

$

Not available

19

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) (TSD30) (STANLEY)

$3.49

$

In Stock, only 1 left!

0

20

Honda 36210-ZB4-811

THROTTLE UNIT ASSY., AUTO

$253.99

$

Usually ships in 3-6 days

0

21

Honda 36214-ZB4-003

SEE PART DETAILS - SUP; SWITCH ASSY., AUTO THROTTLE
(Superseded to 36214-ZB4-013)

$

$

Not available

22

Honda 36222-ZB4-811

SWITCH ASSY.

$93.99

$

Usually ships in 3-6 days

0

23

Honda 37503-ZB4-811

RESISTOR, ADJUSTABLE

$

$

Not available

24

Honda 37505-ZB7-813

RESISTOR

$

$

Not available

25

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$40.99

$

Usually ships in 3-6 days

0

26

Honda 90672-ZB7-811

TIE, CABLE

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$3.99

$

Usually ships in 3-6 days

0

28

Honda 93500-03006-0H

SCREW, PAN (3X6)

$0.99

$

In Stock, only 4 left!

0

29

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 10

0

30

Honda 93500-04010-0G

SCREW, PAN (4X10)

$0.99

$

Usually ships in 3-6 days

0

31

Honda 93500-04010-3C

SCREW, PAN (4X10)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 93500-05010-0G

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, Qty 5

0

34

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

34

Honda 93893-04010-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X10)

$

$

Currently unavailable

35

Honda 93893-04020-08

SCREW-WASHER (4X20)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 94001-04390-0S

NUT, HEX. (4MM)

$0.99

$

Usually ships in 3-6 days

0

37

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 10

0

38

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 4 left!

0
