EXW171S A (EB5) - Honda Generator, Made in Japan (SN: EB5-1000001 - EB5-9999999) STARTER MOTOR Parts Diagram

Generator, Made in Japan

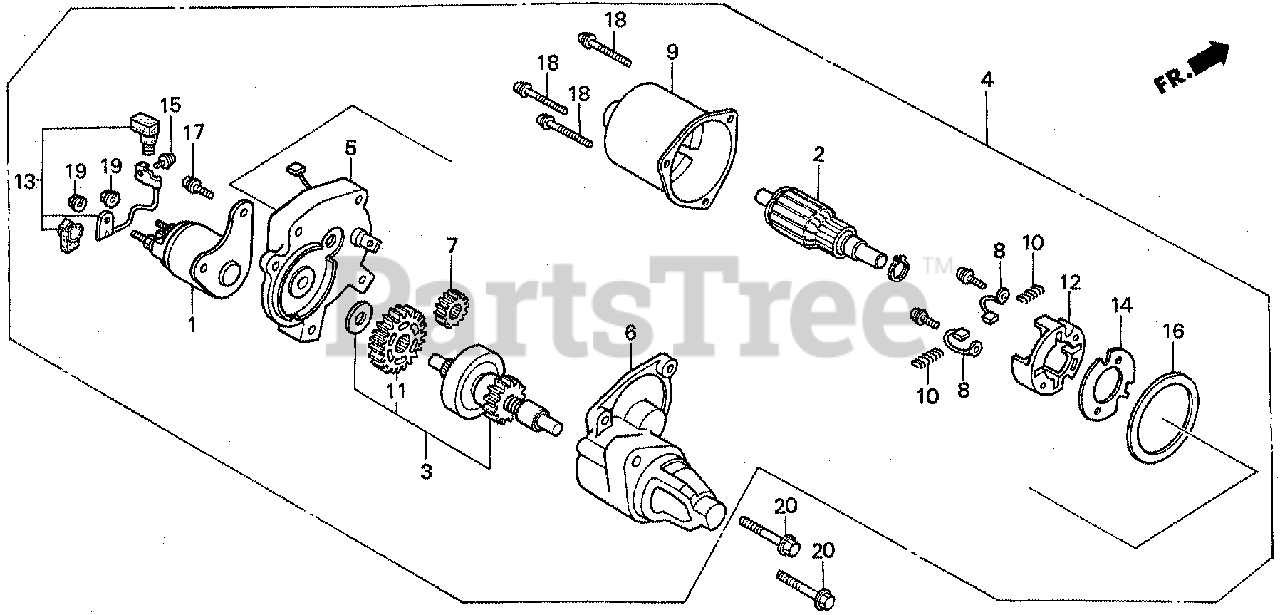

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

$165.99

$

In Stock, only 1 left!

0

2

Honda 31206-ZE3-003

ARMATURE

$111.99

$

Usually ships in 3-6 days

0

3

Honda 31207-ZE3-003

CLUTCH, OVERRUNNING

$391.99

$

Usually ships in 3-6 days

0

4

Honda 31210-ZB8-013

SEE PART DETAILS - SUP; MOTOR UNIT, STARTER

$

$

Currently unavailable

5

Honda 31211-ZE2-003

BRACKET, CENTER

$126.99

$

Usually ships in 3-6 days

0

6

Honda 31212-ZE3-003

BRACKET, FR.

$177.99

$

Usually ships in 3-6 days

0

7

Honda 31213-ZE2-003

GEAR, DRIVE PINION

$64.99

$

Usually ships in 3-6 days

0

8

Honda 31215-ZE2-003

BRUSH

$14.99

$

In Stock, only 2 left!

0

9

Honda 31218-ZE3-003

YOKE

$59.99

$

Usually ships in 3-6 days

0

10

Honda 31219-ZE2-003

SPRING, BRUSH RETURN

$4.99

$

In Stock, only 2 left!

0

11

Honda 31222-ZE3-791

GEAR, REDUCTION

$41.99

$

Usually ships in 3-6 days

0

12

Honda 31231-ZE2-003

HOLDER, BRUSH

$17.99

$

Usually ships in 3-6 days

0

13

Honda 31232-ZB7-003

WIRE, WATER COVER

$15.99

$

Usually ships in 3-6 days

0

14

Honda 31233-ZE2-003

INSULATOR

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90110-ZE2-003

SCREW-WASHER (4X6)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 91601-ZE2-003

GASKET

$8.99

$

Usually ships in 3-6 days

0

17

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93892-05032-08

SCREW-WASHER (5X3)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$2.49

$

Usually ships in 3-6 days

0
