EXZ 2401S BC - RedMax Maxtreme Brushcutter Attachment (SN: 60100000 & Above) (2007-04) 003 - BC ATTACHMENT Parts Diagram

Maxtreme Brushcutter Attachment

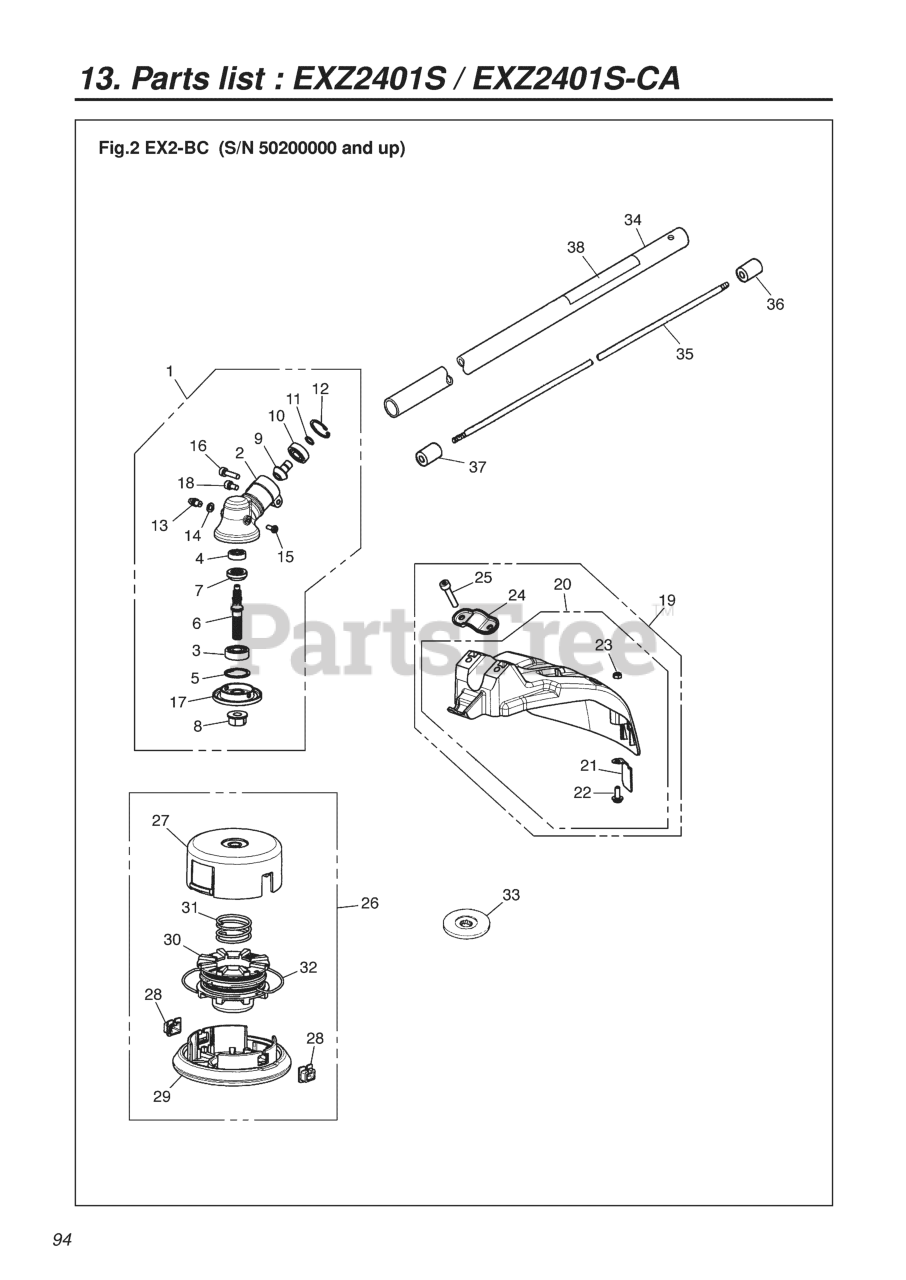

003 - BC ATTACHMENT Parts Diagram

  • Title

1

RedMax T319531001

GEARCASE ASSY.
(Superseded to 526056701)

$170.99

$

Usually ships in 3-10 days

0

2

RedMax 848B2062A0

GEARCASE
(Superseded to 526056701)

$170.99

$

Usually ships in 3-10 days

0

3

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

4

RedMax 0600000626

BEARING (RPLS T3300-13521)
(Superseded to 516127701)

$15.99

$

Usually ships in 3-10 days

0

5

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

6

RedMax T319513210

SHAFT
(Superseded to 512553301)

$27.99

$

Usually ships in 3-10 days

0

7

RedMax T330093250

GEAR
(Superseded to 512574101)

$40.99

$

Usually ships in 3-10 days

0

8

RedMax T300213260

NUT
(Superseded to 521804001)

$3.99

$

In Stock, Qty 20+

0

9

RedMax T319513310

PINION
(Superseded to 510997501)

$42.99

$

Usually ships in 3-10 days

0

10

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

11

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

12

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

14

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 022500410

BOLT

$0.17

$

Usually ships in 3-10 days

0

16

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, Qty 12

0

17

RedMax T330091340

HOLDER (A)
(Superseded to 512573801)

$

$

Not available

18

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

19

RedMax T319524003

GUARD ASSY. (RPLS -24002)
(Superseded to 512553601)

$

$

Not available

20

RedMax T319524103

GUARD COMP.
(Superseded to 521820101)

$

$

Not available

21

RedMax T300224121

BLADE (RPLS T3002-24120)
(Superseded to 521804401)

$7.49

$

In Stock, Qty 9

0

22

RedMax T496051431

SCREW TORX
(Superseded to 502843901)

$6.49

$

In Stock, Qty 20+

0

23

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 7

0

24

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

25

RedMax T495063000

BOLT, TORX
(Superseded to 512846401)

$8.99

$

In Stock, Qty 11

0

26

RedMax PT104 PLUS

TAP HEAD COMP.

$

$

Not available

27

RedMax T318915112

CASE (REPLACES -15111)
(Superseded to 521540701)

$18.99

$

In Stock, only 3 left!

0

28

RedMax T318915191

EYELET
(Superseded to 512549801)

$3.99

$

In Stock, Qty 20+

0

29

RedMax T318915132

COVER (REPLACES -15131)
(Superseded to 521819401)

$13.99

$

In Stock, Qty 20+

0

30

RedMax T318915142

HOLDER, CORD (REPLACES-15141)
(Superseded to 521819501)

$17.99

$

In Stock, Qty 20+

0

31

RedMax T318915160

SPRING
(Superseded to 521819601)

$3.99

$

In Stock, Qty 20+

0

32

RedMax T318915180

CORD
(Superseded to 521819701)

$

$

Not available

33

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$12.99

$

Usually ships in 3-10 days

0

34

RedMax T310212100

PIPE COMPLETE
(Superseded to 512529501)

$72.99

$

Usually ships in 3-10 days

0

35

RedMax T310212210

SHAFT
(Superseded to 521813601)

$36.99

$

Usually ships in 3-10 days

0

36

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$34.99

$

In Stock, only 2 left!

0

37

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.99

$

Usually ships in 3-10 days

0

38

RedMax 848J8R90R0

PLATE, NAME
(Superseded to 511522301)

$4.46

$

Usually ships in 3-10 days

0
