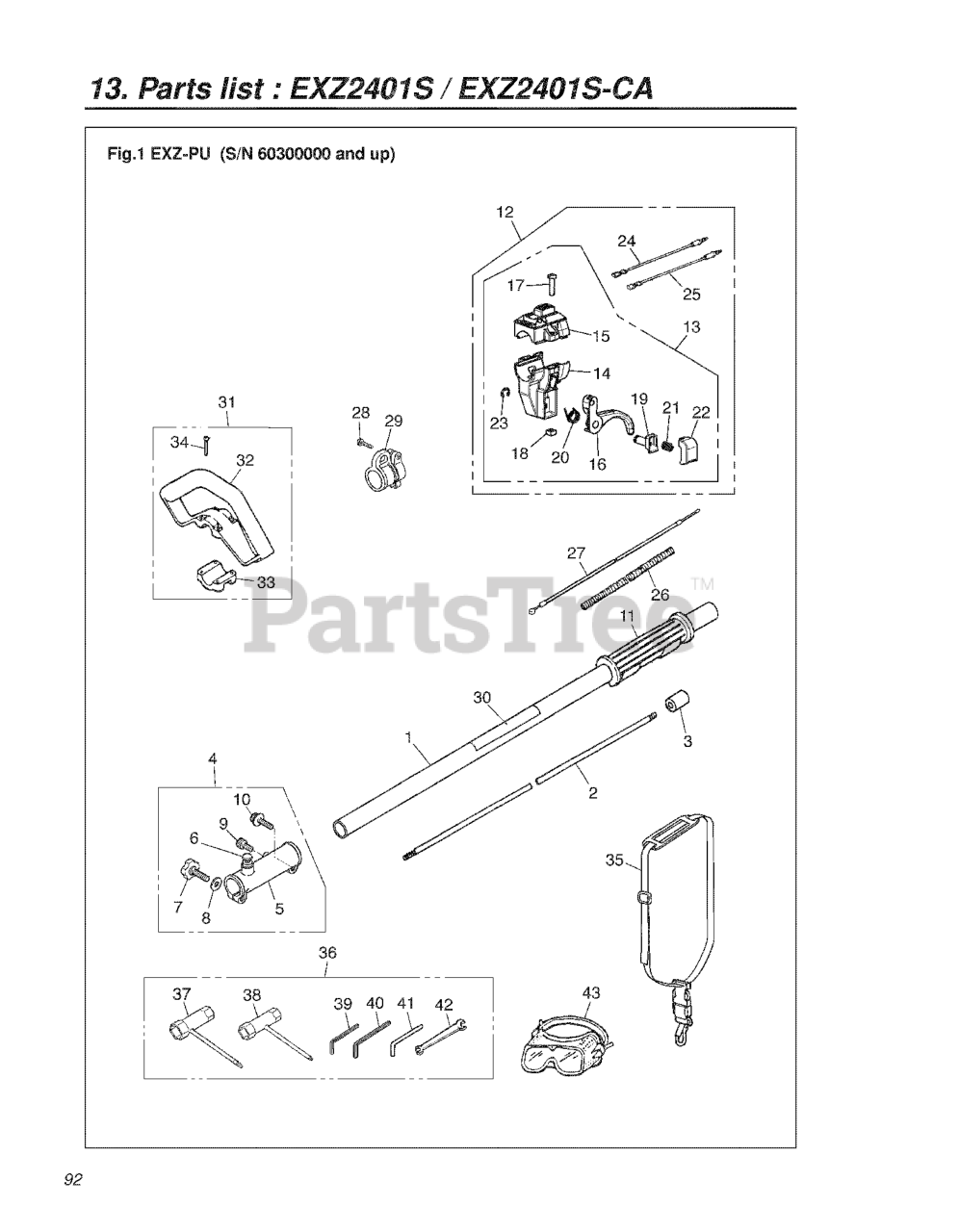

EXZ 2401S - RedMax Maxtreme Split-Boom Powerhead (SN: 60100000 & Above) SHAFT Parts Diagram

Maxtreme Split-Boom Powerhead

SHAFT Parts Diagram

  • Title

1

RedMax 511521501

PIPE-C
(Superseded to 588677001)

$78.99

$

In Stock, only 1 left!

0

2

RedMax 521811601

SHAFT

$40.99

$

Usually ships in 3-10 days

0

3

RedMax 515513001

SPACER

$9.99

$

Usually ships in 3-10 days

0

4

RedMax 521812301

JOINT, PIPE ASSY
(Superseded to 587453301)

Note: . 5 6 7-10

$42.99

$

Usually ships in 3-10 days

0

5

RedMax 521812401

JOINT
(Superseded to 580886001)

$27.99

$

Usually ships in 3-10 days

0

6

RedMax 512527001

STOPPER

$14.99

$

Usually ships in 3-10 days

0

7

RedMax 515513401

KNOB BOLT

$

$

Not available

8

RedMax 505169801

WASHER

$4.99

$

In Stock, only 3 left!

0

9

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 3 left!

0

10

RedMax 506614901

BOLT

$3.99

$

In Stock, only 1 left!

0

11

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$8.93

$

Usually ships in 3-10 days

0

12

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

Note: . 13 14 15-25

$

$

Not available

13

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

Note: . 14 15 16-23

$60.99

$

Usually ships in 3-10 days

0

14

RedMax 521419001

STAY

$14.99

$

Usually ships in 3-10 days

0

15

RedMax 521531101

COVER COMP (RPLS 611014410-02)

$15.99

$

Usually ships in 3-10 days

0

16

RedMax 570907201

THROTTLE TRIGGER

$14.99

$

Usually ships in 3-10 days

0

17

RedMax 521419301

SCREW

$

$

Not available

18

RedMax 521419401

NUT

$

$

Not available

19

RedMax 521419501

SHAFT

$2.49

$

Usually ships in 3-10 days

0

20

RedMax 521419601

SPRING

$

$

Not available

21

RedMax 521419701

SPRING

$

$

Not available

22

RedMax 570912901

T303214410090

$7.49

$

Usually ships in 3-10 days

0

23

RedMax 521419901

E-RING

$

$

Not available

24

RedMax 521803401

CORD (A), BLACK

$7.99

$

In Stock, only 1 left!

0

25

RedMax 521803501

CORD (B), RED

$8.99

$

Usually ships in 3-10 days

0

26

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 512498601

CABLE-C

$18.99

$

Usually ships in 3-10 days

0

28

RedMax 521822101

HANGER COMP.

$

$

Not available

29

RedMax 510482301

SCREW

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 511521601

OBSOLETE - PLATE, NAME***

$

$

Not available

31

RedMax 521465701

HANDLE ASSEMBLY(RPL 397414300)

Note: . 32 33 34

$

$

Not available

32

RedMax 515625501

HANDLE

$

$

Not available

33

RedMax 515625601

CLAMP

$6.49

$

Usually ships in 3-10 days

0

34

RedMax 510482701

SCREW

$

$

Not available

35

RedMax 512572001

HARNESS-ASSY***
(Superseded to 521651101)

$15.99

$

Usually ships in 3-10 days

0

36

RedMax 521532601

TOOL SET

$

$

Not available

37

RedMax 521533101

SOCKET
(Superseded to 521532701)

$12.99

$

Usually ships in 3-10 days

0

38

RedMax 512508601

$

$

Not available

39

RedMax 505311901

WRENCH

$

$

Not available

40

RedMax 516144701

Wrench Tool

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 505312001

BAR

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

43

RedMax 521804701

$

$

Not available
