EXZ 2450S HE - RedMax Maxtreme Hedge Trimmer Attachment (SN: 60100000 & Above) (2009-07) 001 - HE UNIT Parts Diagram

Maxtreme Hedge Trimmer Attachment

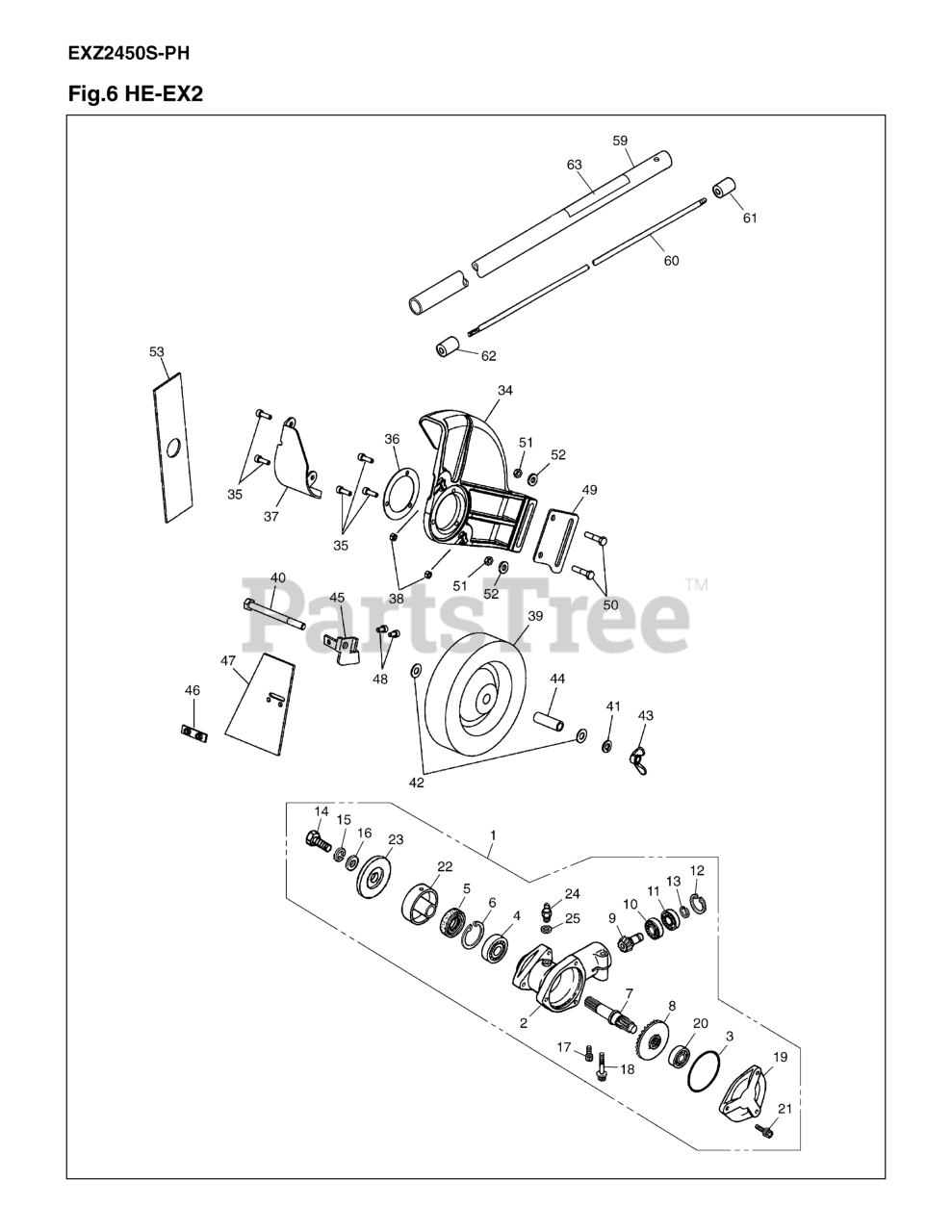

001 - HE UNIT Parts Diagram

  • Title

1

RedMax 636713000

GEARCASE ASSY
(Superseded to 515589801)

$278.99

$

Usually ships in 3-10 days

0

2

RedMax 636713110

GEARCASE
(Superseded to 574018601)

$

$

Not available

3

RedMax 636713150

O-RING
(Superseded to 521452701)

$

$

Not available

4

RedMax 0600006201

BEARING

$

$

Not available

5

RedMax 318013141

SEAL
(Superseded to 520889801)

$6.49

$

In Stock, only 2 left!

0

6

RedMax 0406503212

SNAP RING
(Superseded to 504121001)

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 354113212

SHAFT
(Superseded to 514366401)

$36.99

$

Usually ships in 3-10 days

0

8

RedMax 636713130

GEAR
(Superseded to 521452501)

$

$

Not available

9

RedMax 636713140

PINION
(Superseded to 521452601)

$36.99

$

In Stock, only 3 left!

0

10

RedMax 0600000609

BEARING
(Superseded to 505169201)

$10.99

$

In Stock, only 3 left!

0

11

RedMax 0600100609

BEARING
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

12

RedMax 0406502412

SNAP RING
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 321013330

SNAP RING
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 357933260

BOLT
(Superseded to 505169601)

$7.49

$

In Stock, Qty 20+

0

15

RedMax 331043210

WASHER
(Superseded to 505169701)

$4.99

$

In Stock, only 3 left!

0

16

RedMax 0164330823

WASHER
(Superseded to 505169801)

$4.99

$

In Stock, only 3 left!

0

17

RedMax 0125230512

BOLT
(Superseded to 516070401)

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 354013260

BOLT
(Superseded to 521171901)

$3.99

$

In Stock, only 1 left!

0

19

RedMax 636713120

COVER
(Superseded to 521452401)

$

$

Not available

20

RedMax 0600006000

BEARING
(Superseded to 505170201)

$9.99

$

In Stock, only 4 left!

0

21

RedMax 335031470

BOLT
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 354113241

HOLDER (A)
(Superseded to 514366601)

$26.99

$

In Stock, only 2 left!

0

23

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$12.99

$

In Stock, Qty 6

0

24

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 0164120608

WASHER, FITTING
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 848A4766A1

GUARD
(Superseded to 510981002)

$53.99

$

In Stock, only 2 left!

0

35

RedMax T320724130

BOLT
(Superseded to 505171801)

$7.49

$

In Stock, Qty 10

0

36

RedMax T320724150

PLATE
(Superseded to 505171901)

$10.99

$

In Stock, only 4 left!

0

37

RedMax T320724210

PROTECTOR
(Superseded to 526059401)

$9.99

$

In Stock, Qty 15

0

38

RedMax 028010504

NUT
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

39

RedMax 848A4766P0

WHEEL
(Superseded to 505172501)

$42.99

$

In Stock, only 2 left!

0

40

RedMax 022400865

BOLT
(Superseded to 505172601)

$4.99

$

In Stock, only 4 left!

0

41

RedMax 0160220825

WASHER, SPRING
(Superseded to 505172901)

$4.99

$

In Stock, only 1 left!

0

42

RedMax 0164220810

WASHER
(Superseded to 516077101)

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 0154050840

WING NUT

$

$

Not available

44

RedMax T320725160

SLEEVE
(Superseded to 505173301)

$12.99

$

In Stock, Qty 6

0

45

RedMax 848A4766U0

BRACKET
(Superseded to 505173501)

$8.99

$

In Stock, Qty 20+

0

46

RedMax T320724320

PLATE

$2.18

$

Usually ships in 3-10 days

0

47

RedMax T320724330

RUBBER

$15.99

$

In Stock, Qty 20+

0

48

RedMax 0125230510

BOLT
(Superseded to 505169901)

$4.99

$

In Stock, only 3 left!

0

49

RedMax 848A4766R0

Main Bracket
(Superseded to 505174601)

$10.99

$

In Stock, only 1 left!

0

50

RedMax 022400840

BOLT
(Superseded to 505174701)

$4.99

$

In Stock, Qty 5

0

51

RedMax 848A4766T0

NUT
(Superseded to 505174801)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 0164220810

WASHER
(Superseded to 516077101)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 636715110

BLADE

$

$

Not available

59

RedMax T310512100

PIPE COMPLETE
(Superseded to 521814001)

$72.99

$

Usually ships in 3-10 days

0

60

RedMax T310212210

SHAFT
(Superseded to 521813601)

$36.99

$

Usually ships in 3-10 days

0

61

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$34.99

$

In Stock, only 2 left!

0

62

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.99

$

Usually ships in 3-10 days

0

63

RedMax 848A4J90R0

PLATE, NAME

$

$

Not available
