EXZ 2460S PH - RedMax Maxtreme Split-Boom Powerhead (SN: 00800101 & Above) (2010-09) 002 - BC-EX3 Parts Diagram

Maxtreme Split-Boom Powerhead

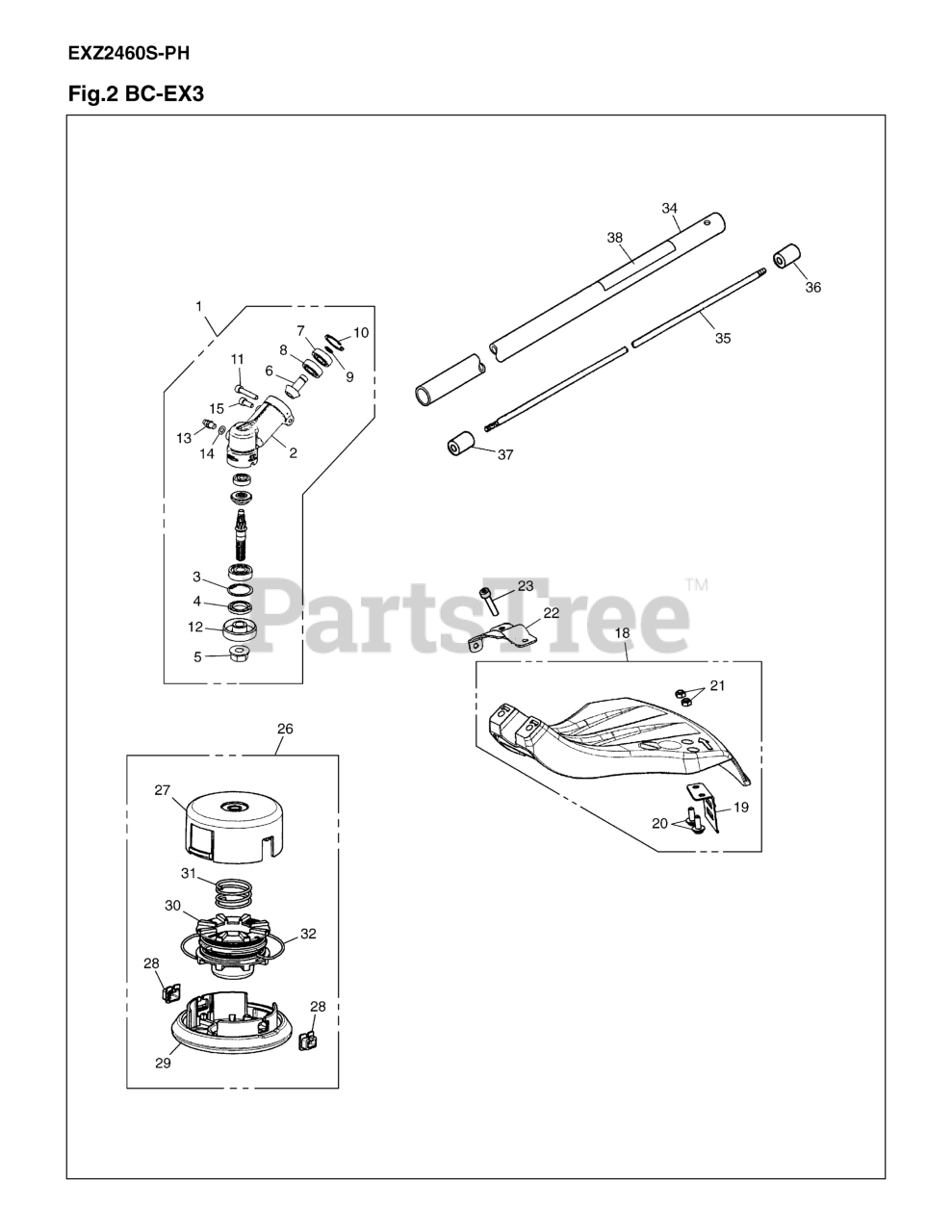

002 - BC-EX3 Parts Diagram

  • Title

1

RedMax 574716301

GEARCASE ASSY

$121.99

$

In Stock, only 1 left!

0

2

RedMax 574267501

GEARCASE

$37.99

$

Usually ships in 3-10 days

0

3

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 4 left!

0

4

RedMax 521197001

SEAL, OIL(RPLS 3
(Superseded to 514382501)

$7.49

$

Usually ships in 3-10 days

0

5

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

6

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

7

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

8

RedMax 516127601

BEARING
(Superseded to 505169201)

$10.99

$

In Stock, only 3 left!

0

9

RedMax 521821801

SNAP RING

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 521861501

BOLT, TORX
(Superseded to 512845701)

$3.99

$

In Stock, only 1 left!

0

12

RedMax 521470501

HOLDER (A)
(Superseded to 515632501)

$31.99

$

In Stock, only 1 left!

0

13

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

14

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

18

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, Qty 8

0

19

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

20

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, Qty 20+

0

21

RedMax 521000601

NUT

$4.99

$

In Stock, Qty 7

0

22

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

26

RedMax 970370901

4
(Superseded to 511010601)

$59.99

$

In Stock, only 3 left!

0

27

RedMax 521540701

CASE

$18.99

$

In Stock, only 3 left!

0

28

RedMax 521819801

EYELET
(Superseded to 512549801)

$3.99

$

In Stock, Qty 20+

0

29

RedMax 521819401

COVER (RPLS T318

$13.99

$

In Stock, Qty 20+

0

30

RedMax 521819501

HOLDER, CORD (RP

$17.99

$

In Stock, Qty 20+

0

31

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

32

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

34

RedMax 521813501

PIPE COMPLETE
(Superseded to 512529501)

$72.99

$

Usually ships in 3-10 days

0

35

RedMax 521813601

SHAFT

$36.99

$

Usually ships in 3-10 days

0

36

RedMax 521402501

JOINT, SHAFT (RP
(Superseded to 515512901)

$34.99

$

In Stock, only 2 left!

0

37

RedMax 521402601

SPACER
(Superseded to 515513001)

$9.99

$

Usually ships in 3-10 days

0

38

RedMax 576777701

PLATE NAME

$

$

Not available
