EY200D20060 (EY20) - Subaru Robin Engine 500 Cooling & Starting Parts Diagram

Engine

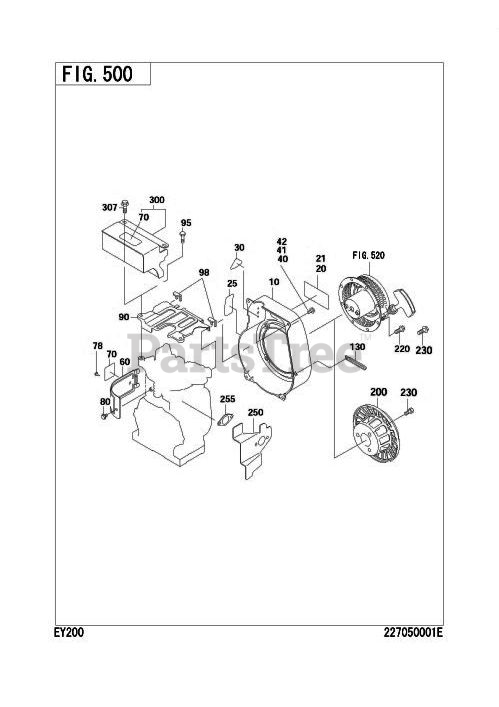

500 Cooling & Starting Parts Diagram

  • Title

10

Subaru Robin 227-51676-06

BLOWER HOUSING CP

Note: Start Code: 2374. Remarks: D BEIGE 3.

$150.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 227-51304-06

BLOWER HOUSING CP

Note: End Code: 2373. Remarks: D ROBIN YELLOW.

$140.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 227-91701-13

LABEL(TRADE MARK)

Note: Remarks: 50X95.

$6.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 073-20012-90

LABEL(STOP SWITCH)

Note: End Code: 3073.

$9.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Remarks: M6X1.0X14DX12L.

$4.49

$

In Stock, only 3 left!

0

60

Subaru Robin 227-52601-03

CYLINDER BAFFLE

$52.99

$

Usually ships in 2-12 days

0

70

227-91802-13

LABEL(ENGINE NAME)

Note: Remarks: 38X38 JAPAN.

$

$

Not available

80

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Remarks: M6X1.0X14DX12L.

$4.49

$

In Stock, only 3 left!

0

90

Subaru Robin 227-52801-01

HEAD COVER CP

Note: End Code: 2373. Remarks: ROBIN YELLOW.

$31.99

$

Usually ships in 2-12 days

0

90

227-52843-01

HEAD COVER CP

Note: Start Code: 2374. Remarks: BEIGE 3.

$

$

Not available

95

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Remarks: M6X1.0X14DX12L.

$4.49

$

In Stock, only 3 left!

0

220

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$4.49

$

In Stock, only 2 left!

0
