EY200DD8200 (EY20) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

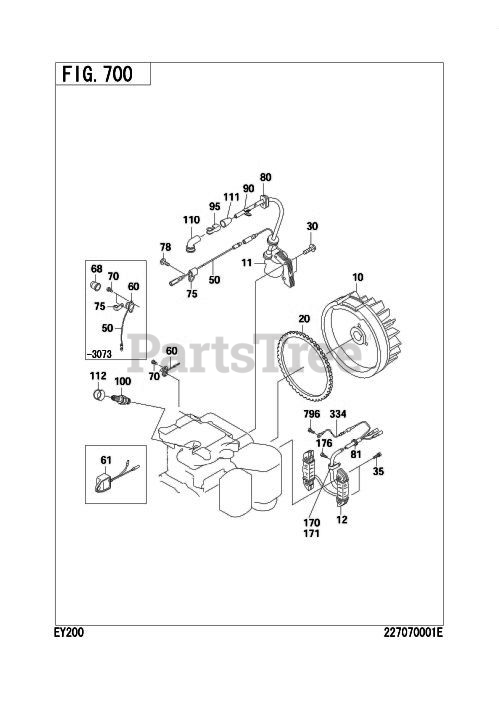

700 Electric Device Parts Diagram

  • Title

10

Subaru Robin 227-79230-01

FLYWHEEL CP

Note: Interchangable with 227-70120-08.

$245.71

$

Usually ships in 2-12 days

0

11

Subaru Robin 227-79430-31

IGNITION COIL CP

$356.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 227-79630-01

CHARGE COIL CP

Note: Interchangable with 227-70145-08.

$77.33

$

Usually ships in 2-12 days

0

30

Subaru Robin 011-00601-21

FLANGE BOLT

Note: Remarks: M6X1.0X13.5DX30L.

$1.49

$

Usually ships in 2-12 days

0

35

Subaru Robin 001-17062-50

BOLT & WASHER AY

$0.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 214-73201-01

WIRE 1 CP

Note: End Code: 3073. Remarks: L=60 BLACK.

$3.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 066-20000-11

STOP BUTTON

Note: End Code: 3073. Interchangable with 066-99002-17.

$

$

Not available

60

Subaru Robin 066-00003-60

SWITCH AY

Note: Start Code: 3074. End Code: 3531.

$

$

Not available

60

Subaru Robin 066-00003-61

SWITCH AY

Note: Start Code: 3532.

$

$

Not available

70

Subaru Robin 015-00400-10

TAPPING SCREW

Note: End Code: 3073. Remarks: M4X8L.

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 015-00400-90

TAPPING SCREW

Note: Start Code: 3074. Remarks: M4X10L.

$0.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 214-79002-01

CLAMP CP

Note: Remarks: 10DXM6X12BX0.6T.

$3.99

$

Usually ships in 2-12 days

0

100

Subaru Robin 065-01400-31

SPARK PLUG

Note: End Code: 486. Remarks: NGK B6HS.

$

$

Not available

100

Subaru Robin 065-01410-30

SPARK PLUG L86C

Note: Start Code: 487. Remarks: L86C.

$4.99

$

In Stock, only 2 left!

0

110

Subaru Robin 065-50000-51

SPARK PLUG CAP

$11.99

$

Usually ships in 2-12 days

0

170

Subaru Robin 214-79002-01

CLAMP CP

Note: Start Code: 1462. Remarks: 10DXM6X12BX0.6T.

$3.99

$

Usually ships in 2-12 days

0

170

Subaru Robin 206-75501-01

CLAMP CP

Note: End Code: 1461. Remarks: 10DXM6X12BX0.6T.

$3.99

$

Usually ships in 2-12 days

0

171

Subaru Robin 226-75101-03

CLAMP

$1.99

$

Usually ships in 2-12 days

0

176

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$2.99

$

In Stock, only 2 left!

0
