EY350DK7120 (EY35) - Subaru Robin Engine 611 Fuel & Lubricant Parts Diagram

Engine

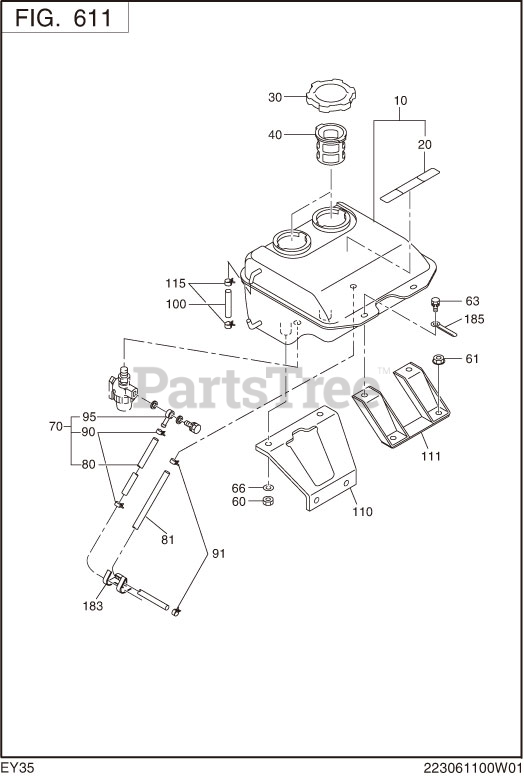

611 Fuel & Lubricant Parts Diagram

  • Title

10

Subaru Robin 224-60201-01

FUEL TANK CP

$349.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 073-20017-10

LABEL(CAUTION)

Note: Remarks: 17X125 JAPAN-ENGLISH.

$5.49

$

Usually ships in 2-12 days

0

30

Subaru Robin 043-04300-15

FUEL TANK CAP CP

Note: Remarks: 42.5DX68DX14H.

$

$

Not available

40

Subaru Robin 064-13600-10

FUEL FILTER

Note: Remarks: 36DX46DX43H.

$13.99

$

In Stock, only 2 left!

0

60

Subaru Robin 002-18080-00

NUT

Note: Remarks: M8X1.25X6.5H.

$1.49

$

In Stock, only 1 left!

0

61

Subaru Robin 002-38100-00

FLANGE NUT

Note: Start Code: 5287. Remarks: M10X1.25X19DX9H.

$2.99

$

Usually ships in 2-12 days

0

63

Subaru Robin 001-15082-00

BOLT & WASHER AY

Note: Start Code: 5287.

$0.99

$

Usually ships in 2-12 days

0

66

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

70

Subaru Robin 224-62605-01

FUEL PIPE 5 CP

$24.99

$

Usually ships in 2-12 days

0

80

085-10401-10

RUBBER PIPE

Note: Remarks: 4.5DX11DX330L. Interchangable with 085-10400-00.

$

$

Not available

81

085-10407-70

RUBBER PIPE

Note: Remarks: 4.5DX11DX570L. Interchangable with 085-10400-00.

$

$

Not available

90

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Remarks: 10DX8BX1T.

$2.99

$

Usually ships in 2-12 days

0

91

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Remarks: 10DX8BX1T.

$2.99

$

Usually ships in 2-12 days

0

95

Subaru Robin 052-10601-10

BANJO

Note: Remarks: 6DX7.2DX25L.

$6.99

$

Usually ships in 2-12 days

0

100

Subaru Robin 085-00502-70

VINYL PIPE

Note: Remarks: 5DX8DX150L. Interchangable with 085-00500-00.

$22.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 224-61701-01

TANK BRACKET 1 CP

$148.99

$

Usually ships in 2-12 days

0

111

Subaru Robin 224-61801-11

TANK BRACKET 2 CP

Note: Start Code: 4241.

$66.99

$

Usually ships in 2-12 days

0

115

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Remarks: 7.8DX6BX0.6T.

$2.49

$

Usually ships in 2-12 days

0

183

Subaru Robin 214-65101-01

CLAMP CP

$4.99

$

Usually ships in 2-12 days

0

185

Subaru Robin 056-60001-70

CLAMP

Note: Remarks: 8.5DX10BX95LX0.7T.

$1.49

$

Usually ships in 2-12 days

0
