EYK 19540 RD (2988143) - Murray 40" Lawn Tractor, Seco (2009) Back Plate Group Parts Diagram

40" Lawn Tractor, Seco

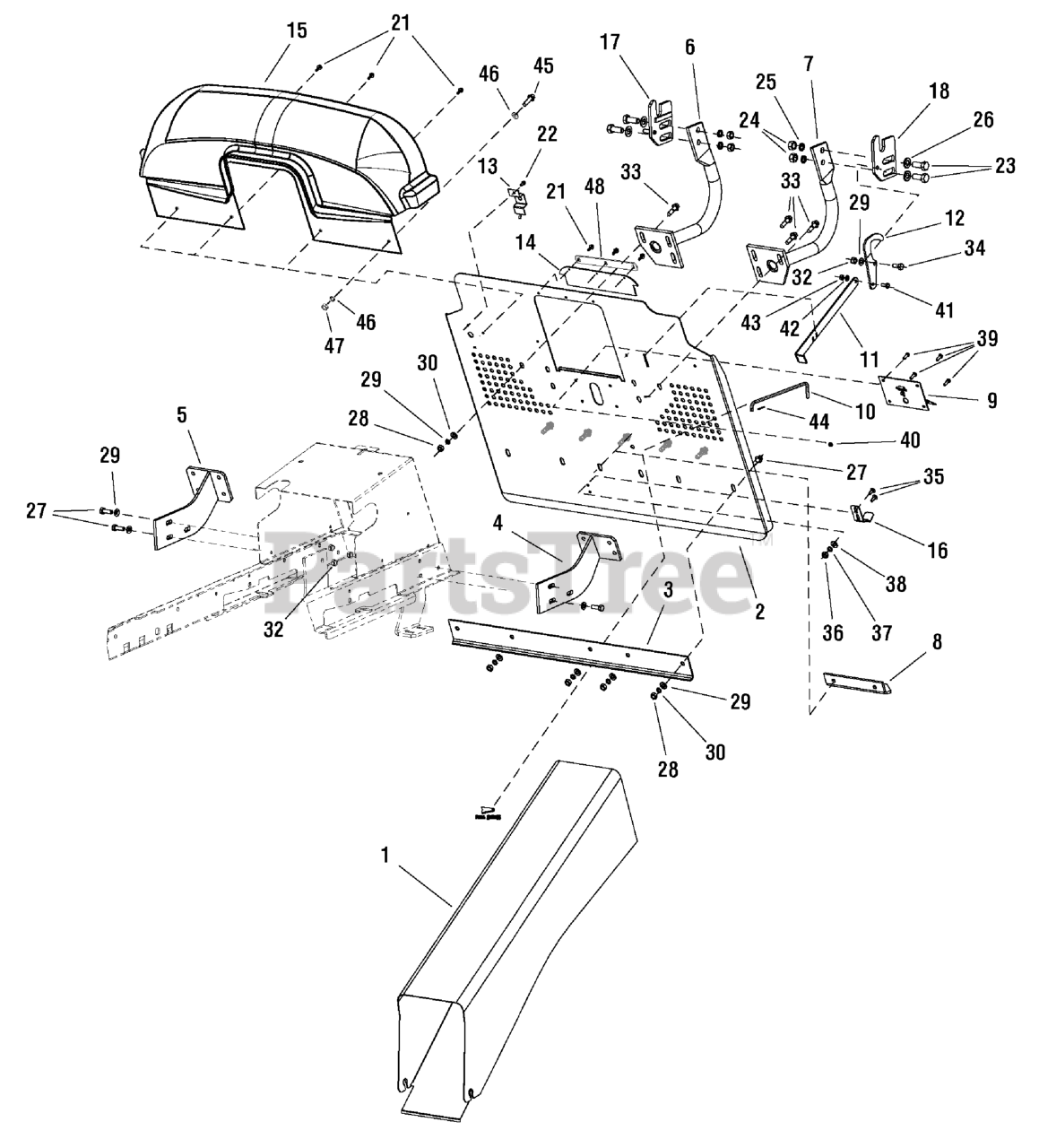

Back Plate Group Parts Diagram

  • Title

1

Murray 1735985YP

TUNNEL

$

$

Not available

2

Murray 1735849YP

BACK PLATE

$

$

Not available

3

Murray 1735876YP

BRACE

$

$

Not available

4

Murray 1735906YP

HOLDER, Back Plate Left

$

$

Not available

5

Murray 1735907YP

HOLDER, Back Plate Right

$

$

Not available

6

Murray 1735908YP

HOLDER, Collector Right

$

$

Not available

7

Murray 1735909YP

HOLDER, Collector, Left

$

$

Not available

8

Murray 1735903YP

HITCH

$

$

Not available

9

Murray 1735975YP

SWITCH, Full Collector

$

$

Not available

10

Murray 1735977YP

TIE ROD, Bypass 0-8045-260

$

$

Not available

11

Murray 1735978YP

TIE ROD, Latch

$

$

Not available

12

Murray 1735915YP

LATCH

$

$

Not available

13

Murray 1735887YP

COVER, Switch

$

$

Not available

14

Murray 1735939YP

PAD, Rubber

$

$

Not available

15

Murray 1735983YP

TRANSITION PART, Plastic

$

$

Not available

16

Murray 1735970YP

SPRING, Collector, Lock

$

$

Not available

17

Murray 1735904YP

HOLDER, Adjustable, Right

$

$

Not available

18

Murray 1735905YP

HOLDER, Adjustable, Left

$

$

Not available

21

Murray 1735961YP

SCREW, Self Tap, 5.5 x 19

$

$

Not available

22

Murray 1735960YP

SCREW, ST 4.2 x 9.5

$

$

Not available

23

Murray 1735857YP

BOLT, M12 x 30

$

$

Not available

24

Murray 1735927YP

NUT, M12

$

$

Not available

25

Murray 1735993YP

WASHER, 13

$

$

Not available

26

Murray 1735992YP

WASHER, 12

$

$

Not available

27

Murray 1735871YP

BOLT, M8 x 25

$

$

Not available

28

Murray 1735934YP

Nut, M8

$

$

Not available

29

Murray 1735989YP

WASHER, 8.4

$

$

Not available

30

Murray 1736000YP

WASHER, 8

$

$

Not available

32

Murray 1735935YP

NUT, M8

$

$

Not available

33

Murray 1735872YP

BOLT, M8 x 30

$

$

Not available

34

Murray 1735868YP

BOLT, M8 x 20

$

$

Not available

35

Murray 1735860YP

BOLT, M5 x 16

$

$

Not available

36

Murray 1735930YP

NUT, M5

$

$

Not available

37

Murray 1735997YP

WASHER, 5.3

$

$

Not available

38

Murray 1735996YP

WASHER, 5

$

$

Not available

39

Murray 1735861YP

BOLT, M5 x 16

$

$

Not available

40

Murray 1735931YP

NUT, M5

$

$

Not available

41

Murray 1735865YP

BOLT, M6 x 16

$

$

Not available

42

Murray 1735998YP

WASHER, 6.4

$

$

Not available

43

Murray 1735933YP

NUT, M6

$

$

Not available

44

Murray 1735963YP

SPINDLE, 2 x 20

$

$

Not available

45

Murray 1735858YP

BOLT, M4 x 16

$

$

Not available

46

Murray 1735995YP

WASHER, 4.3

$

$

Not available

47

Murray 1735929YP

NUT, M4

$

$

Not available

48

Murray 1736500YP

PAD, Packing

$

$

Currently unavailable
