EYK 19540 RD (2988143) - Murray 40" Lawn Tractor, Seco (2009) Engine Group - 19.5HP & 22HP Briggs & Stratton Parts Diagram

40" Lawn Tractor, Seco

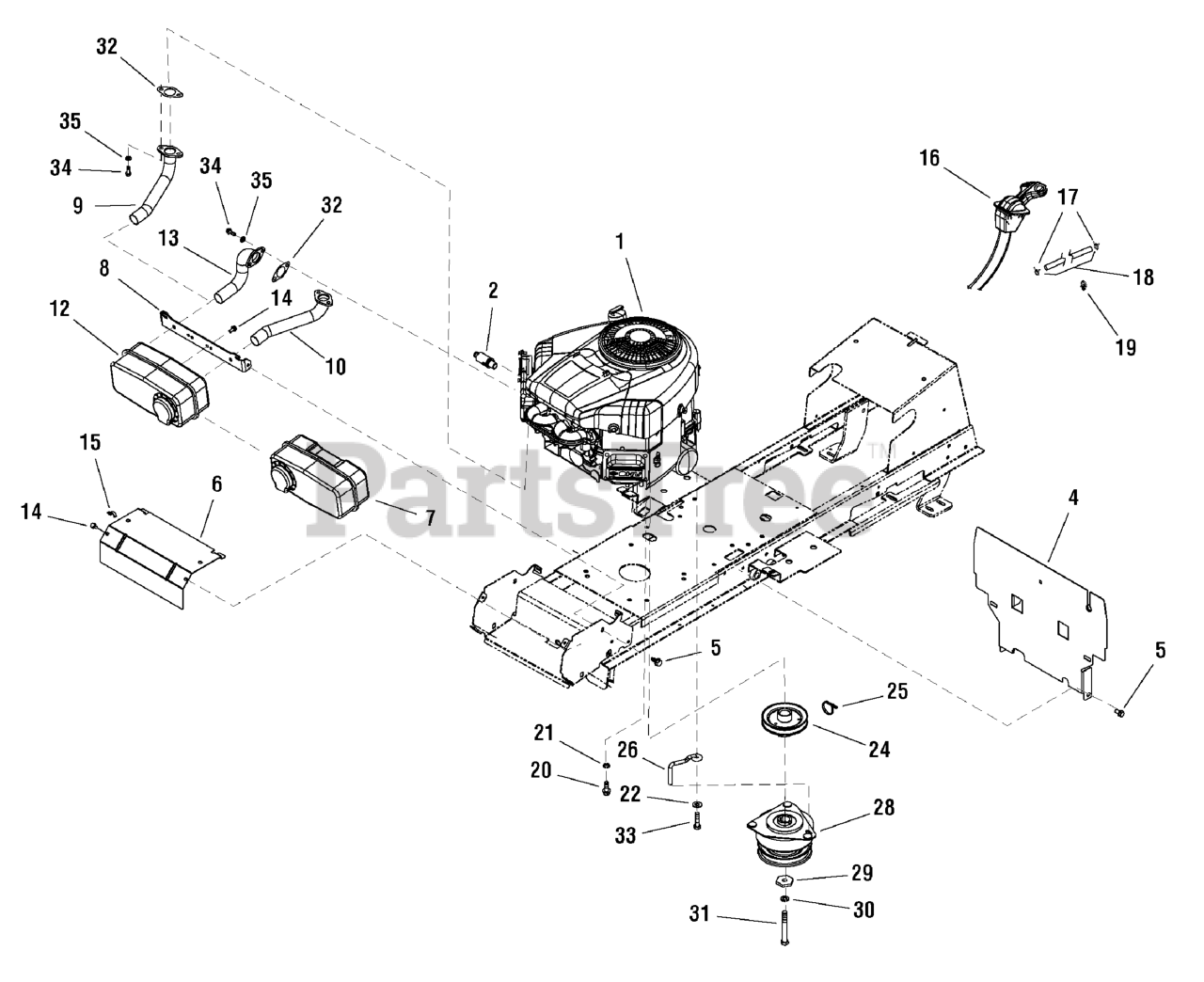

Engine Group - 19.5HP & 22HP Briggs & Stratton Parts Diagram

  • Title

1

Murray 31P677-0116-B1

ENGINE, 19.5HP B&S Intek Single

Note: (Engine Model: 31P677- 0116- B1)

$

$

Not available

1

Murray 441777-0128-B1

ENGINE, 22HP, B&S Intek Twin

Note: (Engine Model: 441777-0128-B1)

$

$

Not available

2

Murray 1717473SM

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

4

Murray 1735962YP

SHIELD, Heat

$

$

Not available

5

Murray 1930601SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

6

Murray 1727996SM

SHIELD, Heat
(Superseded to 7300918ASM)

Note: (19.5HP)

$48.99

$

Usually ships in 2-12 days

0

6

Murray 1727997SM

SHIELD, Heat
(Superseded to 1727997ASM)

Note: (22HP Twin)

$33.99

$

Usually ships in 2-12 days

0

7

Murray 1727994SM

MUFFLER, B&S Twin

Note: (22HP Twin)

$98.99

$

Usually ships in 2-12 days

0

8

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

9

Murray 1727979SM

PIPE, Exhaust R.H.

Note: (22HP Twin)

$37.99

$

In Stock, only 1 left!

0

10

Murray 1727980SM

PIPE, Exhaust L.H.

Note: (22HP Twin)

$37.99

$

In Stock, only 1 left!

0

12

Murray 1727993SM

MUFFLER, B&S Single

Note: (19.5HP)

$93.99

$

In Stock, only 4 left!

0

13

Murray 1728959SM

PIPE, Exhaust

Note: (19.5HP)

$34.99

$

Usually ships in 2-12 days

0

14

Murray 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

15

Murray 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 2 left!

0

16

Murray 1734504SM

THROTTLE CONTROL

Note: (19.5HP)

$93.99

$

Usually ships in 2-12 days

0

16

Murray 1734505SM

CONTROL, Throttle Twin

Note: (22HP Twin)

$97.99

$

In Stock, only 1 left!

0

17

Murray 1735883YP

Clamp, Hose UM5008

$

$

Currently unavailable

18

Murray 1735913YP

Hose, Fuel 1-9920-247

$

$

Not available

19

Murray 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

20

Murray 2827187SM

SCREW, Hex Washer Head Taptite 3/8-16 x 1
(Superseded to 704000)

Note: (19.5HP)

$4.99

$

In Stock, only 4 left!

0

21

Murray 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

In Stock, only 1 left!

0

22

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 4 left!

0

25

Murray 1735980YP

TIE

$

$

Not available

26

Murray 1732875SM

RETAINER, Clutch
(Superseded to 1737421AYP)

$12.99

$

Usually ships in 2-12 days

0

28

Murray 1732833SM

CLUTCH, Electric (LONG OGURA)
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

29

Murray 1708264SM

WASHER, Hex, 7/16, Black

$8.99

$

In Stock, Qty 7

0

30

Murray 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

31

Murray 1960649SM

CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5

$7.49

$

Usually ships in 2-12 days

0

32

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

33

Murray 2828635SM

SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

34

Murray 1936228SM

CAPSCREW, Hex Socket Head 5/16-18 x 3/4 G8

$4.49

$

In Stock, only 3 left!

0

35

Murray 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
