EZ 24 T (966659701) - Husqvarna 48" Zero-Turn Mower (2010-12) FUEL SYSTEM Parts Diagram

48" Zero-Turn Mower

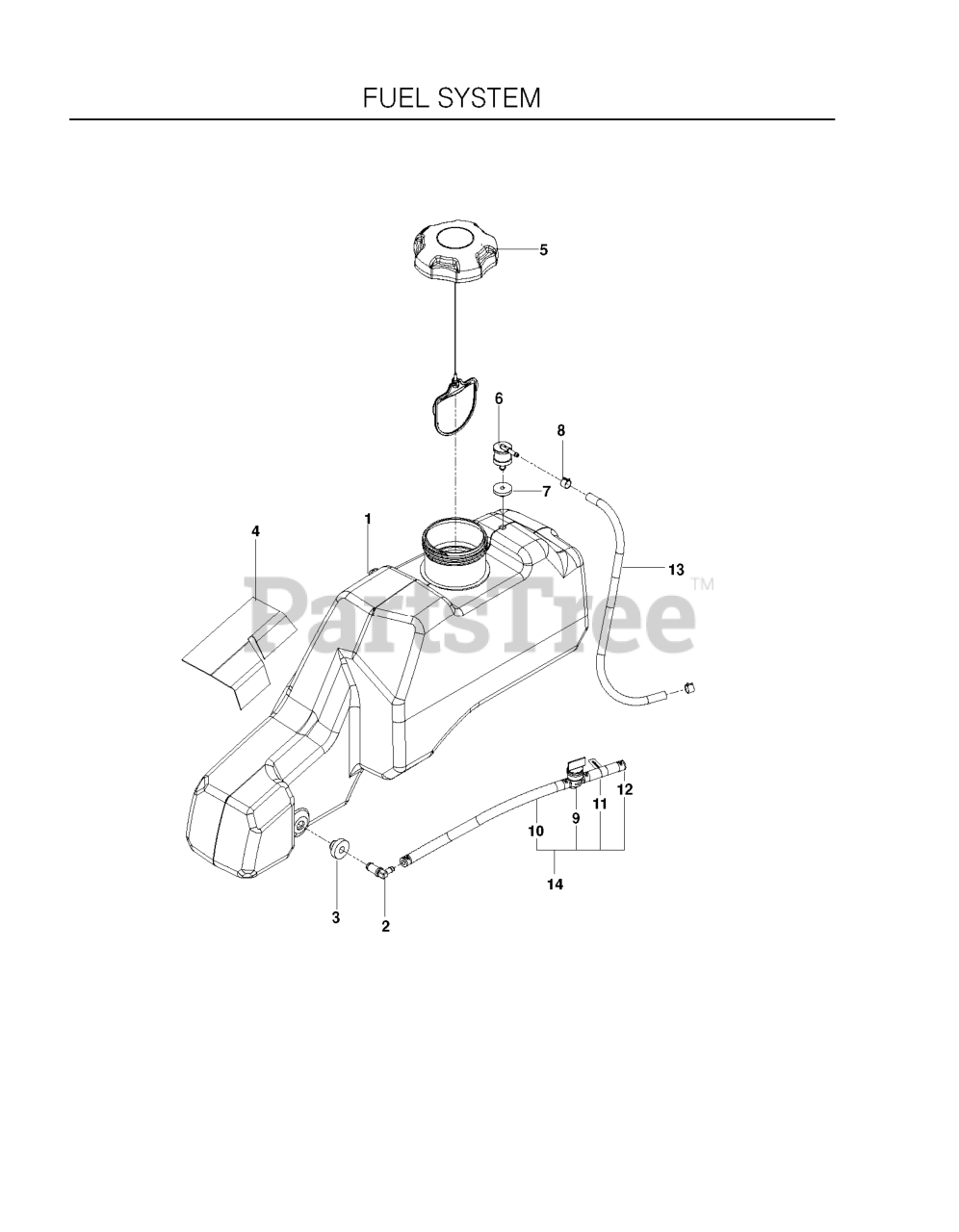

FUEL SYSTEM Parts Diagram

  • Title

5

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 8

0

8

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 20+

0

1

Husqvarna 576369401

TANK, FUEL, RT-EPA
(Superseded to 589924706)

$157.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

4

Husqvarna 522559101

SHIELD, HEAT

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505215101

FUEL LINE 3"

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574521305

HOSE, FUEL, 3/16" X 20"

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0
