EZ 4624 (968999657) - Husqvarna 46" Zero-Turn Mower (2008-08) Engine Kohler Parts Diagram

46" Zero-Turn Mower

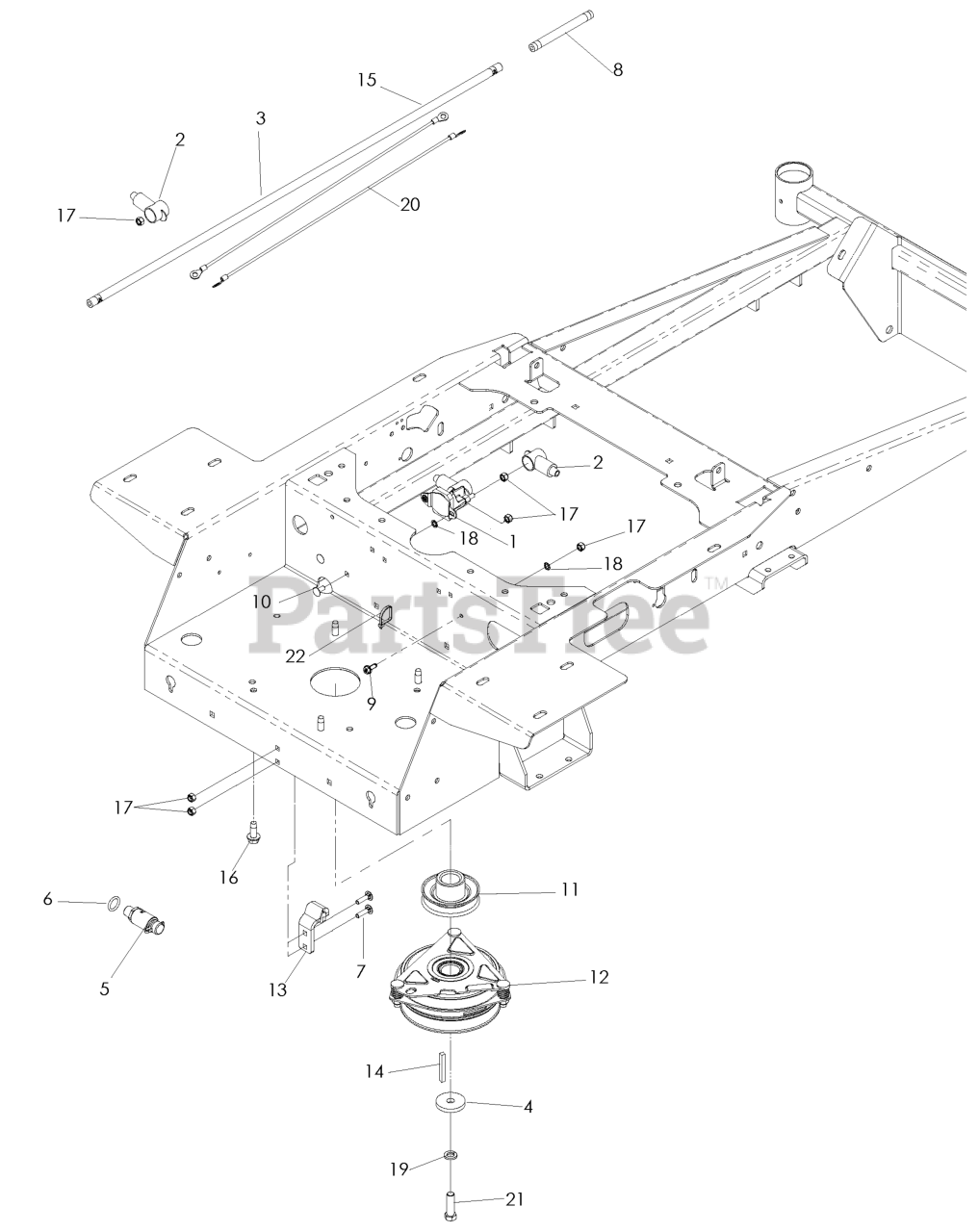

Engine Kohler Parts Diagram

  • Title

1

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

2

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

3

Husqvarna 539105280

HOSE 35"

$

$

Not available

4

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

5

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

6

Husqvarna 539109556

WASHER 5/16 EXT STAR

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$3.49

$

In Stock, only 3 left!

0

8

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539113436

PULLEY, DRIVE
(Superseded to 525435002)

$

$

Not available

12

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$569.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539113441

TIE DOWN, CLUTCH

$

$

Not available

14

Husqvarna 539910210

KEY 1/4 SQ X 2

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 10

0

21

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

22

Husqvarna 539976856

TIE, PLASTIC

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

Note: NOT SHOWN

$

$

Not available

Husqvarna 539105896

MUFFLER KOHLER GEN II

Note: NOT SHOWN

$

$

Not available
