EZ 4824 (965588401) - Husqvarna 48" Zero-Turn Mower (2009-09) 48 Inch Deck Parts Diagram

48" Zero-Turn Mower

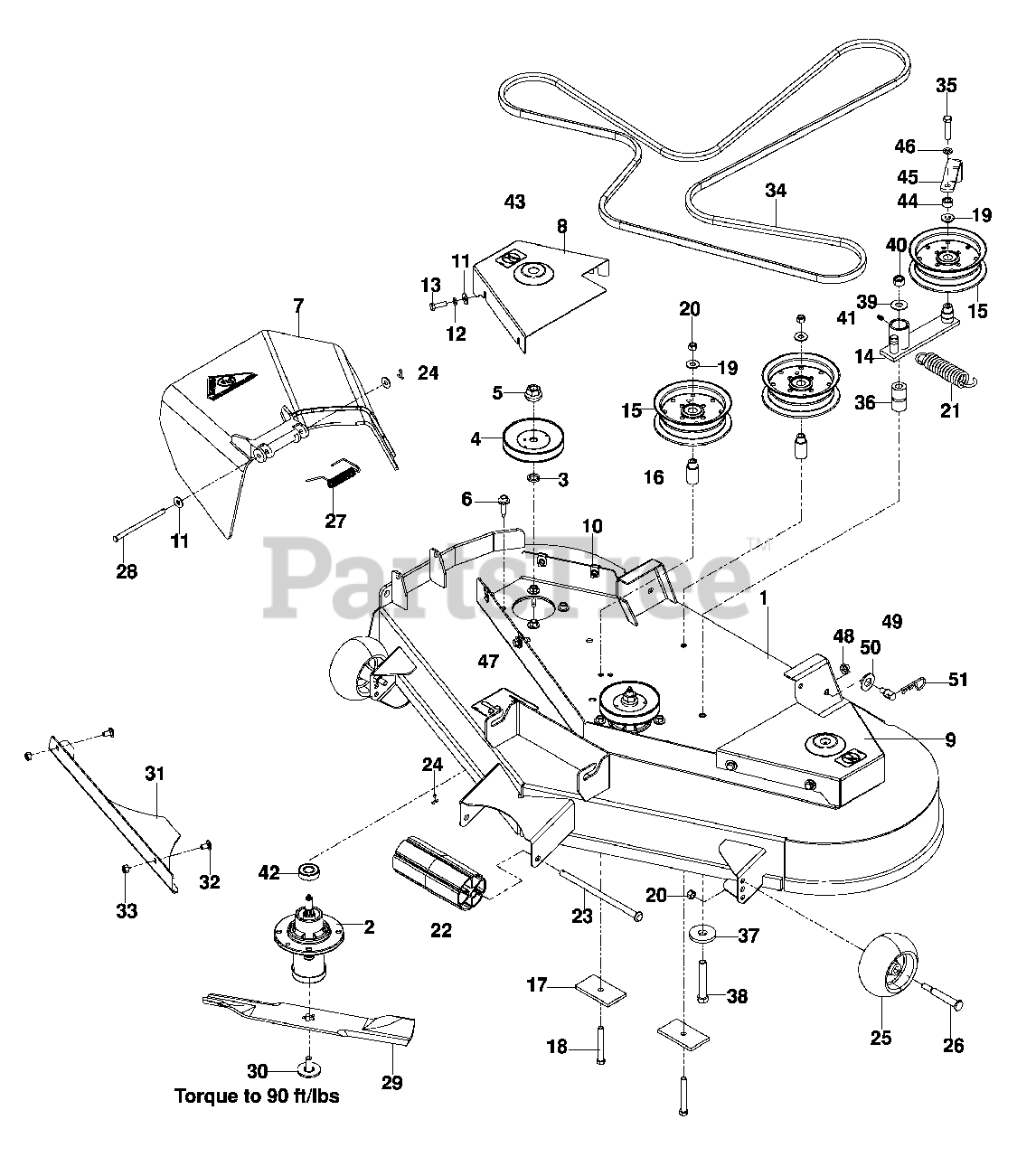

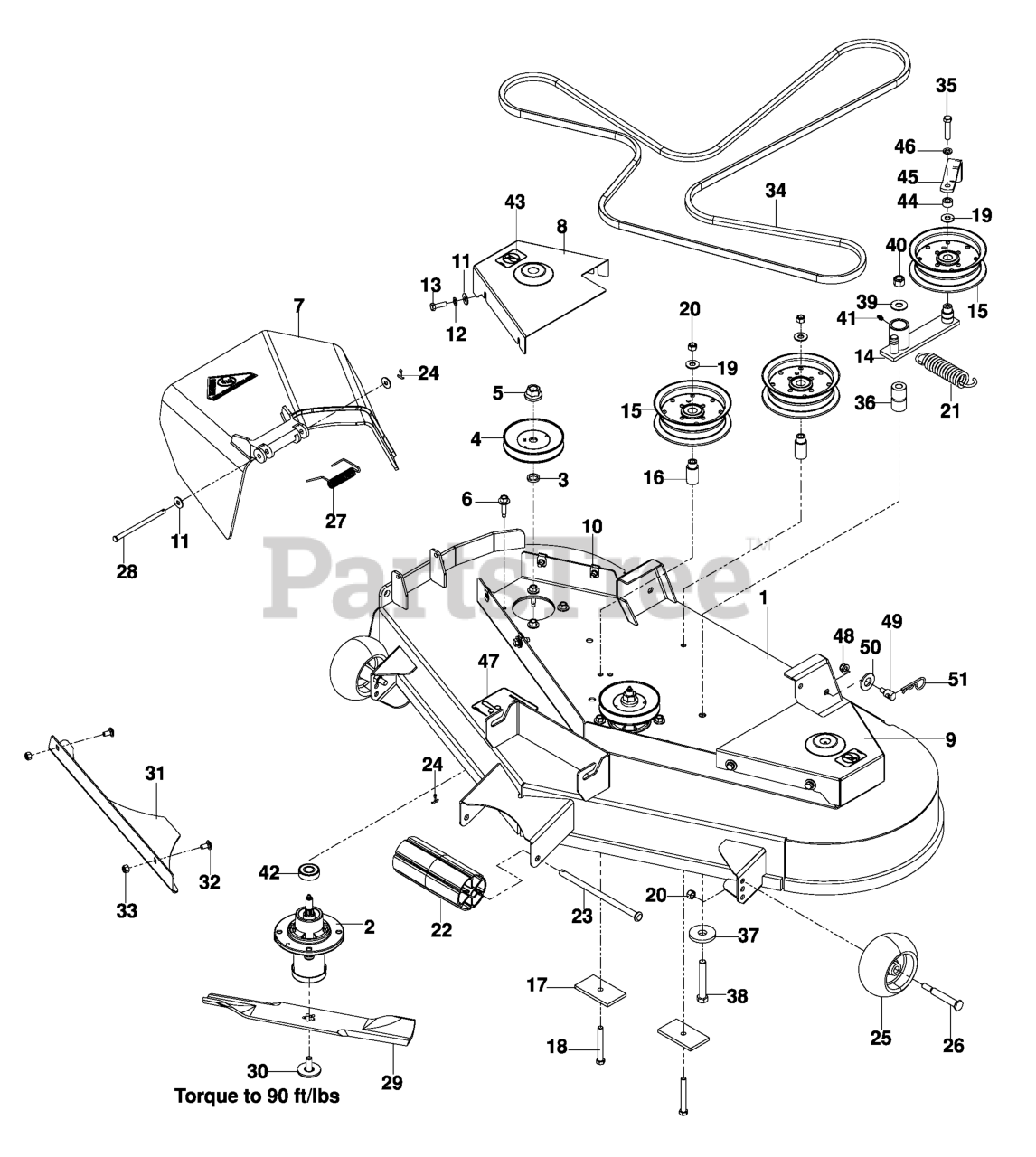

48 Inch Deck Parts Diagram

  • Title

1

Husqvarna 522744501

DECK, w/DECALS

$

$

Not available

2

Husqvarna 539112170

HOUSING ASSY

$74.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

WASHER, SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532173434

PULLEY, MANDREL 965880401

$18.99

$

In Stock, Qty 20+

0

5

Husqvarna 532112171

PULLEY, MANDREL 966495801
(Superseded to 539112171)

$10.99

$

In Stock, Qty 20+

0

6

Husqvarna 539107590

NUT 9/16 TOP CNTRLK
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539107630

SCREW 5/16 -18 x WSH HD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 539110732

CHUTE, DISCHARGE

$53.99

$

In Stock, Qty 20+

0

9

Husqvarna 539113411

BELT SHIELD, RT

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113413

BELT SHIELD, LT

$78.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 15

0

12

Husqvarna 539990692

WASHER 5/16 STD FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539112198

ARM, IDLER

$121.99

$

In Stock, only 1 left!

0

16

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112169

BUSHING, IDLER

$

$

Not available

18

Husqvarna 539103303

PAD, PAINTED
(Superseded to 539106504)

$

$

Not available

19

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

23

Husqvarna 532176066

ROLLER, NOSE

$9.99

$

In Stock, Qty 20+

0

24

Husqvarna 539107613

ROD, ROLLER, NOSE
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990365

PIN, COTTER 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

27

Husqvarna 539107608

BOLT ½-16 x 25/8 SHOULDER
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 17

0

29

Husqvarna 539110736

PIN, CLEVIS 5/16

$

$

Not available

30

Husqvarna 539113425

BLADE

$21.99

$

In Stock, Qty 20+

0

31

Husqvarna 539107522

BOLT 7/16 BLADE
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

32

Husqvarna 539113427

PLATE, CONFINEMENT

$

$

Not available

33

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539103013

BELT, DECK 965880401

$109.99

$

In Stock, Qty 5

0

36

Husqvarna 539109243

BELT, DECK 966495801

$85.99

$

In Stock, Qty 13

0

37

Husqvarna 539990730

HCS 3/8-16 x 1¾

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539103427

BUSHING, PIVOT

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

40

Husqvarna 539103433

HCS ½-13 x 3¼

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 539990550

WASHER ½ STD FLAT

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539114981

GUIDE, BELT

$

$

Not available

48

Husqvarna 539990118

WASHER 3/8 SPLT LOCK
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

50

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

51

Husqvarna 532195161

STUD

$

$

Not available

52

Husqvarna 539976982

WASHER 5/8, SAE

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0
