EZ 4824 (966612901) - Husqvarna 48" Zero-Turn Mower (2011-10) SEAT Parts Diagram

48" Zero-Turn Mower

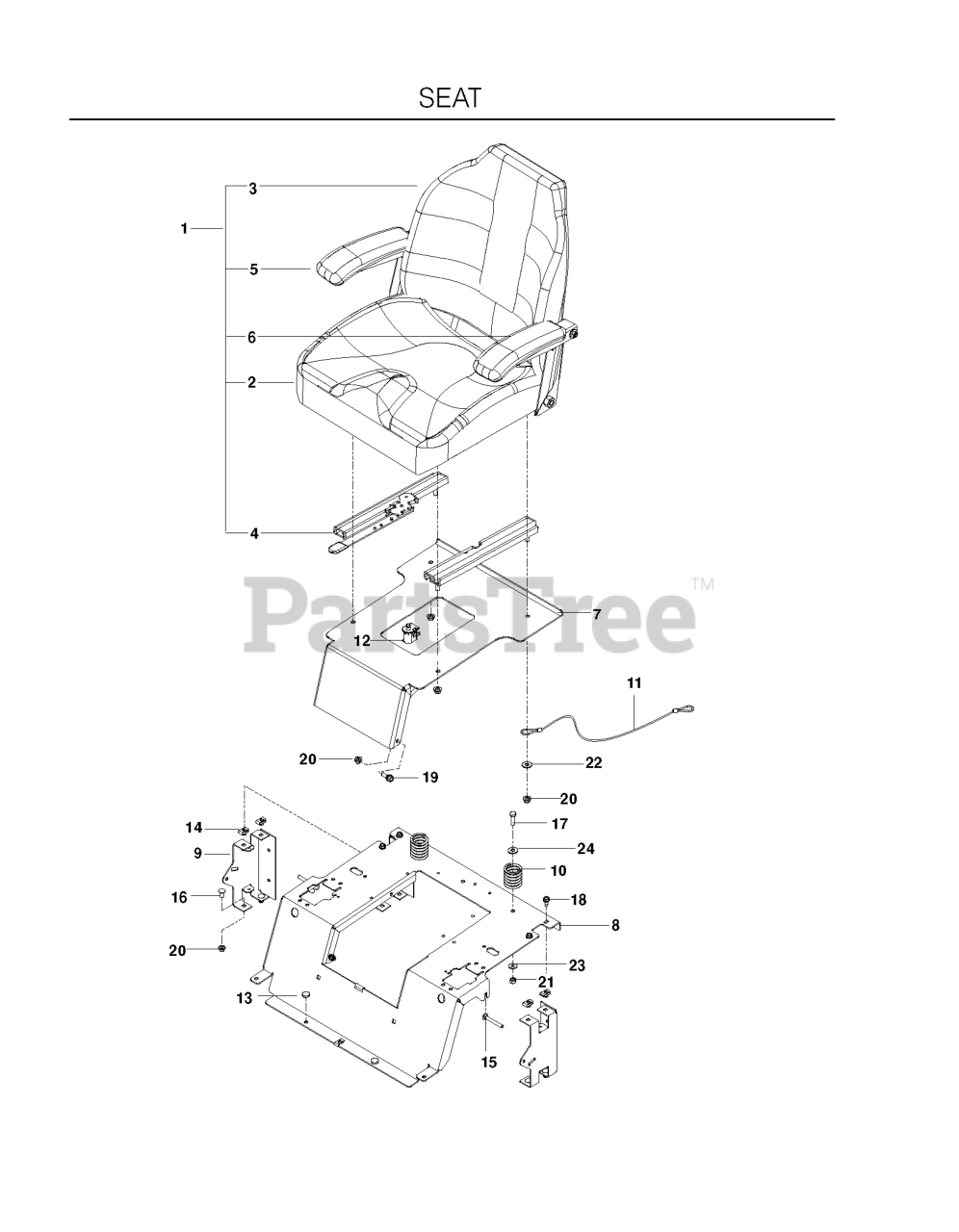

SEAT Parts Diagram

  • Title

1

Husqvarna 576867401

RP.SEAT.907.BLACK
(Superseded to 586188401)

$1017.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576867402

SEAT.CUSHION.907.DIXON.BLACK

$

$

Not available

3

Husqvarna 576867403

SEAT.BACK.907.DIXON.BLACK

$

$

Not available

4

Husqvarna 576702004

4"SINGLE LOCK TRACK SET W/HDWR

$239.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576702005

BLACK SELFSKIN-ARM PAD ONLY

$

$

Not available

6

Husqvarna 576702006

LEFT SELFSKINNED 907 ARM W/BRK

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576916802

PAN, SEAT ORG

$

$

Not available

9

Husqvarna 574522702

SUPPORT, REAR SEAT, BLACK
(Superseded to 580308202)

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 539103247

SEAT LANYARD

$20.99

$

In Stock, only 1 left!

0

12

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$15.99

$

In Stock, Qty 14

0

13

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 11

0

15

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD
(Superseded to 510422702)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

19

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0
