EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) 48 Inch Deck Parts Diagram

48" Zero-Turn Mower

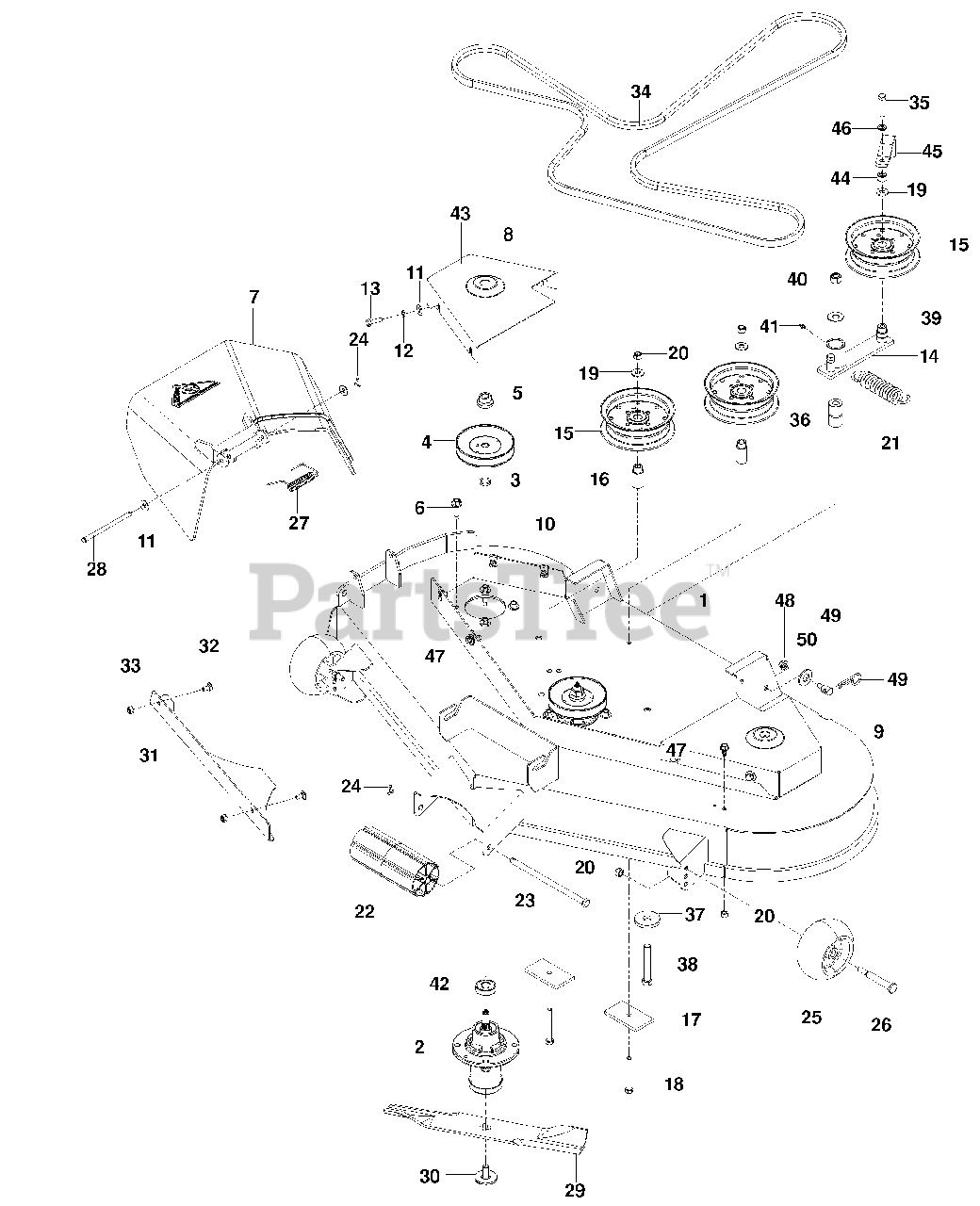

48 Inch Deck Parts Diagram

  • Title

1

Husqvarna 522744501

Deck, W/Decals

$

$

Not available

2

Husqvarna 539112170

Housing Assy

$74.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

Washer, Spacer
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532173434

Pulley, Mandrel

$18.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107590

Nut 9/16 Top Cntrlk
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539107630

Screw 5/16 -18 X Wsh Hd
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539110732

Chute, Discharge

$53.99

$

In Stock, Qty 20+

0

8

Husqvarna 539113411

Belt Shield, Rt

$78.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113413

Belt Shield, Lt

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

Retainer, U Type

$6.49

$

In Stock, Qty 15

0

11

Husqvarna 539990692

Washer 5/16 Std Flat
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990187

Washer 5/16 Slw
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990209

Hcs 5/16-18 X 1

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539112198

Arm, Idler

$121.99

$

In Stock, only 1 left!

0

15

Husqvarna 539132728

Pulley, Idler
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

16

Husqvarna 539112169

Bushing, Idler

$

$

Not available

17

Husqvarna 539103303

Pad, Painted
(Superseded to 539106504)

$

$

Not available

18

Husqvarna 539101341

Hcs 3/8-16 X 3

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990517

Washer 3/8 Flat Std

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539103256

Spring

$12.99

$

In Stock, Qty 20+

0

22

Husqvarna 532176066

Roller, Nose

$9.99

$

In Stock, Qty 20+

0

23

Husqvarna 532179127

Rod, Roller, Nose
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990365

Pin, Cotter 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

26

Husqvarna 539107608

Bolt 1/2-16 X 25/8 Shoulder
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539110735

Spring, Torsion
(Superseded to 596646001)

$3.99

$

In Stock, Qty 17

0

28

Husqvarna 539110736

Pin, Clevis 5/16

$

$

Not available

29

Husqvarna 539113425

Blade

$21.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107522

Bolt 7/16 Blade
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

31

Husqvarna 539113427

Plate, Confinement

$

$

Not available

32

Husqvarna 539990799

Rhsnb 5/16-18 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539103013

Belt, Deck

$109.99

$

In Stock, Qty 5

0

35

Husqvarna 539990730

Hcs 3/8-16 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539103427

Bushing, Pivot

$7.49

$

In Stock, Qty 6

0

37

Husqvarna 539102243

Washer, Support

$

$

Not available

38

Husqvarna 539103433

Hcs 1/2-13 X 3 1/4

$4.99

$

In Stock, Qty 11

0

39

Husqvarna 539990550

Washer 1/2 Std Flat

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101331

Nut 1/2 Hex Nyloc
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 539112050

Bearing, Ball

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 539976989

Hairpin #4

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539923515

Spacer

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539114981

Guide, Belt

$

$

Not available

46

Husqvarna 539990118

Washer 3/8 Splt Lock
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539133027

Screw 3/8-16 X 3/4 Thd Frm

$0.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

49

Husqvarna 532195161

Stud

$

$

Not available

50

Husqvarna 539976982

Washer 5/8 Sae

$4.99

$

In Stock, only 2 left!

0
