EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) Frame Parts Diagram

48" Zero-Turn Mower

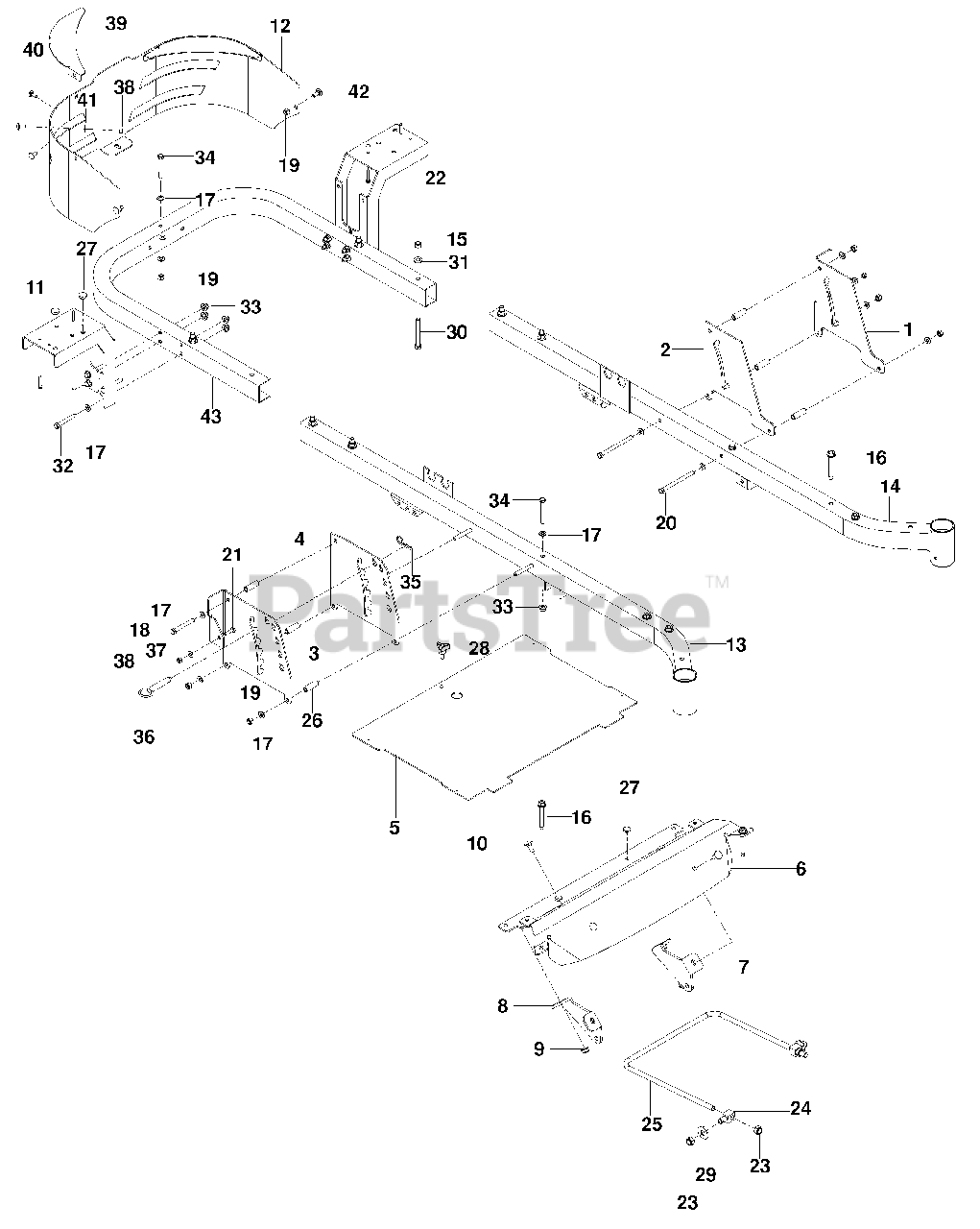

Frame Parts Diagram

  • Title

1

Husqvarna 510261802

Plate, Outer Brake Blk

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

Plate, Brake Latch Blk

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245602

Plate, Deck Height Blk

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

Plate, Deck Height Blk

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

Foot Plate W/Decals

$157.99

$

In Stock, only 1 left!

0

6

Husqvarna 522719502

Foot Rest Org

$132.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

Mount, Strut, Rt, Blk

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

Mount, Strut, Lt, Blk

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

10

Husqvarna 539990645

Rhsnb 3/8-16 X 1

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510225902

Support, Fender

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 516016302

Guard, Wide Engine Org

$

$

Not available

13

Husqvarna 510177503

Frame, Front Rt Org
(Superseded to 589283402)

$68.99

$

In Stock, only 1 left!

0

14

Husqvarna 510177403

Frame, Front Lt Org
(Superseded to 589283302)

$68.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539111976

Bolt 3/8-16 X 25/8 Thd Frm

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

Washer 5/16 Sae Flt
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539991046

Hcs 5/16-18 X 2 1/2

$4.99

$

In Stock, Qty 8

0

19

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

Hcs 5/16-18 X 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539977761

Hcs 1/4-20 X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110674

Screw 10-12 X 1 1/4 Wsh Hd

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539119124

Nut 7/16-14 Hex Nyloc

$

$

Not available

24

Husqvarna 522924201

Swivel

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 521938101

Link, Front Suspension

$

$

Not available

26

Husqvarna 515988101

Spacer 1/2 Od X 1 1/2
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

Grommet, Bumper

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 539104411

Knob W/Stud
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539109554

Washer 1/2 Flt

$

$

Not available

30

Husqvarna 539101341

Hcs 3/8-16 X 3

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976938

Hcs 5/16-18 X 2 1/4

$3.99

$

In Stock, Qty 5

0

33

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 539101721

Hcs 5/16-18 X 2 3/4

$4.99

$

In Stock, Qty 16

0

35

Husqvarna 539976989

#4 Hairpin

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102526

Pin, Lift

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990055

Washer 1/4 Flt Sae

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976978

Nut 1/4-20 Hex Nyloc
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 516016402

Support, Corner Org

$

$

Not available

40

Husqvarna 539111786

Rhssnb 1/4-20 X 5/8

$1.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990598

Washer 1/4 Flat Zd

$

$

Not available

42

Husqvarna 539990316

Rhsnb 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 516001803

Frame, Rear Org

$169.99

$

Usually ships in 3-10 days

0
