EZ 4824 BF (968999697) - Husqvarna 48" Zero-Turn Mower (2008-08) Chassis / Frame Parts Diagram

48" Zero-Turn Mower

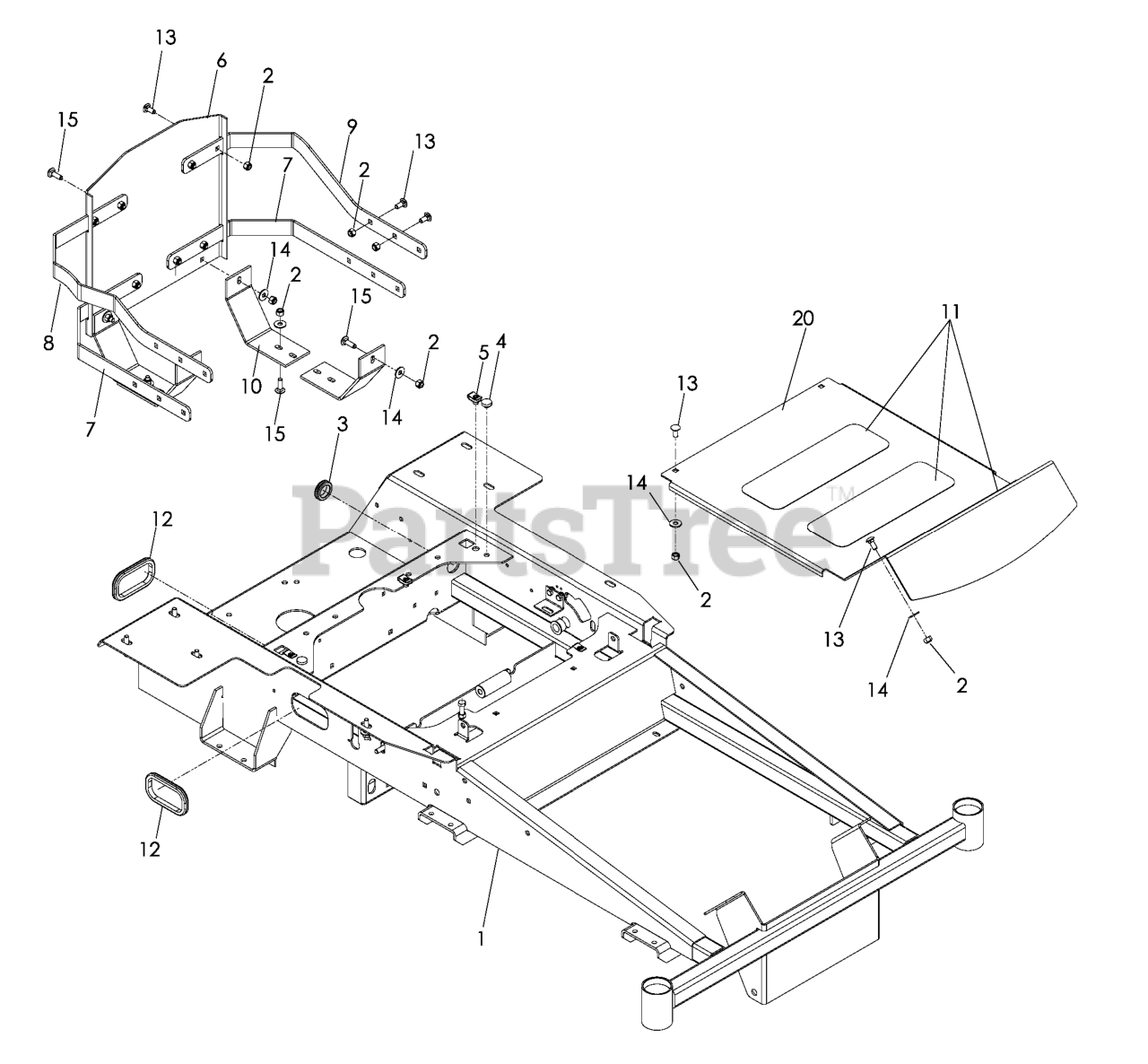

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539112798

FRAME W/DECALS #

$

$

Not available

Husqvarna 965885601

FRAME W/DECALS

$

$

Not available

2

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

5

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539106959

ENGINE GUARD

$

$

Not available

7

Husqvarna 539112780

REAR GUARD STRAP, LOWER

$

$

Not available

8

Husqvarna 539112781

REAR GUARD STRAP, UPPER RIGHT

$

$

Not available

9

Husqvarna 539112782

REAR GUARD STRAP, UPPER LEFT

$

$

Not available

10

Husqvarna 539112783

SKID PLATE

$

$

Not available

11

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 12

0

12

Husqvarna 539107116

GROMMET

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available

16

Husqvarna 539112228

FLOOR PAN

$

$

Not available
