EZ 4824 TF BF (966659502-01) - Husqvarna 48" Zero-Turn Mower (2012-06) STEERING Parts Diagram

48" Zero-Turn Mower

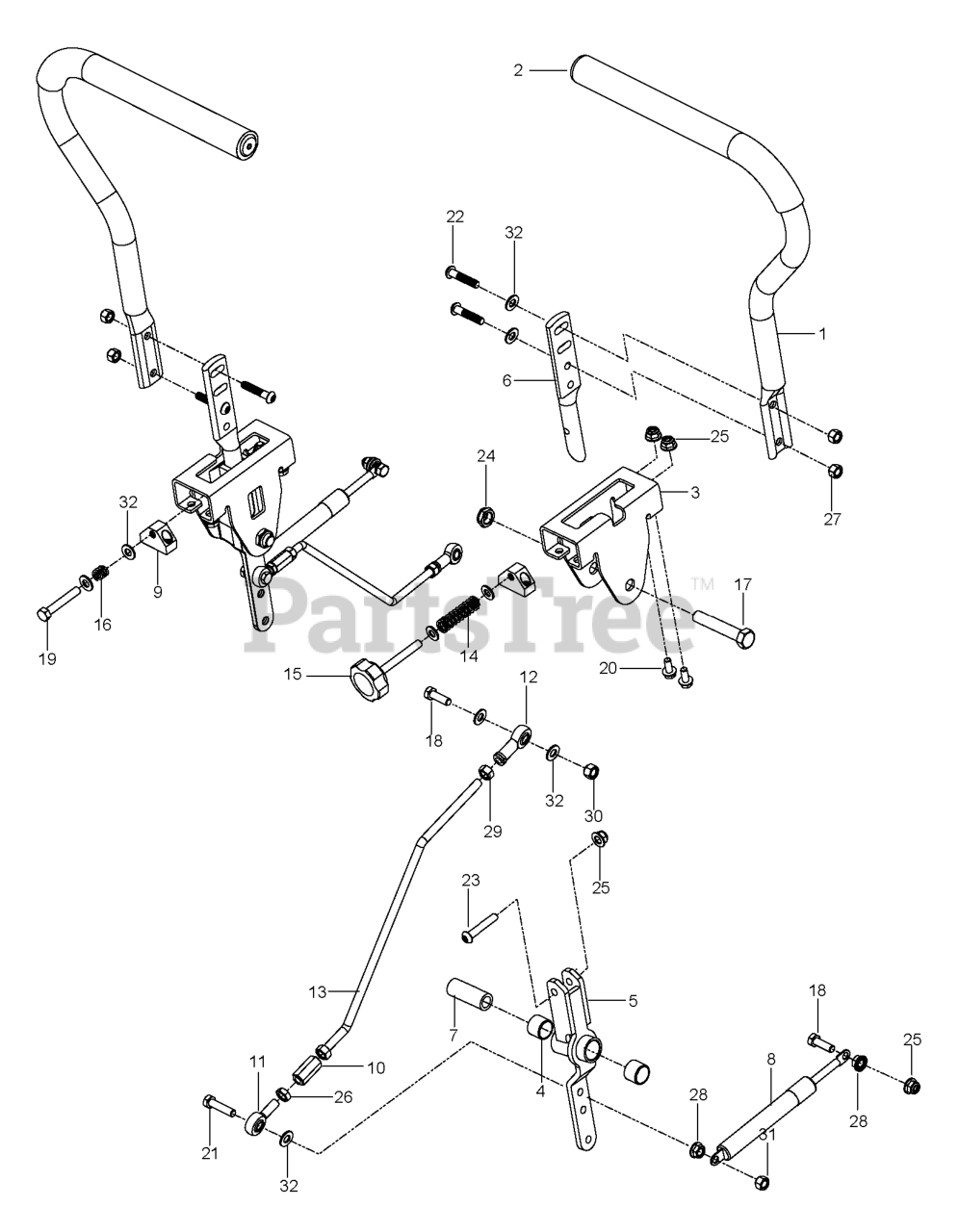

STEERING Parts Diagram

  • Title

13

Husqvarna 539131799

KNOB
(Superseded to 596400701)

$11.99

$

In Stock, Qty 15

0

15

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$10.99

$

In Stock, only 1 left!

0

2

Husqvarna 539122635

GRIP, FOAM (GROUND) 15
(Superseded to 539130894)

$7.99

$

In Stock, only 2 left!

0

24

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 539102845

SPRING

$3.49

$

In Stock, Qty 5

0

16

Husqvarna 539116690

RP.ROD.END.LH
(Superseded to 588692502)

$13.99

$

In Stock, only 1 left!

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 585986001

NYLOCK.NUT.5/16-18 BLACK
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 576850301

SPRING COMPRESSION 2.0

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 578296402

SCREW BUTTONHEAD 5/16-18X1-1/2

$5.99

$

In Stock, only 3 left!

0

20

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577251801

BLOCK.TRACKING

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990223

NUT 5/16F

$

$

Not available

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

17

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

1

Husqvarna 579090901

LEVER ASSEMBLY

$

$

Not available

18

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

4

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$28.99

$

In Stock, only 1 left!

0

7

Husqvarna 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$13.99

$

In Stock, Qty 15

0

6

Husqvarna 576140301

LEVER CONTROL PIVOT

$26.99

$

In Stock, only 4 left!

0

5

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 11

0

28

Husqvarna 539990585

NUT 5/16C WHIZ

$

$

Not available

3

Husqvarna 539122636

END PLUG 15/16 (BLACK)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 522656101

ROD, MOTION CONTROL

$

$

Not available

30

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102720

DAMPENER

$79.99

$

In Stock, Qty 14

0

21

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0
