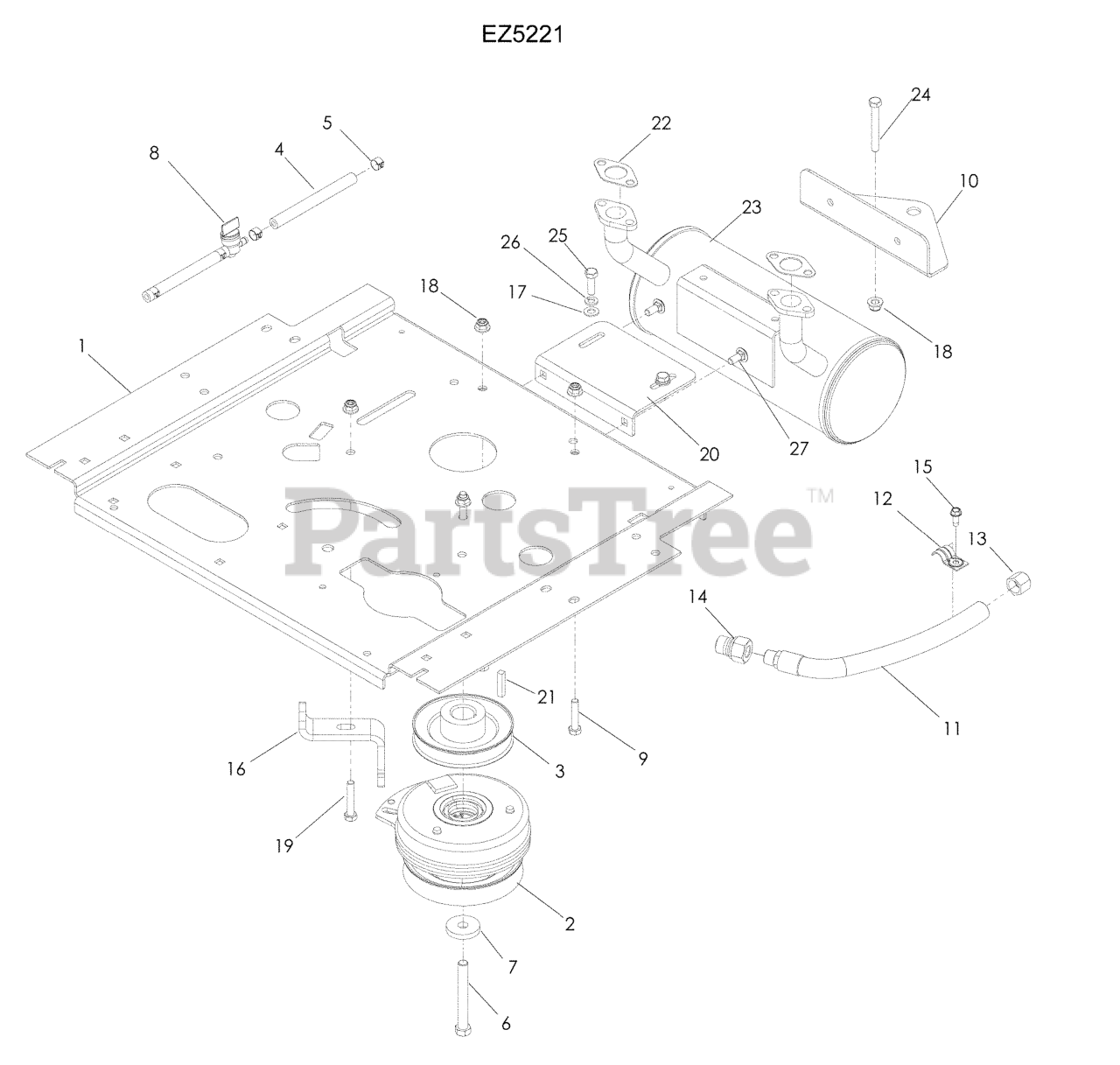

EZ 5221 (965880501) - Husqvarna 52" Zero-Turn Mower (2009-01) Engine Plate Parts Diagram

52" Zero-Turn Mower

Engine Plate Parts Diagram

  • Title

1

Husqvarna 516007502

PLATE, ENGINE, BLACK

$

$

Not available

2

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$319.99

$

In Stock, Qty 6

0

3

Husqvarna 539109639

PULLEY

$

$

Not available

4

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$7.99

$

In Stock, Qty 12

0

7

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$7.99

$

In Stock, Qty 20+

0

8

Husqvarna 539916325

FUEL VALVE

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.99

$

Usually ships in 3-10 days

0

10

Husqvarna 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 18

0

11

Husqvarna 539101362

OIL DRAIN HOSE

$34.99

$

In Stock, only 2 left!

0

12

Husqvarna 539101363

CLAMP

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 539101364

DRAIN CAP

$

$

Not available

14

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

15

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 522459702

STOP, CLUTCH BLK

$

$

Not available

17

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

20

Husqvarna 525295102

BRACKET MUFFLER, BLK

$

$

Not available

21

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539108199

EXHAUST GASKET - KAW

$

$

Not available

23

Husqvarna 539105897

MUFFLER KAWASAKI GEN II

$

$

Not available

24

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

25

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0
