EZ 5224 (966038301-00) - Husqvarna 52" Zero-Turn Mower (2010-06) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

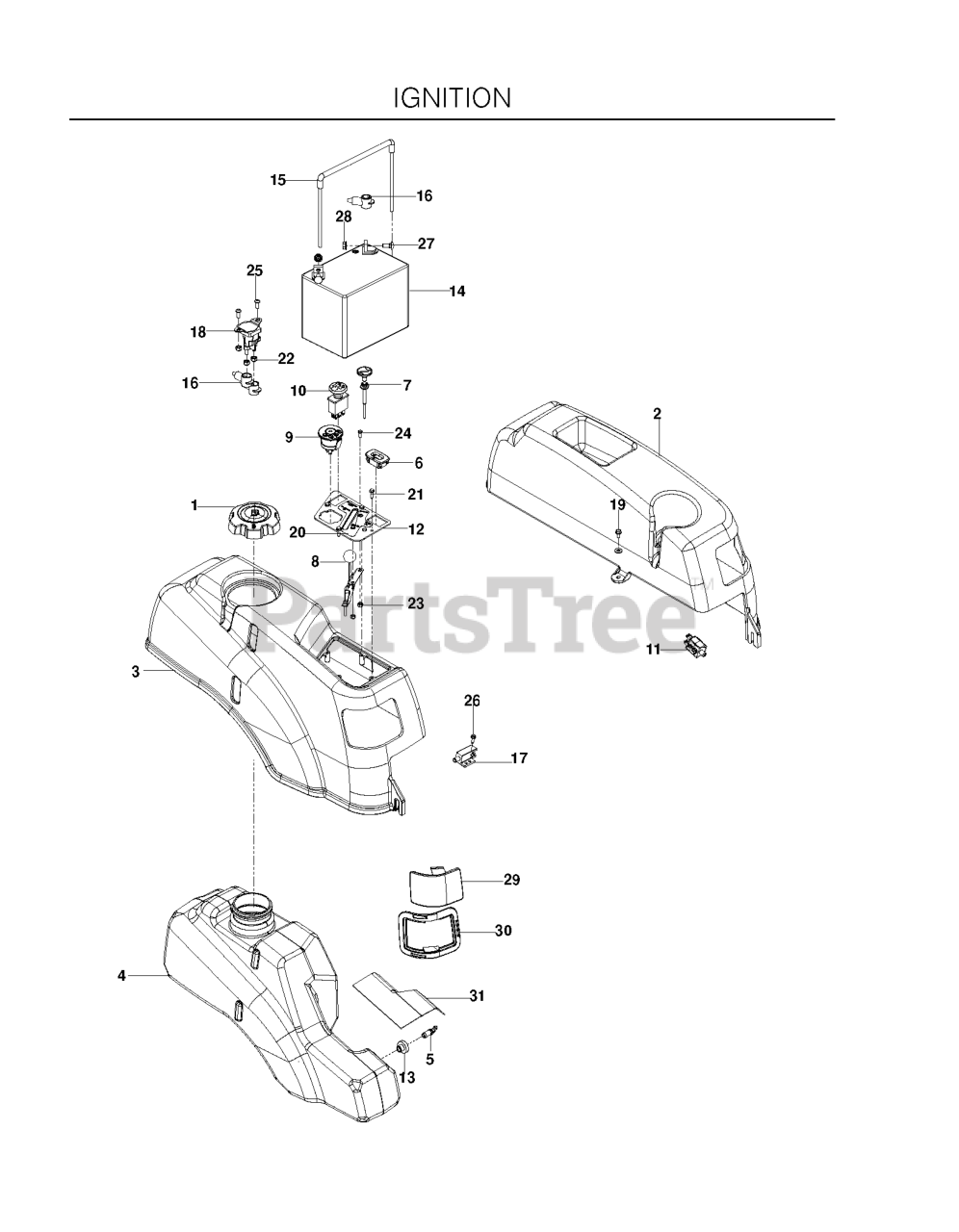

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$148.99

$

In Stock, Qty 15

0

30

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

Note: LT

$5.99

$

In Stock, only 4 left!

0

25

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.49

$

In Stock, only 1 left!

0

29

Husqvarna 539110056

LENS, COLORED LEFT
(Superseded to 539110457)

Note: LT

$6.99

$

In Stock, Qty 6

0

7

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

$62.99

$

In Stock, only 3 left!

0

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$11.99

$

In Stock, Qty 12

0

15

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, only 2 left!

0

22

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

16

Husqvarna 539116400

TERMINAL COVER-SM

$

$

Not available

9

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

29

Husqvarna 539110057

LENS, COLORED RIGHT
(Superseded to 539110453)

Note: RT

$7.99

$

In Stock, Qty 9

0

2

Husqvarna 539130374

FENDER, LT

Note: LT

$96.99

$

In Stock, only 1 left!

0

11

Husqvarna 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

30

Husqvarna 539110451

RT HEADLIGHT RIM GREY

Note: RT

$5.99

$

In Stock, Qty 7

0

8

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB
(Superseded to 597524002)

$56.99

$

In Stock, only 3 left!

0

20

Husqvarna 539112740

DECAL, IGNITION CONSOLE

$

$

Not available

18

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539130375

RP.FENDER, RT

Note: RT

$

$

Not available

21

Husqvarna 539990411

HCS #10-24 X 1/2

$

$

Not available

19

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 522524801

TANK, FUEL

$

$

Not available

6

Husqvarna 576179401

HOUR METER

$31.99

$

In Stock, only 2 left!

0

12

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$45.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, only 2 left!

0

13

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539990585

NUT 5/16C WHIZ

$

$

Not available

26

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$

$

Not available

5

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 522559101

SHIELD, HEAT

$51.99

$

In Stock, only 1 left!

0

24

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD
(Superseded to 596917001)

$3.49

$

In Stock, only 2 left!

0
