EZ 5224 (968999699) - Husqvarna 52" Zero-Turn Mower (2007-07) CHASSIS / FRAME Parts Diagram

52" Zero-Turn Mower

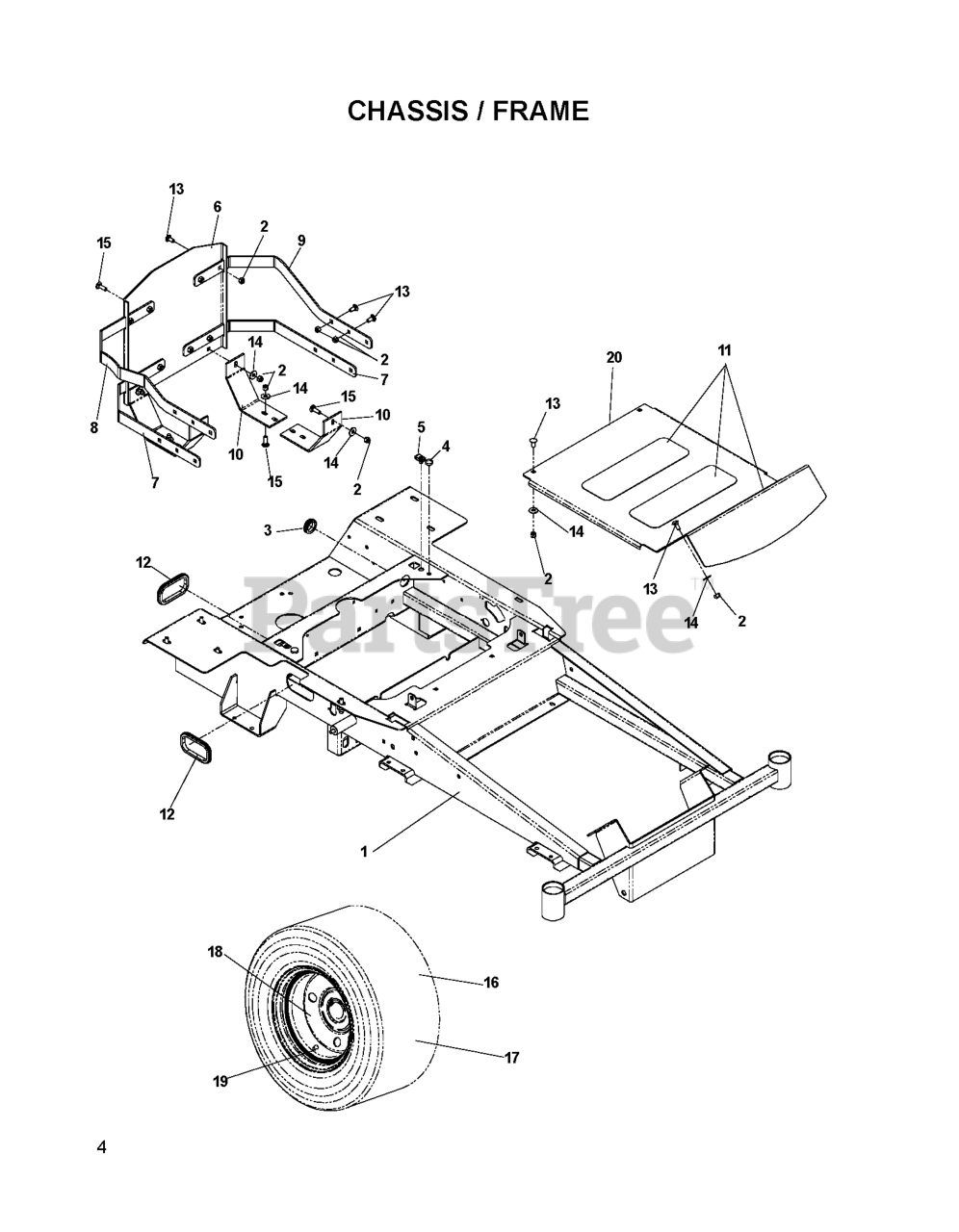

CHASSIS / FRAME Parts Diagram

  • Title

7

Husqvarna 539112780

REAR GUARD STRAP, LOWER

$

$

Not available

9

Husqvarna 539112782

REAR GUARD STRAP, UPPER LEFT

$

$

Not available

15

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112228

FLOOR PAN

$

$

Not available

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539107116

GROMMET

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 13

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

17

Husqvarna 539130822

TIRE, 18 X 9.5 - 8

$

$

Not available

5

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 539130820

TIRE/WHEEL ASM 18X9.5-8
(Superseded to 579753401)

$227.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112217

RIM.8X7.W/8".OFFSET.SILVER.ZTR

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112781

REAR GUARD STRAP, UPPER RIGHT

$

$

Not available

1

Husqvarna 539112798

FRAME W/DECALS #

$

$

Not available

2

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 539112783

SKID PLATE

$

$

Not available

19

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 19

0
