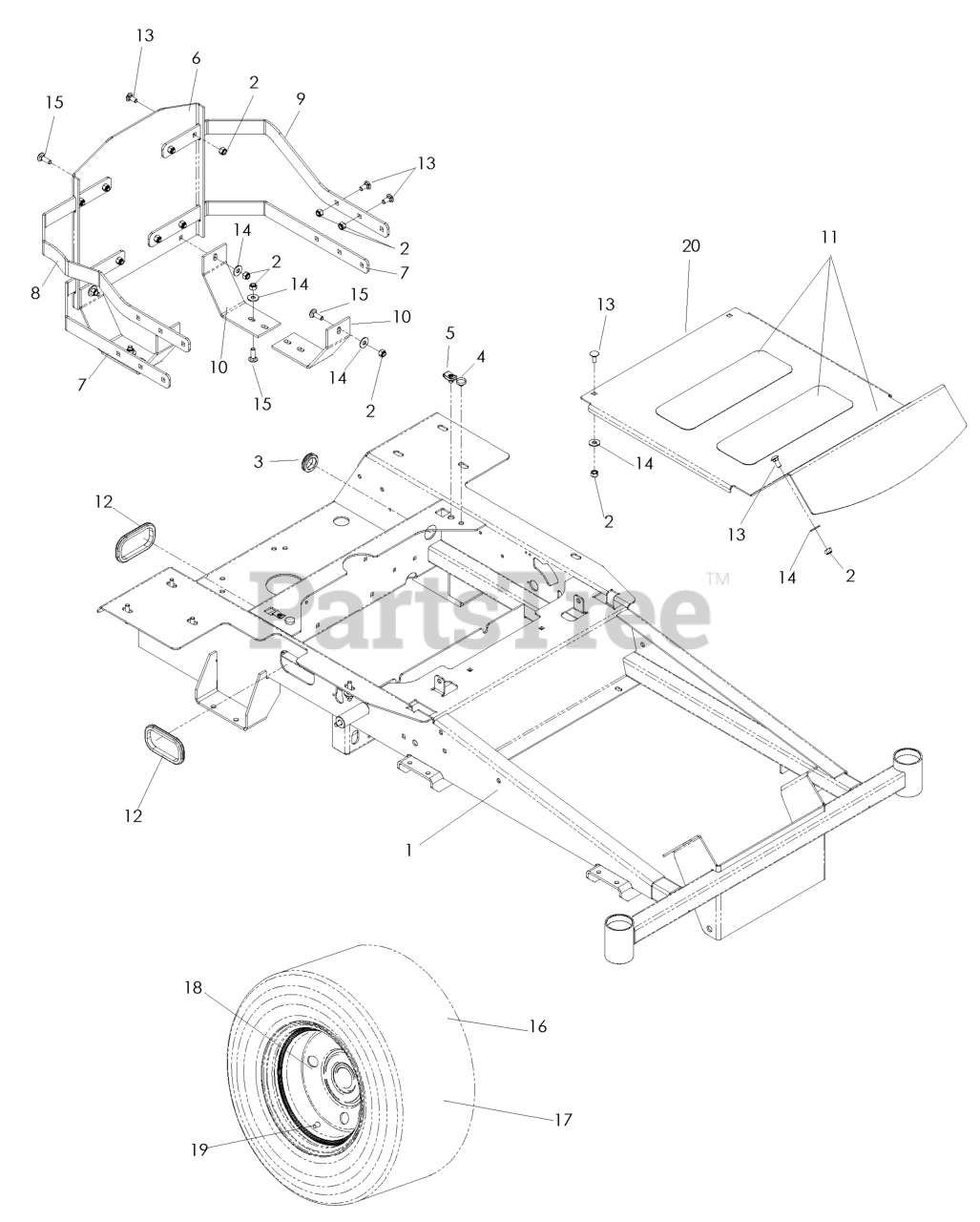

EZ 5224 BF (968999766) - Husqvarna 52" Zero-Turn Mower (2008-08) Chassis / Frame Parts Diagram

52" Zero-Turn Mower

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 965885601

FRAME W/DECALS

$

$

Not available

2

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

5

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539106959

ENGINE GUARD

$

$

Not available

7

Husqvarna 539112780

REAR GUARD STRAP, LOWER

$

$

Not available

8

Husqvarna 539112781

REAR GUARD STRAP, UPPER RIGHT

$

$

Not available

9

Husqvarna 539112782

REAR GUARD STRAP, UPPER LEFT

$

$

Not available

10

Husqvarna 539112783

SKID PLATE

$

$

Not available

11

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 12

0

12

Husqvarna 539107116

GROMMET

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available

16

Husqvarna 539130820

TIRE/WHEEL ASM 18X9.5-8
(Superseded to 579753401)

Note: before serial # 0749xxxxx

$227.99

$

Usually ships in 3-10 days

0

Husqvarna 539112212

TIRE ASM 18 X 8.5-8
(Superseded to 581197601)

Note: MODEL 968999692 ONLY

$

$

Not available

Husqvarna 539131996

TIRE ASM, 20X10-.8 NEG SILVER

Note: after serial # 0749xxxxx MODELS 968999658, 968999696, 968999699, 968999754, 968999766

$

$

Not available

Husqvarna 539131110

TIRE ASM, 20 X 8-8

Note: after serial # 0805xxxxx MODEL 968999657 ONLY

$

$

Not available

17

Husqvarna 539130822

TIRE, 18 X 9.5 - 8

$

$

Not available

Husqvarna 539112213

TIRE, 18 X 8.5, TURF RIDER

Note: MODEL 968999692 ONLY

$

$

Not available

Husqvarna 539131997

TIRE, 20 X 10-8

Note: after serial # 0749xxxxx MODELS 968999658, 968999696, 968999699, 968999754, 968999766

$

$

Not available

Husqvarna 539131109

TIRE 20 X 8, TURF

Note: after serial # 0805xxxxx MODEL 968999657 ONLY

$193.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112217

RIM.8X7.W/8".OFFSET.SILVER.ZTR

Note: before serial # 0749xxxxx

$113.99

$

Usually ships in 3-10 days

0

Husqvarna 539112214

RIM.8X7.SILVER.ZTR

Note: MODEL 968999692 ONLY

$

$

Not available

19

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

20

Husqvarna 539112228

FLOOR PAN

$

$

Not available
