EZ 5426 BI (968999514) - Husqvarna 54" Zero-Turn Mower (2006-06) Deck Assembly 54" Parts Diagram

54" Zero-Turn Mower

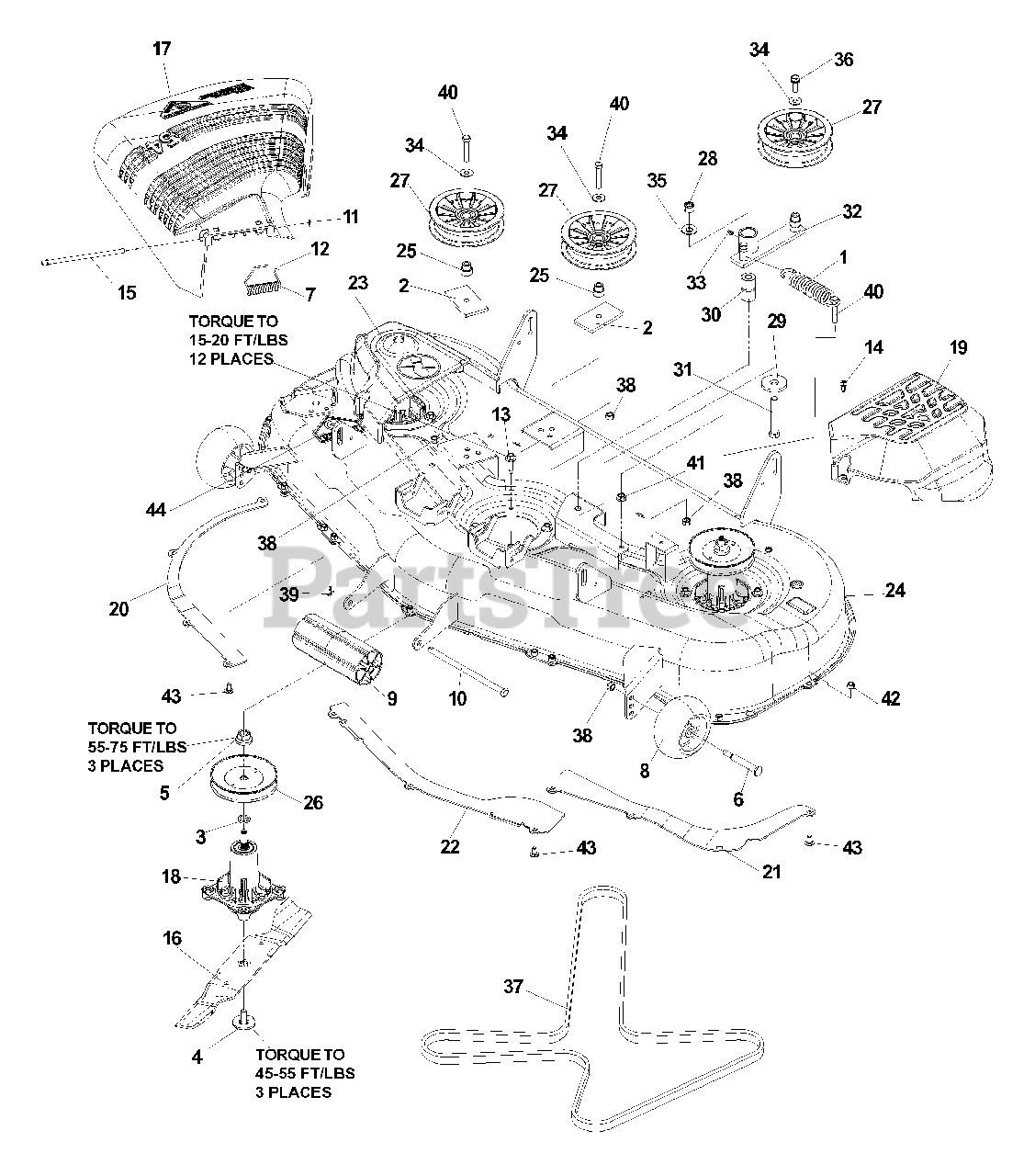

Deck Assembly 54" Parts Diagram

  • Title

1

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 20+

0

2

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

3

Husqvarna 539107520

WASHER, .675, SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532174365

BOLT, 7/16, SPEC
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107590

NUT, 9/16, CENTERLOCK, GR5
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532137644

SB, 1/2 X 2 5/8, SPEC
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539107609

SPRING, TORSION

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532133957

WHEEL, GAUGE

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 532176066

ROLLER, NOSE

$9.99

$

In Stock, Qty 20+

0

10

Husqvarna 539107613

ROD, ROLLER, NOSE, NARROW
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107626

NUT, 5/16, PUSH
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539107630

SCREW, 5/16-18 X 1 3/8, WASH HD, SPEC
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539107631

SCREW, 1/4-20 X 5/8, THDROLL, SPEC
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532131491

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532187254

BLADE
(Superseded to 532187255)

$21.99

$

In Stock, Qty 20+

0

17

Husqvarna 532187257

DEFLECTOR

$80.99

$

In Stock, Qty 20+

0

18

Husqvarna 532187292

MADNREL, GREASABLE
(Superseded to 587820301)

$44.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112058

BELT COVER, LEFT

$

$

Not available

20

Husqvarna 539112059

BAFFLE, RIGHT
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539112060

BAFFLE, LEFT
(Superseded to 532187344)

$18.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112062

BAFFLE, CENTER
(Superseded to 532187607)

$

$

Not available

23

Husqvarna 539112063

BELT COVER, RIGHT

$

$

Not available

24

Husqvarna 539112331

DECK W/DECALS

$

$

Not available

25

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

26

Husqvarna 532173436

PULLEY

$10.99

$

In Stock, Qty 20+

0

27

Husqvarna 539112196

IDLER PULLEY, NYLON
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539102243

WASHER, .65 X 2 X .25, SUPPORT

$

$

Not available

30

Husqvarna 539103427

BUSHING-PIVOT

$7.49

$

In Stock, Qty 6

0

31

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$4.99

$

In Stock, Qty 13

0

32

Husqvarna 539112198

IDLER ARM

$121.99

$

In Stock, only 1 left!

0

33

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990550

WASHER, .562 X 1.38 X 14

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990582

HCS, 3/8-16 X 1, GR5, WHIZLK

$

$

Not available

37

Husqvarna 539112333

BELT

$

$

Not available

38

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 539990588

HCS, 3/8-16 X 2, GR5

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 539990613

NUT, 3/8-16, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990799

RHSNB, 5/16-18 X 5/8, GR5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539913010

DECAL, WARNING

$4.99

$

In Stock, only 1 left!

0
