EZ 6124 KOA (968999505) - Husqvarna 61" Zero-Turn Mower (2006-06) Deck Assembly 61" Parts Diagram

61" Zero-Turn Mower

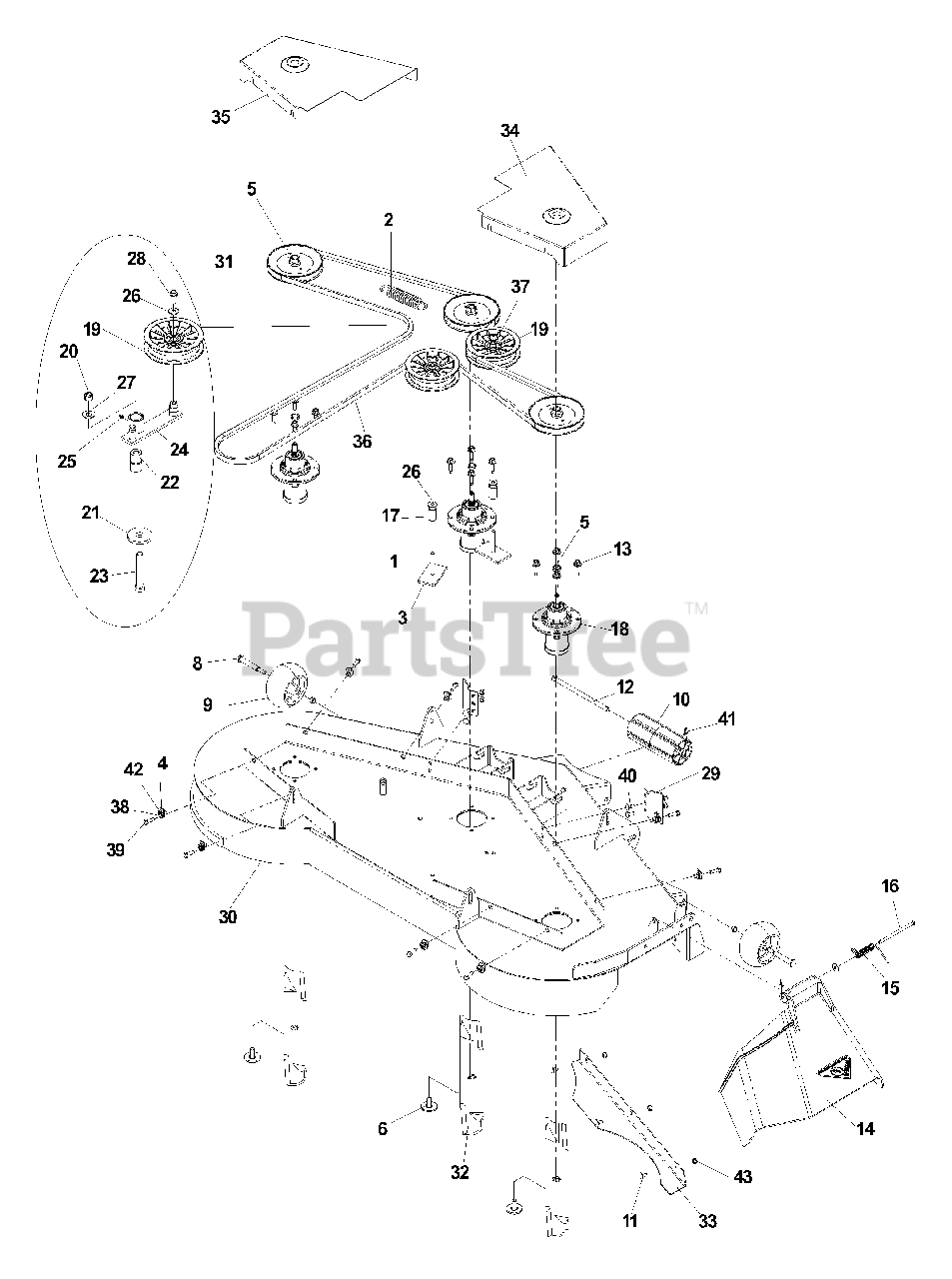

Deck Assembly 61" Parts Diagram

  • Title

1

Husqvarna 539101341

HCS, 3/8-16 X 3, GR5

$5.99

$

In Stock, only 1 left!

0

2

Husqvarna 539103256

SPRING, EXTENSION

$13.99

$

In Stock, only 2 left!

0

3

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

4

Husqvarna 539104763

NUT, 5/16-18, RETAINER-U TYPE

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539107520

WASHER, .675, SPACER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532174365

BOLT, 7/16, SPEC
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

7

Husqvarna 539107590

NUT, 9/16, CENTERLOCK, GR5
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532137644

SB, 1/2 X 2 5/8, SPEC
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532133957

WHEEL, GAUGE

$14.99

$

In Stock, Qty 20+

0

10

Husqvarna 532176066

ROLLER, NOSE

$14.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990799

RHSNB, 5/16-18 X 5/8, GR5
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 539107613

ROD, ROLLER, NOSE, NARROW
(Superseded to 532179127)

$6.99

$

In Stock, Qty 20+

0

13

Husqvarna 539107630

SCREW, 5/16-18 X 1 3/8, WASH HD, SPEC
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

14

Husqvarna 539110734

DISCHARGE CHUTE

$56.99

$

In Stock, only 2 left!

0

15

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 539110736

PIN-CLEVIS, 5/16 DIA. X 5.19
(Superseded to 595935501)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539112169

IDLER BUSHING
(Superseded to 596841501)

$9.49

$

In Stock, Qty 20+

0

18

Husqvarna 539112170

HOUSING

$85.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112196

IDLER PULLEY, NYLON
(Superseded to 539132728)

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539102243

WASHER, .65 X 2 X .25, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, Qty 13

0

22

Husqvarna 539103427

BUSHING-PIVOT

$11.99

$

In Stock, Qty 19

0

23

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$6.99

$

In Stock, Qty 7

0

24

Husqvarna 539112198

IDLER ARM

$34.99

$

In Stock, only 2 left!

0

25

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990517

WASHER, 3/8
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990550

WASHER, .562 X 1.38 X 14

$

$

Not available

28

Husqvarna 539990582

HCS, 3/8-16 X 1, GR5, WHIZLK
(Superseded to 596583101)

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 539112248

DECK STOP

$

$

Not available

30

Husqvarna 539114049

DECK W/DECALS
(Superseded to 539132747)

$

$

Not available

31

Husqvarna 539113300

PULLEY

$26.99

$

In Stock, Qty 20+

0

32

Husqvarna 539113312

BLADE, 21"

$28.99

$

In Stock, Qty 20+

0

33

Husqvarna 539113317

CONFINEMENT PLATE

$37.99

$

In Stock, only 2 left!

0

34

Husqvarna 539114055

BELT SHIELD, RIGHT

$

$

Not available

35

Husqvarna 539114056

BELT SHIELD, LEFT

$

$

Not available

36

Husqvarna 539113343

BELT

$

$

Not available

37

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990187

WASHER, 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

39

Husqvarna 539990209

HCS, 5/16-18 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990316

RHSNB, 5/16-18 X 3/4, GR5
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

42

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0
