EZ2500 A (EZEJ) - Honda Generator, Made in Japan (SN: EZEJ-1000001 - EZEJ-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

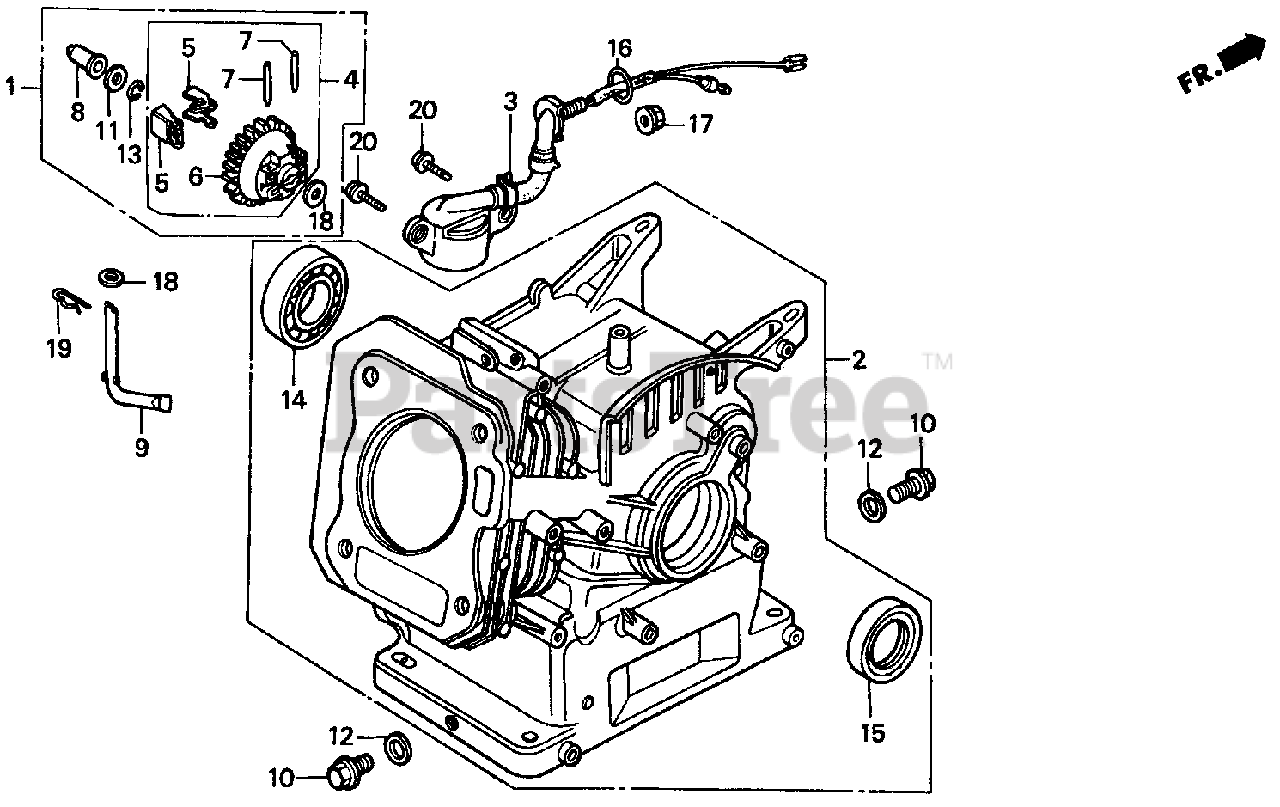

CYLINDER Parts Diagram

  • Title

1

Honda 06165-ZE1-000

GOVERNOR KIT

$21.99

$

Usually ships in 3-6 days

0

2

Honda 12000-ZH8-406

SEE PART DETAILS - SUP; CYLINDER ASSY. (811)

Note: Use up to Engine SN 7438282.

$

$

Currently unavailable

2

Honda 12000-ZH8-416

SEE PART DETAILS - SUP; CYLINDER ASSY. (811)

Note: Use from Engine SN 7438283.

$

$

Currently unavailable

3

Honda 15510-ZE1-013

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 4367320.

$

$

Not available

3

Honda 15510-ZE1-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use up to Engine SN 5640312.

$75.99

$

In Stock, only 2 left!

0

3

Honda 15510-ZE1-033

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

$75.99

$

In Stock, only 2 left!

0

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

$19.99

$

In Stock, Qty 5

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$28.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, Qty 8

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$14.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

11

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, Qty 17

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 20+

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205)

$28.99

$

In Stock, only 2 left!

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$11.99

$

In Stock, Qty 20+

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$11.99

$

In Stock, Qty 20+

0

16

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$4.49

$

In Stock, Qty 20+

0

17

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 19

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
