EZ3500 A (EZEK) - Honda Generator, Made in Japan (SN: EZEK-1000001 - EZEK-1029999) CYLINDER Parts Diagram

Generator, Made in Japan

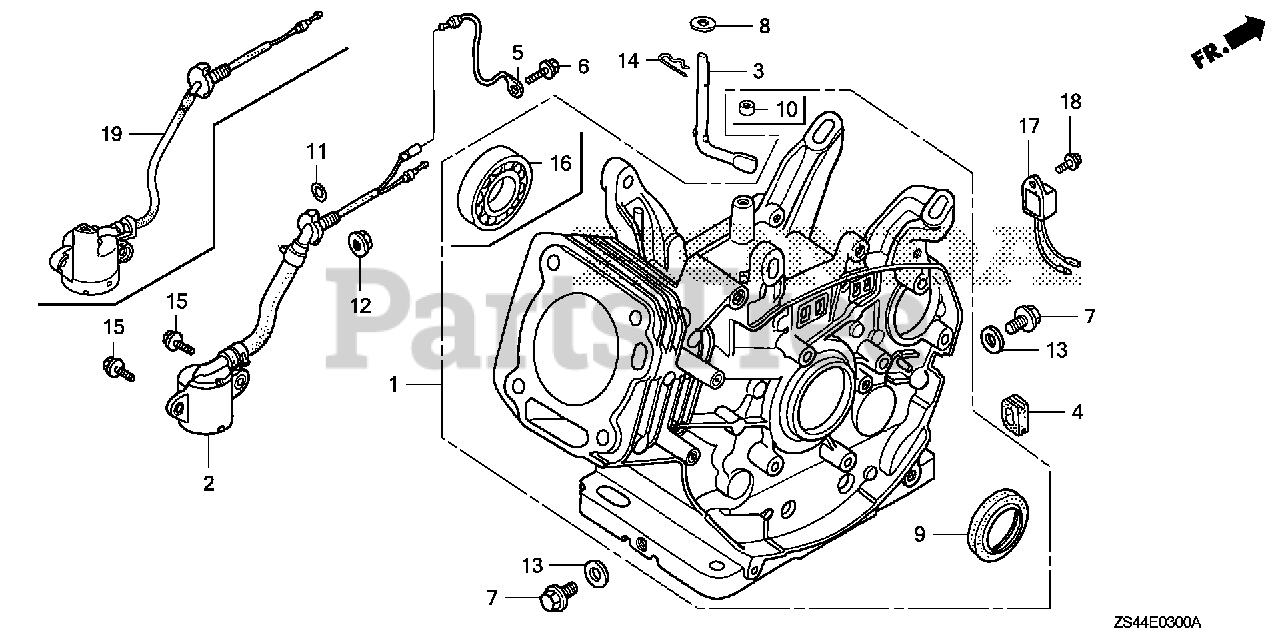

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE2-406

CYLINDER ASSY. (ALERT)

$779.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-043)

Note: Use up to Engine SN 3566259.

$69.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-053

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 3566259.

$69.99

$

In Stock, only 2 left!

0

3

Honda 16541-ZE2-010

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

4

Honda 31512-ZE2-000

GROMMET, WIRE

$4.49

$

Usually ships in 3-6 days

0

5

Honda 32197-ZE2-003

SUB-HARNESS (NOT AVAILABLE)

Note: Use up to Engine SN 3566259.

$

$

Not available

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 3566259.

$2.49

$

In Stock, Qty 20+

0

7

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$5.99

$

In Stock, only 2 left!

0

8

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 91201-890-003

OIL SEAL (30X46X8)

$12.99

$

In Stock, only 1 left!

0

11

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-10000

NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

13

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

14

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 3 left!

0

15

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0

17

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 3684579.

$57.99

$

In Stock, only 3 left!

0

17

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use from Engine SN 3684579.

$57.99

$

In Stock, only 3 left!

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 3684579.

$2.49

$

In Stock, Qty 20+

0

19

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-043)

Note: Use from Engine SN 3566260 to 3674320.

$69.99

$

In Stock, only 2 left!

0

19

Honda 15510-ZE2-053

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use from Engine SN 3566260.

$69.99

$

In Stock, only 2 left!

0
