EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Engine & Engine Mount Assemblies Parts Diagram

Zero-Turn Mower, 21hp Kubota

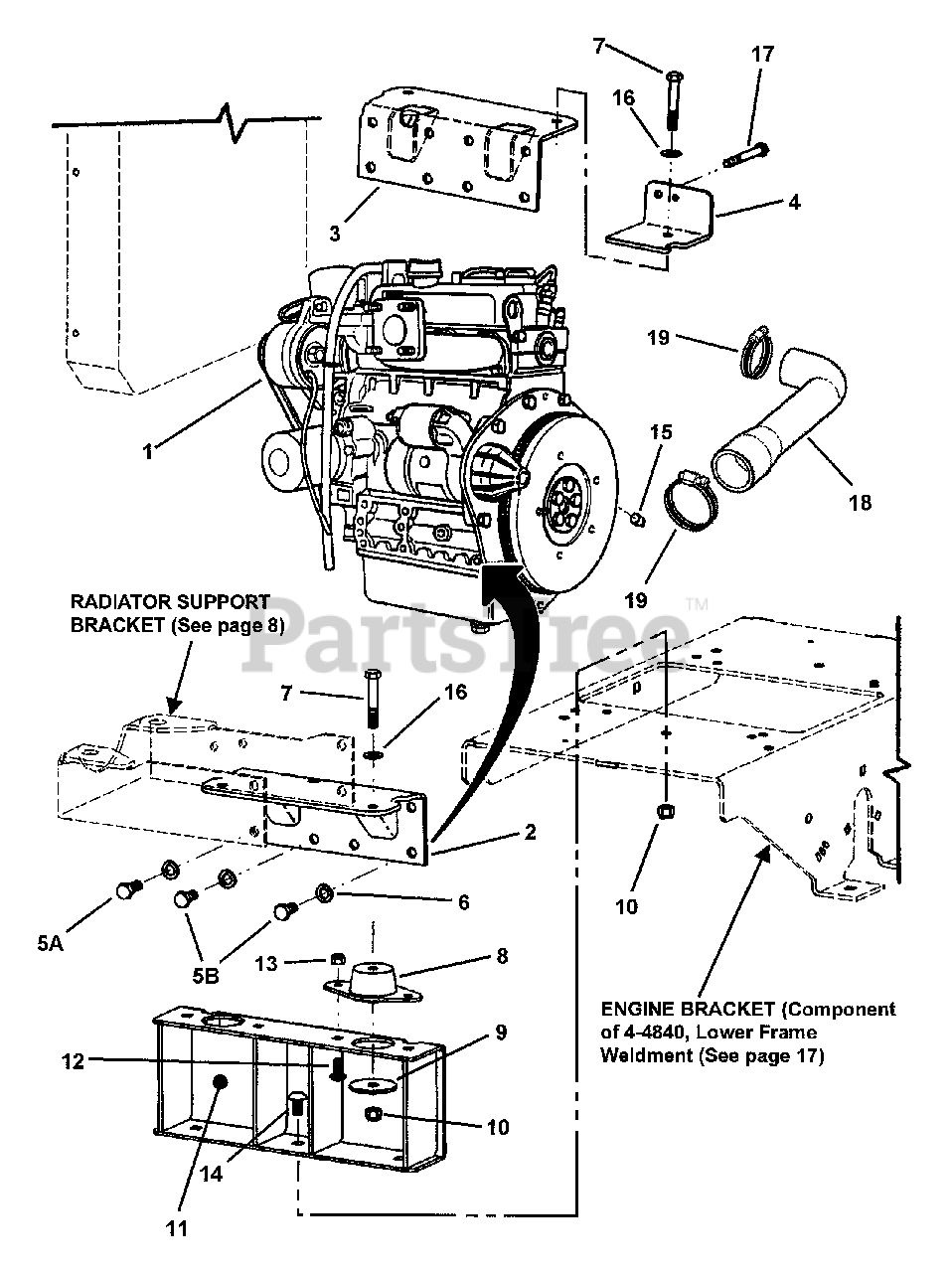

Engine & Engine Mount Assemblies Parts Diagram

  • Title

1

ENGINE, 21 HP Kubota Diesel

Note: (Kubota Model D722B-I/D 722EB-1)

$

$

Not available

ENGINE, 23 HP Kubota Gas

Note: (Kubota Model WG750ELP-1)

$

$

Not available

2

Snapper 7045351

MOUNT, Engine, Left Hand
(Superseded to 7045351YP)

$102.99

$

Usually ships in 2-12 days

0

3

Snapper 7045352

MOUNT, Engine, Right Hand
(Superseded to 7045352YP)

$131.99

$

Usually ships in 2-12 days

0

4

Snapper 7041826

BRACKET, Fuel Filter

$

$

Currently unavailable

5A

Snapper 7091935

SCREW, M10-1.25 x 25mm Hex Head Cap
(Superseded to 7091935YP)

$2.99

$

Usually ships in 2-12 days

0

5B

Snapper 7091934

SCREW, M10-1.25 x 20mm Hex Head Cap
(Superseded to 7091934YP)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

7

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7045263

MOUNT, Isolator

$

$

Not available

9

Snapper 7045265

WASHER, Snubbing
(Superseded to 7045265YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

11

Snapper 7045353

SUPPORT, Lower Channel
(Superseded to 7045353YP)

$193.99

$

Usually ships in 2-12 days

0

12

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage, Grade 5

$

$

Not available

15

Snapper 7029039

PLUG, 1/4 Pipe
(Superseded to 7029039YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091944

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, Grade 5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

18

Snapper 7072108

HOSE, Air Intake, 23HP Kubota Gasoline
(Superseded to 7072108YP)

$64.99

$

Usually ships in 2-12 days

0

19

Snapper 7012332

CLAMP, 2"
(Superseded to 7012332YP)

$6.99

$

In Stock, only 3 left!

0
