EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) 34 Inch Deck Parts Diagram

34" Zero-Turn Mower

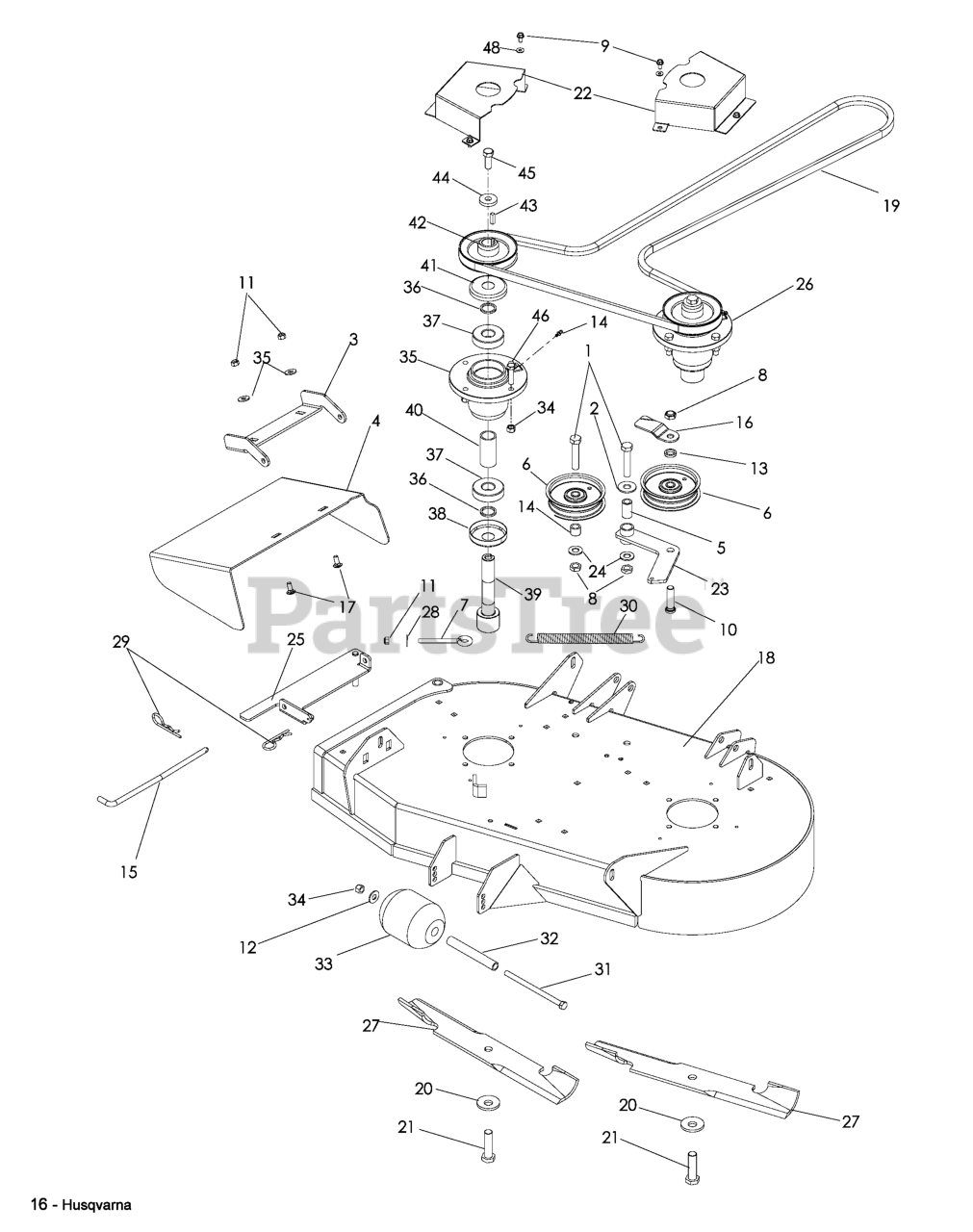

34 Inch Deck Parts Diagram

  • Title

1

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 522032401

HINGE, 34-44, ORANGE

$

$

Not available

4

Husqvarna 522032501

CHUTE, 34 ORANGE
(Superseded to 539114528)

$319.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539115220

BUSHING DIXON 1080

$

$

Not available

6

Husqvarna 539115278

PULLEY IDLER

$

$

Not available

7

Husqvarna 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, Qty 12

0

8

Husqvarna 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 539115647

STUD 1/2-13 X 2

$

$

Not available

11

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539115948

HD PULLEY SPACER

$

$

Not available

14

Husqvarna 539116010

BUSHING

$

$

Not available

15

Husqvarna 539116225

DEFLECTOR PIN

$

$

Not available

16

Husqvarna 539116351

BELT GUARD BLK

$

$

Not available

17

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 522420901

DECK, EZF, W/DECALS 34"

$

$

Not available

19

Husqvarna 539117811

BELT

$

$

Not available

20

Husqvarna 539117838

BLADE WASHER

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539117839

BLADE BOLT

$

$

Not available

22

Husqvarna 539117886

PULLEY GUARD 34

$

$

Not available

23

Husqvarna 539117888

IDLER ARM WLDT., BLACK

$

$

Not available

24

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 522032301

MOUNT, DEFLECTOR, ORANGE

$

$

Not available

26

Husqvarna 539117955

SPINDLE ASM.

$

$

Not available

27

Husqvarna 539118039

BLD 34 HI-LIFT FUSION

$

$

Not available

28

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 539121221

STAINLESS COTTER

$

$

Not available

30

Husqvarna 539120920

SPRING, DECK BELT
(Superseded to 596989801)

$9.49

$

In Stock, only 1 left!

0

31

Husqvarna 539121478

BOLT 3/8 X 6 GR5

$

$

Not available

32

Husqvarna 539122574

BUSHING

$

$

Not available

33

Husqvarna 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

34

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 539117968

DECK HUB MACHINED

$

$

Not available

36

Husqvarna 539115326

HUB PULLEY SPACER

$

$

Not available

37

Husqvarna 539119260

BEARING - 6305 - 2RS

$

$

Not available

38

Husqvarna 539117954

TRASH GUARD
(Superseded to 539119811)

$17.99

$

In Stock, only 1 left!

0

39

Husqvarna 539117953

SHAFT SPINDLE

$

$

Not available

40

Husqvarna 539117969

SPACER

$

$

Not available

41

Husqvarna 539119811

TRASH GUARD

$17.99

$

In Stock, only 1 left!

0

42

Husqvarna 539119264

PULLEY

$

$

Not available

43

Husqvarna 539115387

KEY - 1/4 X .88

$

$

Not available

44

Husqvarna 539115636

WASHER .525 X 1.375 X .25

$11.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

In Stock, Qty 5

0

46

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

47

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0
